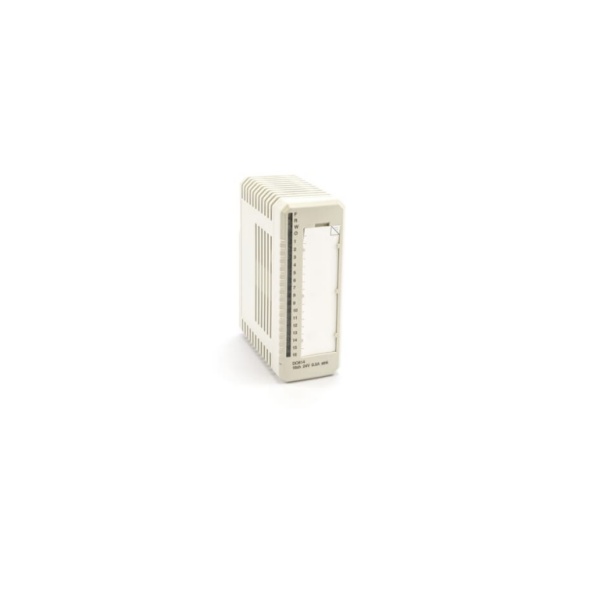

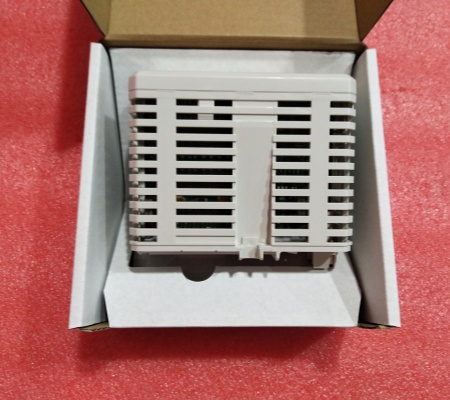

ABB DO814 3BUR001455R1 Digital Output Module

The DO814 is a 16 channel 24 V digital output module with current sinking for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous current sinking is 0.5 A. The outputs are protected against short circuits and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group.

Each output channel consists of a short circuit and over temperature protected low side switch, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.

Detailed data

Isolation Group isolated from ground

Current limiting Short circuit protection Current limited output

Maximum field cable length 600 m (656 yd)

Rated insulation voltage 50 V

Dielectric test voltage 500 V AC

Power dissipation Typical 2.1 W

Current consumption +5 V module bus 80 mA

Operating temperature 0 to +55 °C (+32 to +131 °F), certified for +5 to +55 °C

Storage temperature -40 to +70 °C (-40 to +158 °F)

Pollution degree 2, IEC 60664-1

Corrosion protection ISA-S71.04: G3

Relative humidity 5 to 95 %, non-condensing

Maximum ambient temperature 55 °C (131 °F), for vertical installation in compact MTU 40 °C (104 °F)

Degree of protection IP20 (according to IEC 60529)

Mechanical operating conditions IEC/EN 61131-2

EMC EN 61000-6-4, EN 61000-6-2

Overvoltage category IEC/EN 60664-1, EN 50178

Frequently asked questions about the product are as follows:

-What is the ABB DO814 3BUR001455R1?

It is an integral part of the ABB protection or automation portfolio. ABB produces a range of devices for industrial control, protection relays and automation systems. The "DO" part of the model number indicates that it is related to digital output modules, while the "3BUR" points to a specific product line.

-What is the main function of this device?

This device is a digital output (DO) module, which can be used to control actuators or other devices within a control system. It is also part of a larger protection system for electrical equipment, providing output signals to control circuit breakers, alarms or other control mechanisms.

-What are the safety precautions when using ABB equipment?

First, ensure proper grounding and electrical protection. Remember to follow the installation and maintenance procedures in the user manual. Ensure that only qualified personnel perform installation and maintenance.
