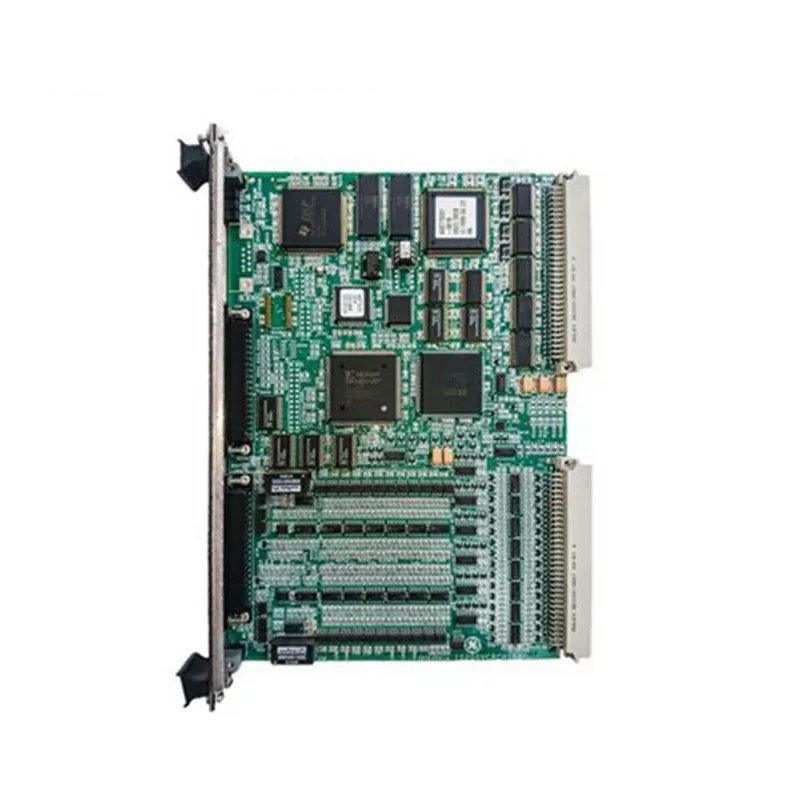

The GE IS200WETBH1ABA circuit board is a critical component of the Mark VI control system used in gas and steam turbines. It performs specific control functions, processes data and signals, and integrates with other system modules. Expert installation and configuration are required for proper operation.

Key Features

• Core control module for the Mark VI system
• Executes specific control tasks
• Processes data and signals
• Compatible with Mark VI control system
• Requires expert knowledge for installation

General Specifications

• Part Number: IS200WETBH1ABA
• Manufacturer: General Electric (GE)
• Product Series: Speedtronic Mark VI
• Product Type: Printed Circuit Board (PCB)

Function

• Part of the Speedtronic series, designed to improve the efficiency of gas and steam turbine systems.

Application

• Used within the Mark VI control system for monitoring and controlling various turbine parameters.

Electrical Specifications

• Input Voltage: 24V DC
• Output Type: Digital
• Communication Protocol: Modbus

Environmental Specifications

• Operating Temperature Range: -40°C to 75°C (-40°F to 167°F)

Physical Dimensions

• Length: 120mm (4.72 in)
• Width: 80mm (3.15 in)
• Height: 40mm (1.57 in)
