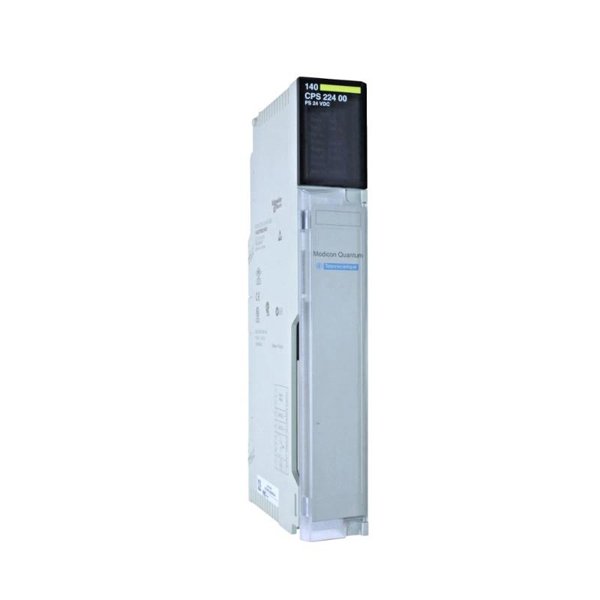

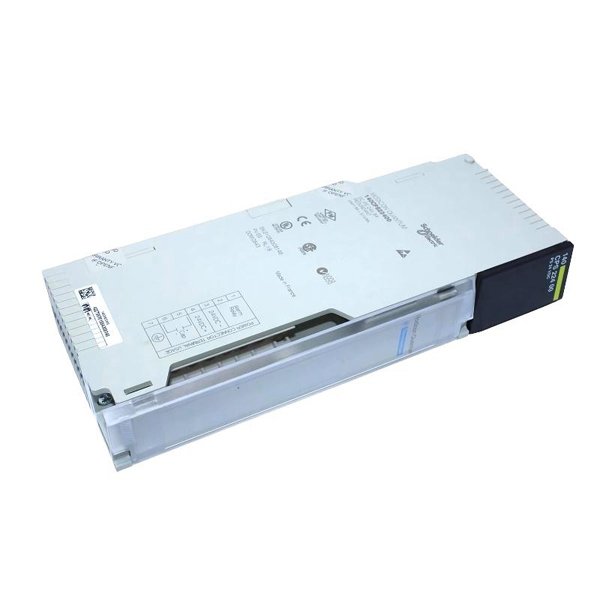

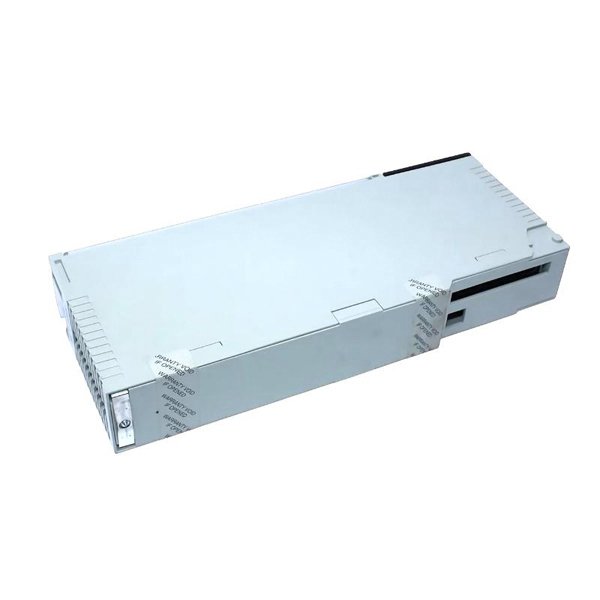

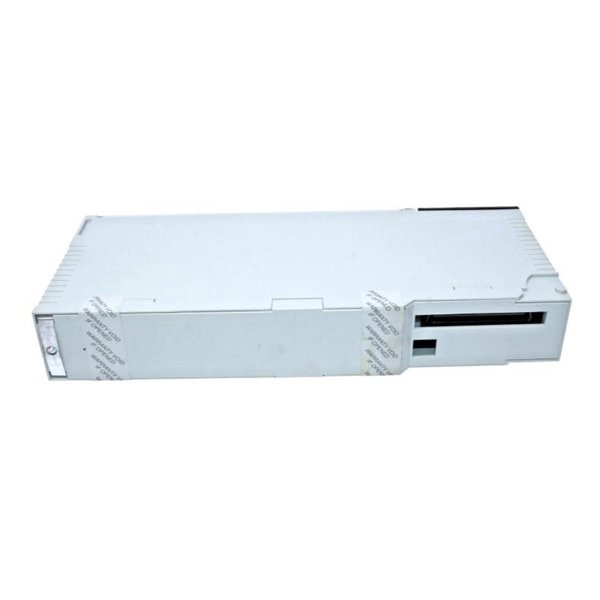

Schneider 140CPS22400C Power Supply Module
Manufacturer:Schneider
Product Number:140CPS22400C
Product Type:Power Supply Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.65 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric 140CPS22400C is a high-performance power supply module designed for the Modicon Quantum series of Programmable Logic Controllers (PLCs). This module is specifically engineered to deliver regulated and dependable DC power to the PLC backplane and connected I/O modules. It is a rugged, industrial-grade component built to meet the rigorous demands of continuous operation in automated control environments.
Operating from a 24 VDC input, the 140CPS22400C supplies 5.1 VDC output at 11 A, suitable for large Quantum installations requiring stable voltage and current. Its extended protection features, compatibility with a broad range of Quantum hardware, and robust construction make it a preferred choice in mission-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 140CPS22400C |
| Product Type | Power Supply Module for Modicon Quantum Series |
| Input Voltage | 24 VDC |
| Input Voltage Range | 19 to 30 VDC |
| Output Voltage | 5.1 VDC |
| Nominal Output Current | 11 A |
| Peak Output Current | 13 A |
| Power Consumption | Approx. 160 W |
| Power Dissipation | Approx. 24 W |
| Input Current (Nominal) | 6.5 A at 24 VDC |
| Efficiency | > 85% |
| Cooling Method | Natural convection |
| Protection Features | Overvoltage, overcurrent, short-circuit, thermal shutdown |
| Status Indicators | LEDs for power OK, fault, and diagnostics |
| Mounting Type | Rack-mounted in Quantum backplane |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Certifications | UL, CSA, CE, ATEX Zone 2, RoHS |
| Compatibility | Compatible with all Modicon Quantum CPUs and I/O modules |
Applications
The 140CPS22400C power supply module is ideal for medium to large-scale industrial automation systems that require reliable and efficient DC power distribution within PLC architecture. Typical application areas include:
-
Manufacturing Automation
Delivers consistent power to controllers in automotive, electronics, and assembly lines.
-
Oil & Gas Exploration and Processing
Ensures continuous monitoring and control for field equipment and SCADA systems.
-
Power and Energy Plants
Supports high-availability PLCs in power generation, substations, and distribution networks.
-
Water & Wastewater Treatment
Powers process controllers and safety systems for municipal and industrial treatment plants.
-
Pharmaceutical Manufacturing
Used in high-reliability automation environments for batch processing and compliance control.
-
Heavy Industry (Steel, Cement, Mining)
Suitable for harsh, dusty, and high-vibration environments with industrial-grade resilience.
Product Advantages
-
High Output Capability
Supplies up to 11 A nominal and 13 A peak to support extensive PLC configurations.
-
Stability & Reliability
Provides stable voltage under varying input conditions and load demands.
-
Advanced Protection Features
Protects against short circuits, overloads, and overtemperature, ensuring system safety.
-
Seamless Quantum Compatibility
Integrates directly into Modicon Quantum backplanes, eliminating configuration complexities.
-
Compact Design
Slim profile allows installation in limited cabinet space without compromising output power.
-
Zero External Cooling Requirements
Natural convection design minimizes maintenance and energy overhead.
-
Global Certifications
Certified for industrial use worldwide, including hazardous environments.
-
Visual Diagnostics
LED indicators help technicians quickly identify faults and power status.
Frequently Asked Questions (FAQ)
-
Q: What is the purpose of the 140CPS22400C module?
A: It supplies regulated 5.1 VDC power to Modicon Quantum CPUs and I/O modules.
-
Q: What type of input power does this module require?
A: It operates on 24 VDC input, with a recommended voltage range of 19–30 VDC.
-
Q: Is this power supply compatible with AC inputs?
A: No, the 140CPS22400C is strictly for 24 VDC input power.
-
Q: How much output current does it provide?
A: It provides 11 A nominal output, with a peak capability of 13 A.
-
Q: Can it be used in hazardous areas?
A: Yes, it carries ATEX Zone 2 certification for use in hazardous industrial environments.
-
Q: Is this module hot-swappable?
A: No, power must be disconnected before installing or replacing the module.
-
Q: What cooling method is used?
A: It uses natural convection cooling, with no fans required.
-
Q: What kind of protection features are included?
A: It includes overcurrent, overvoltage, short-circuit, and thermal shutdown protections.
-
Q: Does it support redundant power configurations?
A: Yes, it can be configured with another module for power redundancy with external diodes.
-
Q: What industries is this module commonly used in?
A: Common in oil & gas, utilities, manufacturing, water treatment, and heavy industry.
