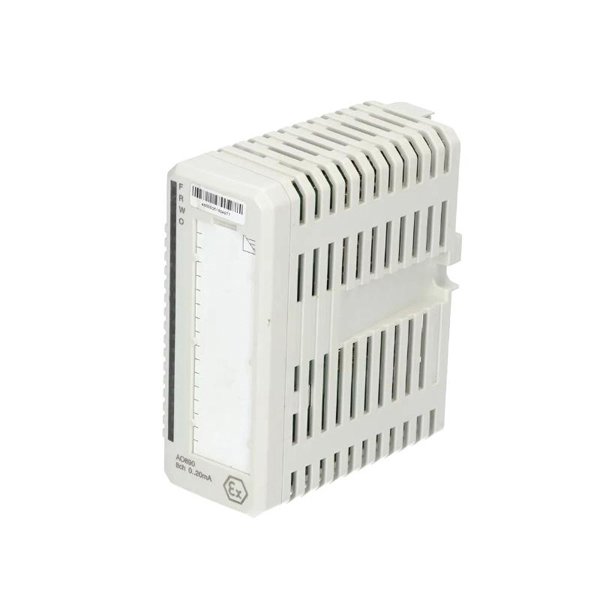

ABB AO890 3BSC690072R1 Analog Output Module

The ABB AO890 3BSC690072R1 Analog Output Module is a crucial component in ABB’s distributed control system (DCS), designed to provide reliable and precise analog output control. This module is part of ABB’s extensive portfolio for process automation and control, allowing users to interface with field equipment such as actuators, control valves, and other analog devices requiring precise output signals.

This module is optimized for seamless integration into ABB 800xA and AC 800M systems, making it a versatile solution for industries such as oil and gas, chemical, pharmaceutical, power generation, and manufacturing. The AO890 module is engineered to ensure that users can achieve high accuracy and efficiency in their control systems by converting digital control signals into high-quality analog output signals with excellent stability and linearity.

Product Specifications

Below are the detailed specifications for the ABB AO890 3BSC690072R1 Analog Output Module:

Applications

The ABB AO890 3BSC690072R1 Analog Output Module is used in a wide range of industrial applications where precision in analog output signals is required. Some key applications include:

1. Process Control: Used in industries like oil & gas, chemical, and petrochemical for controlling valves, pumps, and actuators. The module converts control signals into accurate analog outputs for seamless operation of equipment.

2. Automated Manufacturing Systems: In factories that rely on automated systems for mass production, the module helps in controlling processes like conveyor belts, motors, and temperature regulation systems.

3. Energy and Power Generation: In power plants, the module is used to control generators, turbines, and various electrical systems that require precise analog output signals for safe and reliable operation.

4. Water Treatment and Waste Management: Used for controlling pumps, filtration systems, and monitoring the levels of chemicals, the module provides accurate signals to maintain optimal operations.

5. Pharmaceutical Manufacturing: The AO890 module is used in the pharmaceutical industry where precision is critical. It ensures that processes such as mixing, heating, and sterilization happen under exact conditions to meet industry standards.

6. Building Automation: In large-scale facilities like hospitals or commercial buildings, this module can control HVAC systems, lighting, and other building functions, ensuring energy efficiency and operational effectiveness.

7. Food and Beverage Industry: Used to control mixers, heaters, and packaging systems in food production lines. The accurate analog output is crucial for maintaining product quality and consistency.

8. Mining: The AO890 module helps in controlling equipment in mining operations, such as conveyors, crushers, and transportation systems, where precision control is necessary.

9. Marine Systems: In the marine industry, this module can be used for controlling pumps, valves, and other onboard systems, ensuring that the ship’s operational systems remain reliable.

10. Instrumentation and Measurement Systems: Provides precise outputs for sensors and measurement systems that require analog control.

Advantages

The ABB AO890 3BSC690072R1 Analog Output Module offers a variety of benefits that make it a preferred choice for process control and automation:

1. High Accuracy: With an accuracy of ±0.05% of full scale, the AO890 ensures that the output signals remain within a highly reliable range, which is crucial for precise control applications.

2. Wide Output Range: Supports both 4-20mA and 0-10V DC output, making it versatile and adaptable to a variety of systems.

3. Compact and Robust Design: With a compact size (45 x 102 x 119 mm) and robust construction, it is designed to operate reliably in a variety of industrial environments.

4. Channel-to-Channel Isolation: The module offers isolation between channels, reducing the impact of faults and improving system reliability.

5. Easy Integration: Designed for easy integration into ABB’s 800xA and AC 800M systems, simplifying system setup and reducing installation time.

6. Efficient Power Consumption: With a low power consumption of just 1.5W, it helps reduce energy usage in control systems.

7. Seamless Mounting: The module can be mounted directly on DIN rails, making installation straightforward in most control panels.

8. High Response Speed: The 10 ms response time ensures rapid adjustments and quick reactions to changes in the system’s state.

9. Wide Temperature Range: With an operating temperature range of -20°C to 60°C, the AO890 is built to withstand a variety of challenging environmental conditions.

10. Safety and Certification: The module is CE, UL, and CSA certified, ensuring that it complies with stringent international safety and quality standards.

FAQ

1. What is the input voltage for the ABB AO890 module?

   • The module operates with a 24V DC input power supply.

2. How many analog output channels does the AO890 module have?

   • It has 8 analog output channels.

3. What is the output range of the module?

   • The module supports 4-20mA and 0-10V DC output ranges.

4. What is the accuracy of the output signal?

   • The module has an output accuracy of ±0.05% of full scale.

5. Is the ABB AO890 module easy to integrate into existing systems?

   • Yes, the module is designed for easy integration with ABB 800xA and AC 800M systems.

6. What is the response time of the module?

   • The response time of the module is 10 ms, ensuring fast system responses.

7. What are the mounting options for the AO890 module?

   • The module is designed for DIN rail mounting, which simplifies installation in most control panels.

8. What environmental conditions can the module handle?

   • The module operates within a temperature range of -20°C to 60°C and can handle humidity levels from 5% to 95%.

9. What certifications does the ABB AO890 module have?

   • The module is CE, UL, and CSA certified for safety and compliance with international standards.

10. What is the power consumption of the module?

    • The AO890 module consumes only 1.5W of power, making it energy-efficient.
