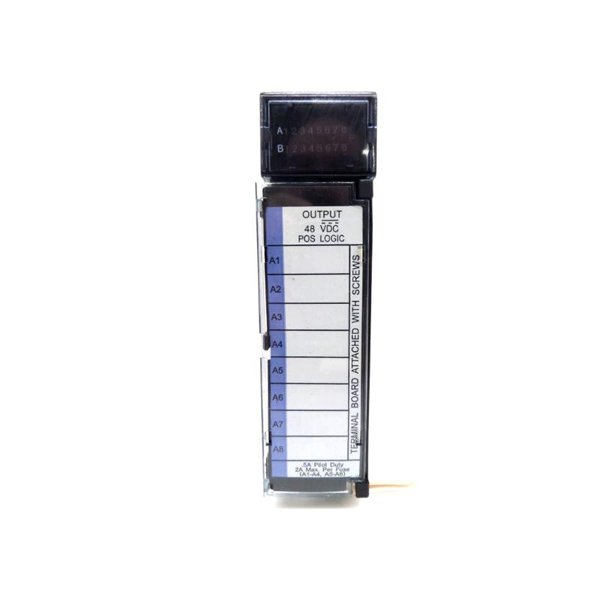

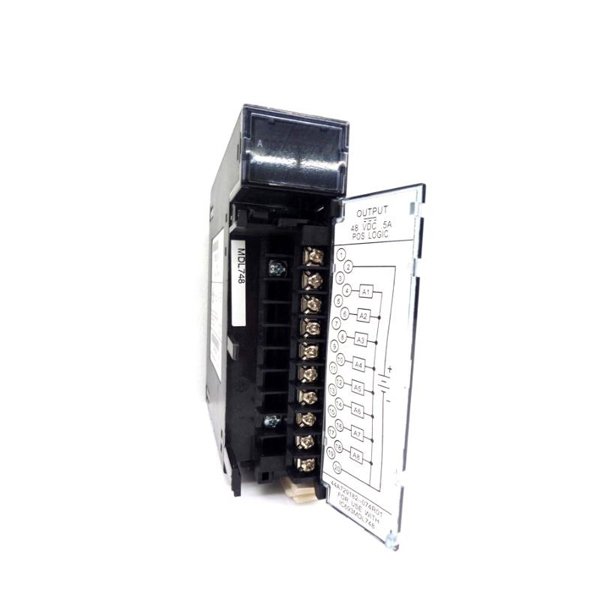

General Electric IC693MDL748 Series 90-30 DC Voltage Output Module
Manufacturer:GE
Product Number:IC693MDL748
Product Type:DC Voltage Output Module
Origin:USA
Dimensions:142 x 30 x 130 mm
Weight:0.25 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC693MDL748 is a discrete output module from the Series 90-30 family, designed to deliver reliable DC voltage control in industrial automation systems. This 8-point output module supports 24VDC or 48VDC positive logic outputs, allowing it to source current to external loads such as solenoids, indicators, and motor starters. Each of the 8 output points can supply up to 0.5A of current.
Equipped with LED indicators for point status and a blown fuse alert, the module simplifies diagnostics and maintenance. It is designed for installation in any I/O slot of a 5 or 10-slot baseplate within an IC693 Series PLC system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Discrete DC Voltage Output Module |
| Voltage Rating | 24/48 VDC (positive logic) |
| Output Voltage Range | 24 to 48 VDC ±25% |
| Number of Output Points | 8 (single group) |
| Max Output Current | 0.5 A per point |
| Inrush Current | 9.4 A for 10 ms |
| Output Voltage Drop | Max 1.2 V |
| Off-state Leakage Current | Max 1 mA |
| Response Time (On/Off) | 2 ms max (each) |
| Isolation | 1500 V (field side to logic side) |
| Fuse Protection | 2 × 3.15 A fuses (each for 4 outputs) |
| LED Indicators | 8 × green (status), 1 × red (fuse blown) |
| Power Consumption | 60 mA from 5V bus |
| Dimensions | 142 × 30 × 130 mm |
| Weight | 0.25 kg |
Applications
-
Factory automation and control systems
-
Solenoid, relay, and indicator control
-
Motor starter switching
-
Material handling equipment
-
Discrete output control in SCADA systems
Advantages
-
Supports both 24VDC and 48VDC systems
-
Compact and lightweight for flexible installation
-
Fast switching response for time-sensitive operations
-
Easy fuse replacement and diagnostic with LED indication
-
Compatible with standard IC693 terminal boards
-
Maintains electrical isolation between logic and field sides
Frequently Asked Questions (FAQ)
Q1: What voltages does the IC693MDL748 support?
A1: It supports 24VDC and 48VDC ±25% for output operations.
Q2: How many outputs are available?
A2: There are 8 output points grouped into a single group.
Q3: What type of logic does it use?
A3: Positive logic — it sources current to the connected load.
Q4: What is the maximum output current per point?
A4: Each output point can source up to 0.5 A.
Q5: Are the outputs protected by fuses?
A5: Yes, two 3.15A fuses protect the outputs (4 outputs per fuse).
Q6: Is the module hot-swappable?
A6: No, the IC693MDL748 is not designed for hot-swapping.
Q7: Can I use it in any I/O slot of a 90-30 baseplate?
A7: Yes, it can be installed in any I/O slot of 5 or 10-slot baseplates.
Q8: How are output status and fuse faults indicated?
A8: Green LEDs show point status; a red LED indicates a blown fuse.
Q9: Is external power required for outputs?
A9: Yes, user-supplied external DC power is required to drive the loads.
Q10: What is the recommended replacement fuse part number?
A10: Bussman GDB-3.15A or Littelfuse 2173.15.
