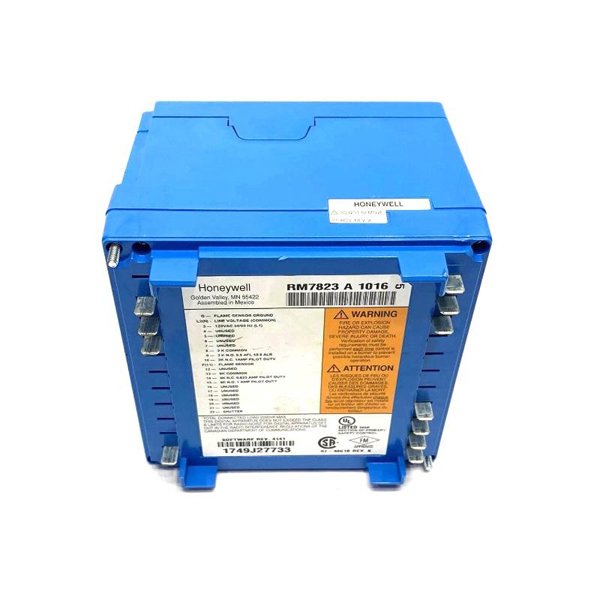

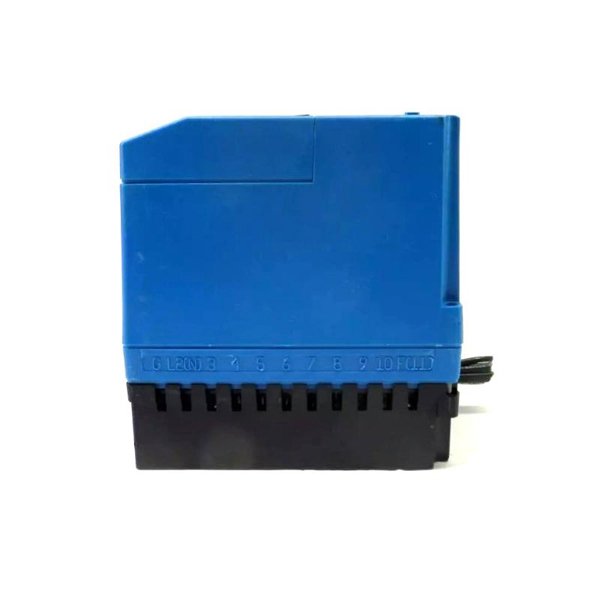

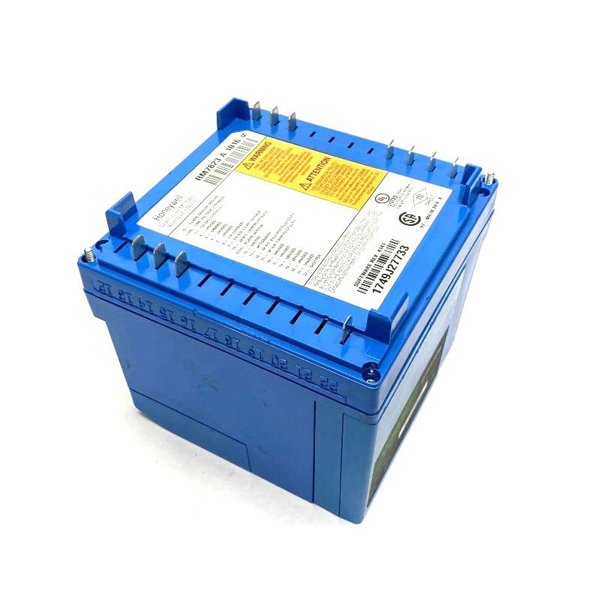

Honeywell RM7823A1016 Burner Control
Manufacturer:Honeywell
Product Number:RM7823A1016
Product Type:Burner Control
Origin:USA
Dimensions:127 x 127 x 133 mm
Weight:0.83 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell RM7823A1016 is a microprocessor-based flame detector relay module in the 7800 Series. It monitors flame presence, provides reliable relay action, self-diagnostics, and troubleshooting features. It is used with Honeywell flame amplifiers and integrates into combustion control systems to ensure safe burner operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7823A1016 |
| Input Voltage | 120 VAC ±10%, 50/60 Hz |
| Power Consumption | Max. 10 W |
| Maximum Load | 2000 VA |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +66°C |
| Humidity | 85% RH, non-condensing |
| Vibration | 0.5G |
| Approvals | UL, CSA, CE, SIL3 capable |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.83 kg |
Applications
-
Industrial burner and boiler systems
-
Flame safeguard systems
-
Combustion control for process heating
-
Retrofit of older relay systems with solid-state reliability
Advantages
-
SIL3 capable for safety-critical applications
-
Microprocessor control with self-diagnostics
-
Compact and lightweight design
-
Wide environmental tolerance
-
Easy integration with Honeywell flame amplifiers and control systems
FAQ
Q1: What is the input voltage for the RM7823A1016?
A1: It operates at 120 VAC, 50/60 Hz.
Q2: Can the RM7823A1016 be used outdoors?
A2: No, it requires a weather-tight enclosure for outdoor use.
Q3: What flame amplifiers are compatible with the RM7823A1016?
A3: Honeywell R7824, R7847, R7848, R7849, R7861, and R7886 flame amplifiers.
Q4: Is the RM7823A1016 SIL3 certified?
A4: It is SIL3 capable when installed in a properly designed SIS.
Q5: Does the RM7823A1016 include a display?
A5: No, but it supports an optional S7800A Keyboard Display Module.
Q6: What is the maximum ambient temperature it can operate in?
A6: Up to +60°C.
Q7: How is it mounted?
A7: It mounts on a Q7800 sub-base in a vertical or recommended position.

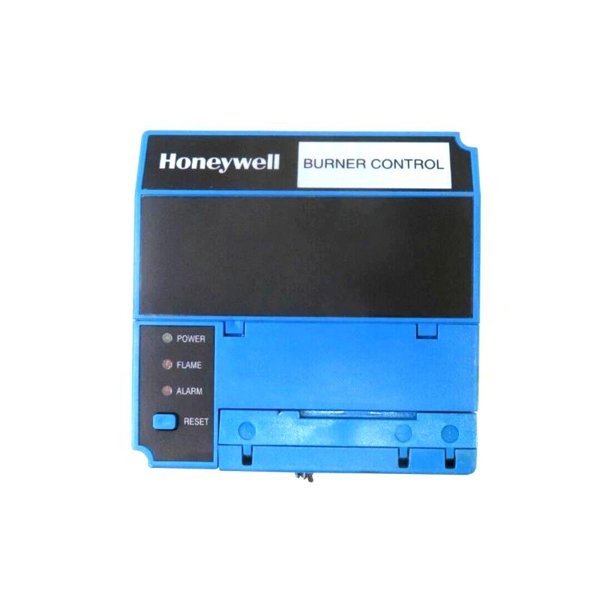

Q8: What are the LED indicators for?
A8: LEDs indicate power, flame presence, and alarm status.
Q9: Can it detect flame directly?
A9: No, it requires a separate flame detector.
Q10: Is it suitable for continuous operation?
A10: Yes, with appropriate flame amplifier selection.
