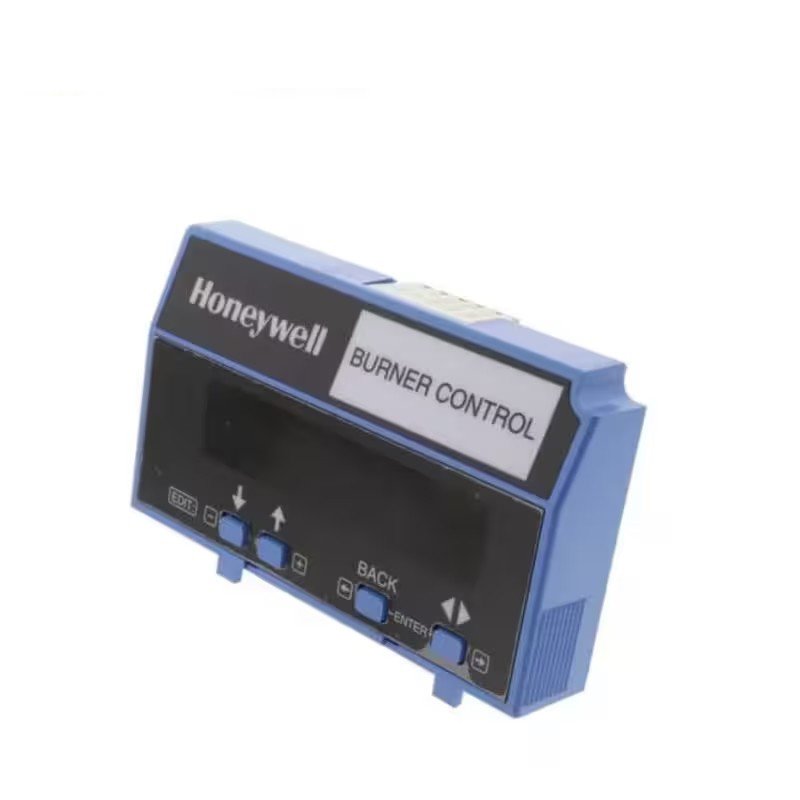

The Honeywell S7800A1142 Keyboard Display Module (KDM) is a critical component in Honeywell’s 7800 SERIES flame safety control systems. This module offers a user-friendly interface, real-time system status updates, diagnostic insights, and first-out annunciation.

Key Features and Benefits

• Clear and Concise Display: The KDM provides a two-row, twenty-column readout, enabling easy interpretation of system data.
• Comprehensive System Status: It shows the current system status, including key operating parameters, alarms, and fault conditions.
• First-Out Annunciation: The module pinpoints the first fault or alarm condition, allowing quick response.
• Diagnostic Capabilities: It offers detailed diagnostics to streamline troubleshooting and maintenance.
• Compatibility: The S7800A1142 works seamlessly with Honeywell 7800 SERIES systems, simplifying upgrades.
• User-Friendly Interface: Its intuitive design enables easy operation and configuration.

Applications

• Boilers and Furnaces: It monitors and controls flame detection systems.
• Process Heaters: It ensures safe, efficient operation.
• Industrial Burners: It provides real-time system data, enhancing safety and reliability.
