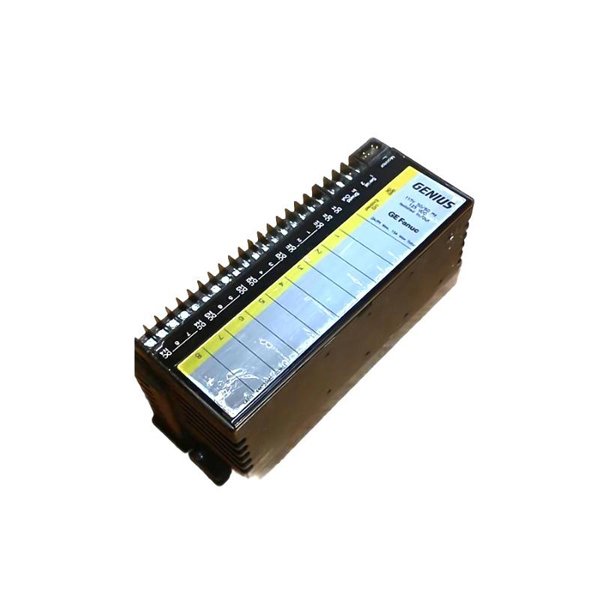

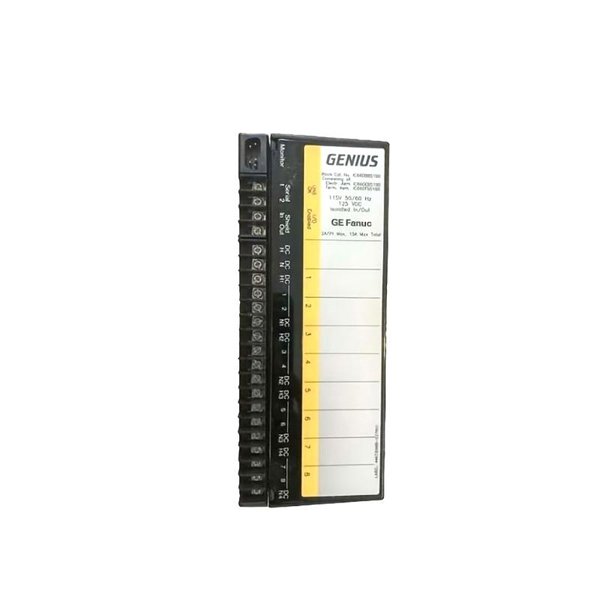

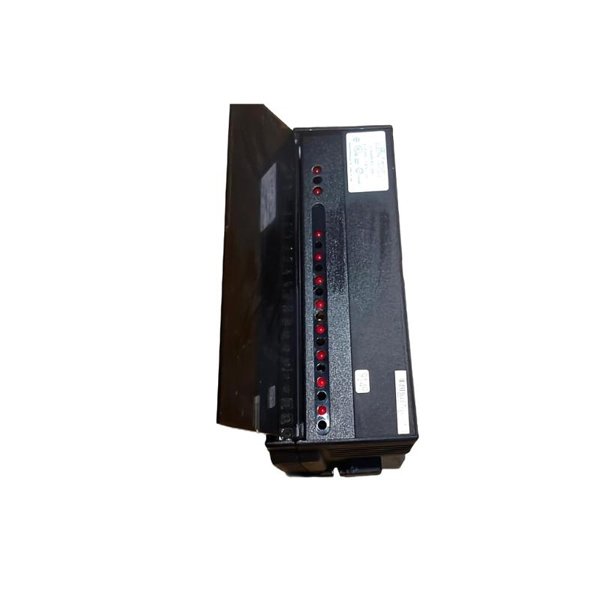

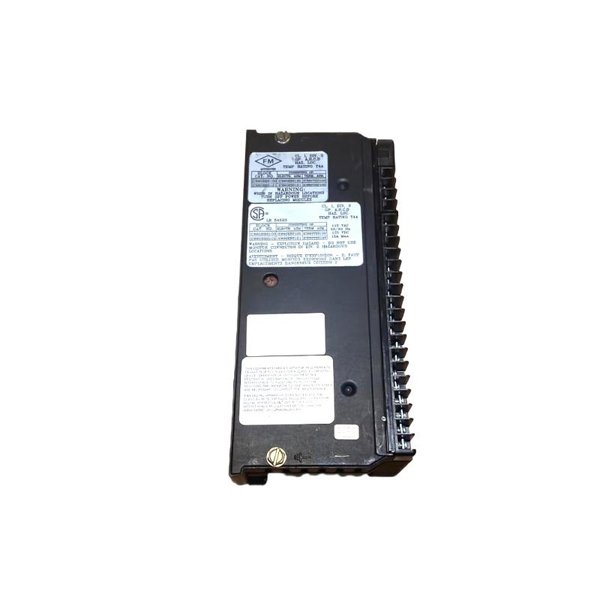

General Electric IC660BBS100 Isolated I/O Module

The GE IC660BBS100 Isolated I/O Module is a rugged and flexible component of the GE Genius I/O family, designed to support a combination of discrete input and output operations within industrial automation systems. With a compact design, the IC660BBS100 offers 16 user-configurable I/O points that can function as either inputs or outputs, delivering a high degree of control flexibility. Each I/O circuit is isolated, ensuring robust electrical protection and interference resistance. This module is ideal for environments requiring mixed signal handling, long cable runs, and high noise immunity, making it a reliable solution in both discrete and hybrid industrial control systems.

Product Specifications

Product Applications

The IC660BBS100 module is used across a wide array of industries requiring reliable control and monitoring of mixed signal environments. Common application fields include:

• Manufacturing Automation: Mixed digital I/O control for assembly lines and packaging systems.

• Water Treatment Plants: Interfacing with pump status sensors and control relays.

• Material Handling Systems: Monitoring conveyor inputs and actuating motors or solenoids.

• Building Automation: Managing lighting, ventilation, and access systems.

• Power and Utility Management: Control of switchgear signals and status indicators.

• Mining and Heavy Equipment: Rugged field operations requiring isolated I/O and high durability.

Product Advantages

• Flexible I/O Configuration: All 16 channels can be individually set as inputs or outputs, reducing inventory and increasing adaptability.

• Robust Isolation: Each channel is electrically isolated, which enhances noise immunity and ensures operational integrity in electrically noisy environments.

• Durable and Field-Proven: Built to withstand harsh industrial environments with wide operating temperature and humidity ranges.

• Built-in Diagnostics: LEDs for each I/O point provide immediate visual status, simplifying troubleshooting and maintenance.

• Genius Network Compatibility: Seamlessly integrates into existing GE Genius I/O networks, supporting efficient distributed control.

• Reduces Cabinet Space: Compact design helps minimize space in control cabinets, allowing for dense installations.

Frequently Asked Questions (FAQ)

1. Q: What makes the IC660BBS100 unique compared to standard digital I/O modules?

   A: It offers fully configurable I/O points with full channel isolation, allowing the same hardware to be used for inputs or outputs as needed.

2. Q: Is configuration software required for setup?

   A: Yes, configuration can be performed using a GE Hand-Held Monitor or appropriate PLC configuration tools.

3. Q: What is the maximum current output per channel?

   A: Each channel can source up to 0.5 amps, with a total module limit of 8 amps.

4. Q: Does this module support hot swapping?

   A: No, the IC660BBS100 does not support hot swapping; power must be off during module replacement.

5. Q: Can it be used in high-vibration environments?

   A: Yes, it’s built for industrial-grade usage, including high-vibration and electrical noise environments.

6. Q: What communication protocol does the module use?

   A: It communicates via the GE Genius Bus protocol.

7. Q: Are the channels isolated from each other?

   A: Yes, all channels are fully isolated from each other and from ground, enhancing reliability and protection.

8. Q: Is the module compatible with modern Emerson PACSystems?

   A: It can be integrated into systems with appropriate network adapters or legacy compatibility bridges.

9. Q: How is the module mounted in a control panel?

   A: It can be DIN rail or panel mounted depending on installation needs.

10. Q: What certifications does this module carry?

    A: The IC660BBS100 is UL, CE, and CSA certified for use in global industrial applications.
