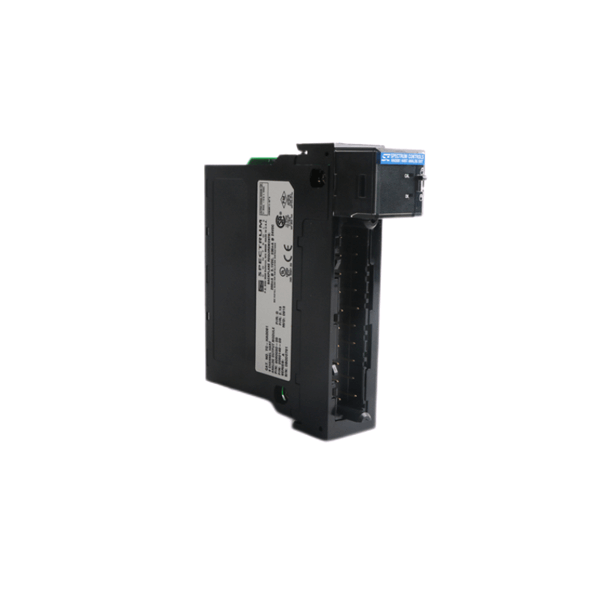

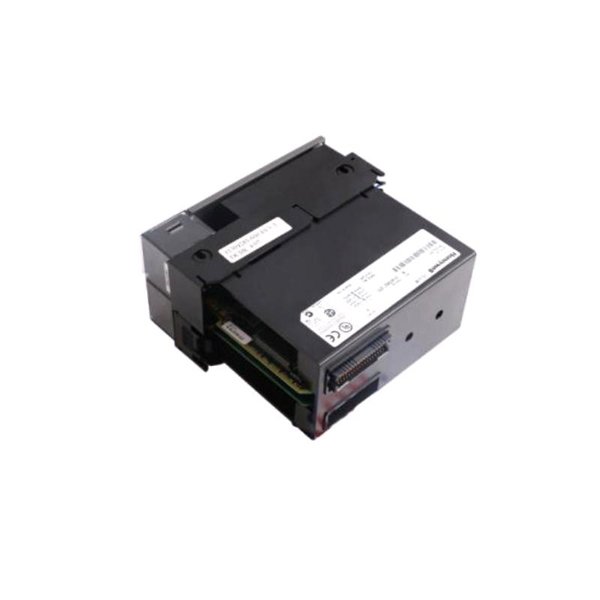

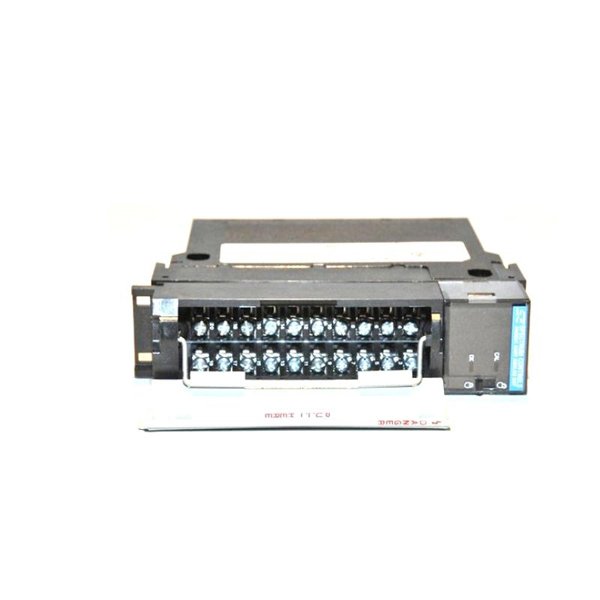

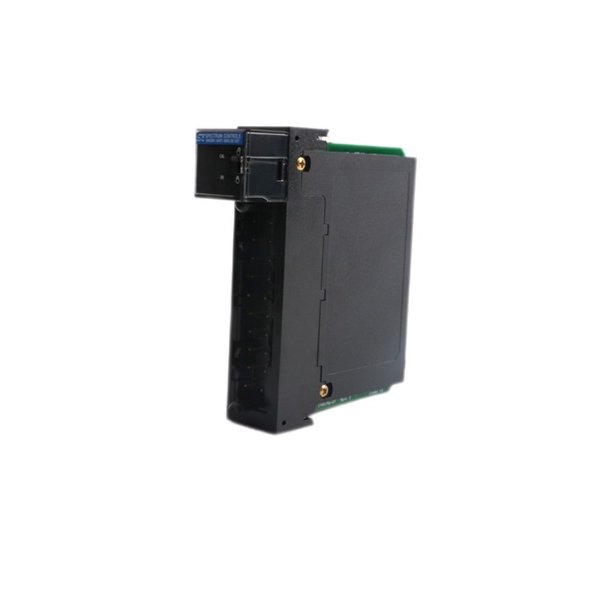

Honeywell TC-HAO081 Analog Output Module

The Honeywell TC-HAO081 is a precision analog output module designed to deliver accurate analog signals for process control applications. This module converts digital control signals into stable and precise analog outputs, facilitating the regulation of actuators, valves, and other field devices in industrial automation systems.

Built for reliable performance in challenging industrial environments, the TC-HAO081 supports consistent signal integrity and ease of integration within Honeywell’s modular control platforms. Its compact dimensions and light weight enable efficient use of panel space and simplify installation. This module is ideal for processes requiring high accuracy and fast response times, ensuring optimal control system performance.

Technical Specifications

Applications

The Honeywell TC-HAO081 analog output module is widely used across various industries where precise analog output is essential for process control. Typical applications include:

• Oil & Gas – Control of valve positioners, actuators, and flow control devices.

• Chemical & Petrochemical – Accurate modulation of chemical reactors and batch processing.

• Power Generation – Output signal control for turbine and generator systems.

• Water & Wastewater Treatment – Regulation of pumps and valves in treatment processes.

• Pharmaceutical – Precise control of manufacturing and batch processing equipment.

• Food & Beverage – Monitoring and controlling analog actuators in automated processing lines.

Key Advantages

• High Precision: Delivers accurate and stable analog signals essential for fine process control.

• Compact and Lightweight: Measures 35 × 142 × 145 mm and weighs only 0.22 kg, optimizing space.

• Reliable Performance: Designed to operate consistently in harsh industrial environments.

• Fast Response Time: Provides output updates within 100 milliseconds for timely control actions.

• Multiple Output Signals: Supports widely used 4-20 mA, 0-20 mA, and 0-10 V signals.

• Protective Features: Includes safeguards against overload, short circuit, and open circuit faults.

• Flexible Mounting: Can be installed on DIN rails or panels as required.

• Seamless Integration: Fully compatible with Honeywell process control systems.

Frequently Asked Questions (FAQ)

1. What output signal types does the TC-HAO081 support?

   It supports 4-20 mA, 0-20 mA, and 0-10 V output signals.

2. How many channels does this module have?

   It has a single analog output channel.

3. What is the accuracy of the output signals?

   The accuracy is ±0.2% of full scale.

4. What is the response time of the module?

   Response time is up to 100 milliseconds.

5. Can the module be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting.

6. What are the physical dimensions of the module?

   Dimensions are 35 mm (L) × 142 mm (W) × 145 mm (H).

7. How much does the module weigh?

   The weight is approximately 0.22 kg.

8. What is the operating temperature range?

   It operates between -20°C and +70°C.

9. Does the module include protective features?

   Yes, it has overload, short circuit, and open circuit protection.

10. Is this module compatible with Honeywell control systems?

    Yes, it is designed for seamless integration with Honeywell’s control platforms.
