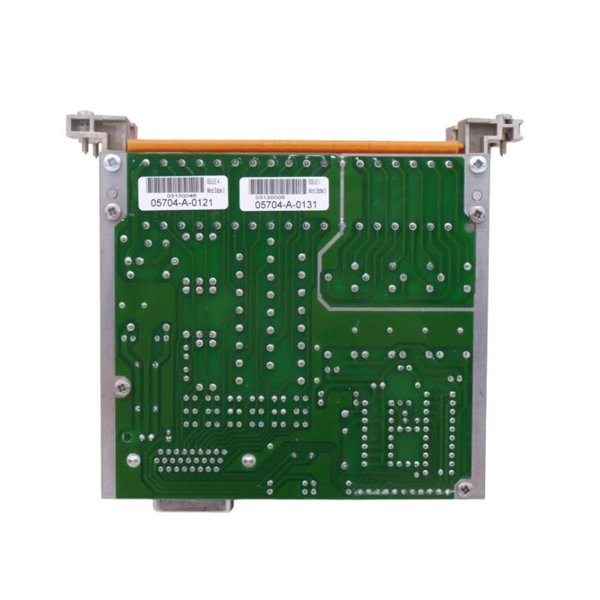

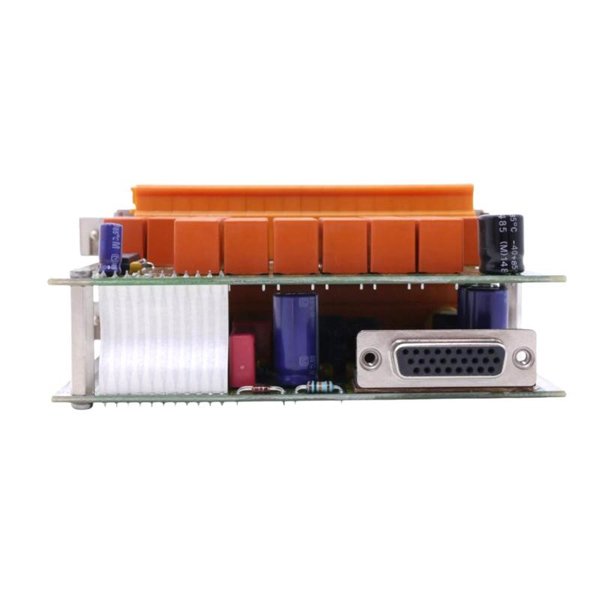

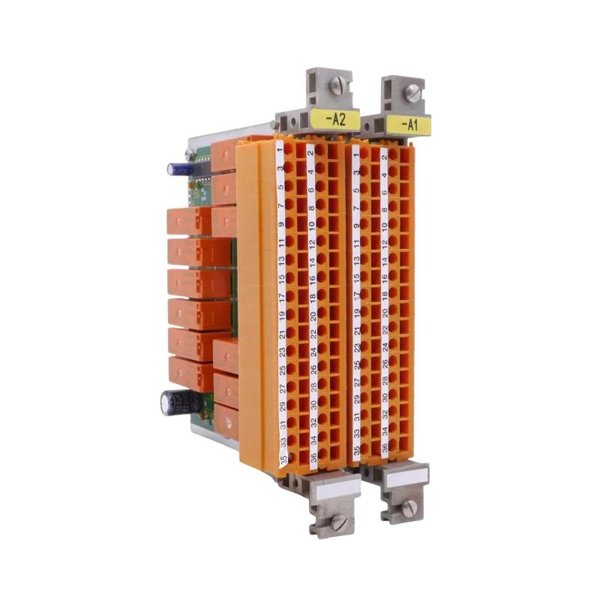

Honeywell 05704-A-0131 Quad Relay Interface Card

The Honeywell 05704-A-0131 Quad Relay Interface Card is a high-performance relay output module designed to provide reliable isolation and control in process automation and distributed control systems (DCS). This card is part of Honeywell’s advanced I/O subsystem and is specifically used to interface control logic with external devices such as actuators, solenoids, alarms, and contactors.

Equipped with four independent relay channels, the 05704-A-0131 offers robust switching capabilities, making it suitable for safety-critical applications and high-reliability control systems. The card is designed to operate in harsh industrial environments, with high immunity to electromagnetic interference (EMI) and robust isolation to protect the control system from field-side disturbances.

The module ensures seamless integration into Honeywell’s TDC 3000, Experion® PKS, and other compatible DCS architectures, providing a stable and flexible solution for output interfacing in industrial automation.

Product Specifications

Product Applications

The Honeywell 05704-A-0131 Quad Relay Interface Card is widely used in industrial automation, energy, and process control sectors. Key applications include:

• Distributed Control Systems (DCS): Interfaces control logic with external field devices.

• Safety and Alarm Systems: Controls audible and visual alarm circuits with galvanic isolation.

• Actuator and Solenoid Control: Drives field actuators and solenoids in critical process loops.

• Contact Closure Output: Provides reliable dry contact outputs for external systems.

• Power Plant Automation: Used in turbine and boiler control systems requiring robust relay outputs.

• Oil, Gas, and Chemical Plants: Ideal for hazardous and high-EMI environments requiring reliable relay interfacing.

Product Advantages

• Four Independent Outputs: Allows control of multiple devices with a single interface card.

• High Isolation: Provides 1500 V RMS isolation between field and control circuits for system protection.

• Robust Industrial Design: Built to withstand EMI and harsh process plant conditions.

• Fast Response: Ensures quick and accurate relay switching for critical control functions.

• Seamless Integration: Fully compatible with Honeywell Experion® PKS and TDC 3000 systems.

• Flexible Applications: Can drive alarms, actuators, solenoids, and contactors in multiple industrial settings.

FAQ

1. How many relay outputs does the 05704-A-0131 provide?

   The card offers 4 independent relay outputs for versatile control applications.

2. What type of relays are used in the module?

   It uses Form-C (SPDT) electro-mechanical relays with galvanic isolation.

3. What is the contact rating for each relay output?

   Each relay is rated for 2 A at 30 VDC or 0.5 A at 125 VAC.

4. Does the 05704-A-0131 provide electrical isolation between field and control circuits?

   Yes, it provides up to 1500 V RMS isolation to protect control systems.

5. What is the typical response time for the relay activation?

   The typical switching response time is less than 10 ms.

6. Is the card compatible with Honeywell Experion® PKS systems?

   Yes, it integrates seamlessly with Experion® PKS and legacy TDC 3000 architectures.

7. Can the card drive inductive loads such as solenoids and contactors?

   Yes, it is designed to handle inductive loads with appropriate suppression.

8. What is the typical control voltage required?

   The module typically operates with a 24 VDC control signal.

9. Is the card suitable for use in safety-critical applications?

   Yes, it is commonly used in alarm and emergency shutdown systems due to its reliability.

10. Does the 05704-A-0131 meet international compliance standards?

    Yes, it complies with UL, CE, RoHS, and IEC standards for industrial automation equipment.
