The IS200VCMIH2 is a vital component within the General Electric Mark VI Speedtronic system. It facilitates communication between I/O cards within the Control Module. As a VME Communications Interface, it ensures seamless data transfer and overall system coordination.

Specifications

Part Number: IS200VCMIH2

Manufacturer: General Electric

Series: Mark VI Speedtronic

Functional Acronym: VCMI

Functional Description: VME Communications Interface

PCB Coating: Conformal Coating

Physical Characteristics

• Front Faceplate: Displays board number, GE logo, and various components.
• Connectors: The module includes three IONet connectors, one 9-pin serial port, and one reset switch.
• LED Indicators: Multiple sets of LEDs monitor operational status.

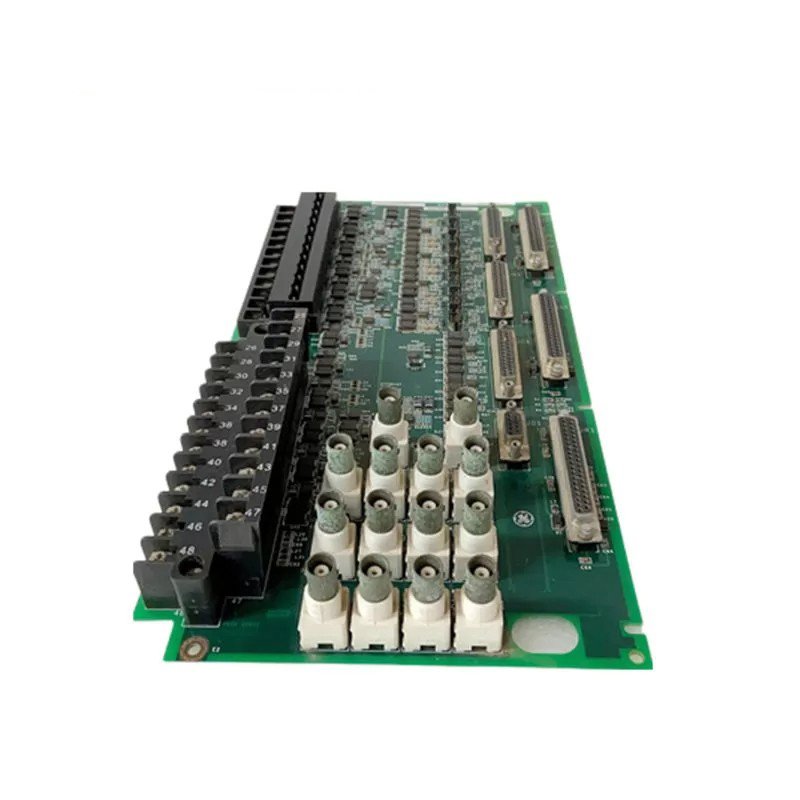

• Components: The board features transformers, FPGAs, extensive resistor arrays, capacitor arrays, diode arrays, transistors, and various connector types (vertical pin, ribbon, conductive trace).
• Backplane Connectors: Two side-by-side connectors are on the rear of the board.
• Board Design: The design is dual-sided with components on both sides.
