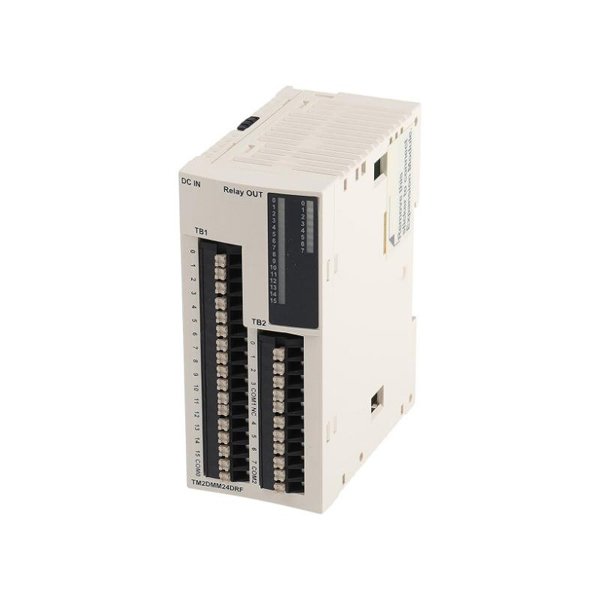

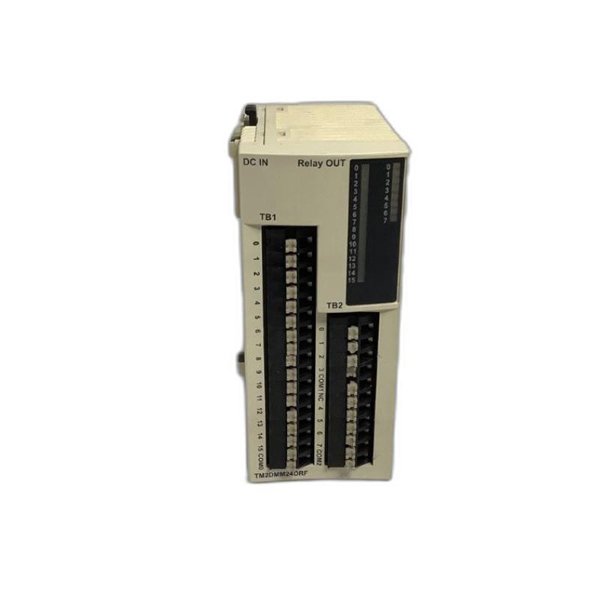

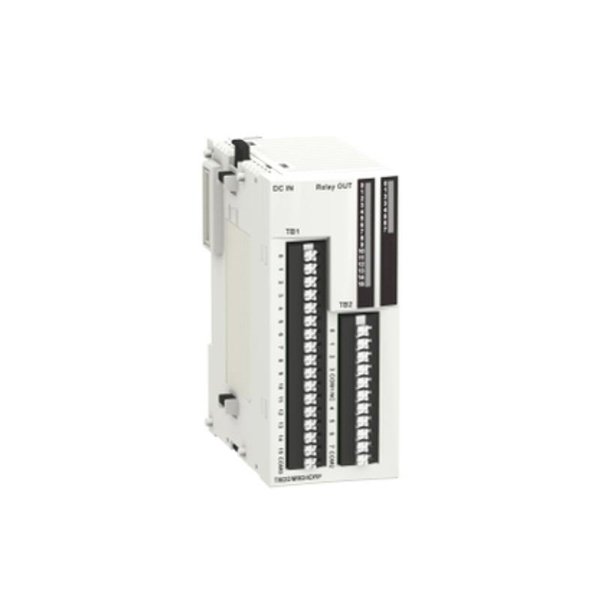

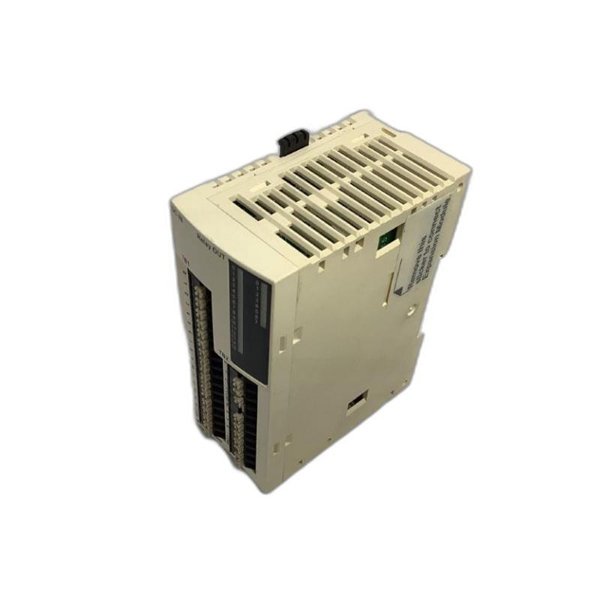

Schneider TM2DMM24DRF Discrete I/O Modules

The Schneider TM2DMM24DRF is a highly reliable and advanced digital module designed for use in automation and control systems. It is part of Schneider Electric’s comprehensive offering of modular devices, ideal for industrial and commercial applications that require precise monitoring and control of signals. This model features a wide input range and can be integrated seamlessly into the Schneider Electric Modicon M221, M241, and M251 programmable logic controllers (PLCs).

With robust construction and ease of integration, the TM2DMM24DRF module is ideal for managing 24 digital inputs. It enhances the overall performance and safety of automation systems by providing real-time data for decision-making processes.

Product Parameters

Below are the key specifications of the Schneider TM2DMM24DRF module:

Applications

The Schneider TM2DMM24DRF is widely used in various industrial applications where precise control and monitoring of digital signals are required. Key applications include:

1. Industrial Automation: Used in automated systems to control machinery, monitor production lines, and ensure system efficiency.

2. Building Management Systems: Integrates with energy management systems for buildings, allowing for precise control of lighting, HVAC, and security systems.

3. Process Control Systems: Essential in manufacturing plants where multiple sensors and actuators must be controlled and monitored in real-time.

4. Energy Management: Used in applications that require real-time monitoring of energy consumption and distribution.

5. Control Systems: Works effectively in control cabinets, where space is crucial, and real-time digital input/output data is needed.

Product Advantages

• High Accuracy: Provides high-precision digital inputs with a wide voltage range, ensuring the accurate detection of input states.

• Flexible Integration: Seamlessly integrates with the Modicon M221, M241, and M251 PLCs, offering flexibility and ease of use for system integrators.

• Compact Design: Its compact and rugged design allows for easy mounting on a DIN rail, saving space in control panels.

• Robust Durability: With its wide operating temperature range and high resistance to humidity, it’s designed for harsh industrial environments.

• Energy Efficient: The low power consumption ensures that the device operates without placing an undue burden on your system’s energy resources.

• Scalability: Easily integrated into larger automation systems, enabling seamless scalability as your operational needs evolve.

FAQ

1. What is the input voltage range for the Schneider TM2DMM24DRF?

The input voltage range for the TM2DMM24DRF is between 20.4V to 28.8V DC.

2. How many digital inputs can the TM2DMM24DRF handle?

The module can handle 24 digital inputs simultaneously.

3. Can the TM2DMM24DRF be used in outdoor environments?

It is designed to function in industrial environments with a temperature range of -20°C to 60°C. However, it should not be used in direct outdoor exposure to extreme conditions unless housed in a suitable enclosure.

4. What is the power consumption of the TM2DMM24DRF?

The power consumption is 2.5W, ensuring that it operates efficiently in automation systems.

5. How is the TM2DMM24DRF mounted?

It is designed for DIN rail mounting, making installation straightforward and space-efficient in control panels.

6. What are the typical uses of the TM2DMM24DRF in industrial settings?

It is typically used in industrial automation, energy management, process control, and building management systems.

7. Can the TM2DMM24DRF module be used in hazardous locations?

No, this module is not designed for hazardous locations. Always verify environmental and safety requirements before installation.

8. Does the Schneider TM2DMM24DRF come with a warranty?

Yes, Schneider Electric typically offers a standard 1-year warranty on this product. For extended support, you can check with the distributor or Schneider Electric.

9. What is the weight of the TM2DMM24DRF?

The TM2DMM24DRF weighs 0.14 kg, making it a lightweight addition to your automation system.

10. Is the TM2DMM24DRF compatible with all Schneider Electric PLCs?

It is designed specifically for use with the Modicon M221, M241, and M251 PLCs from Schneider Electric.
