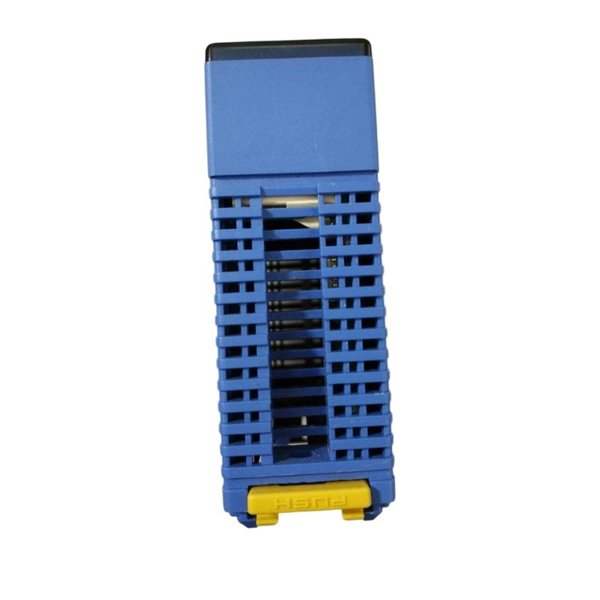

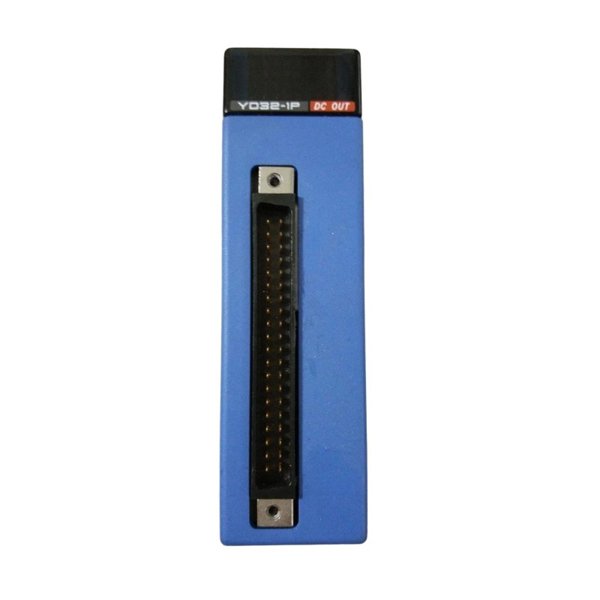

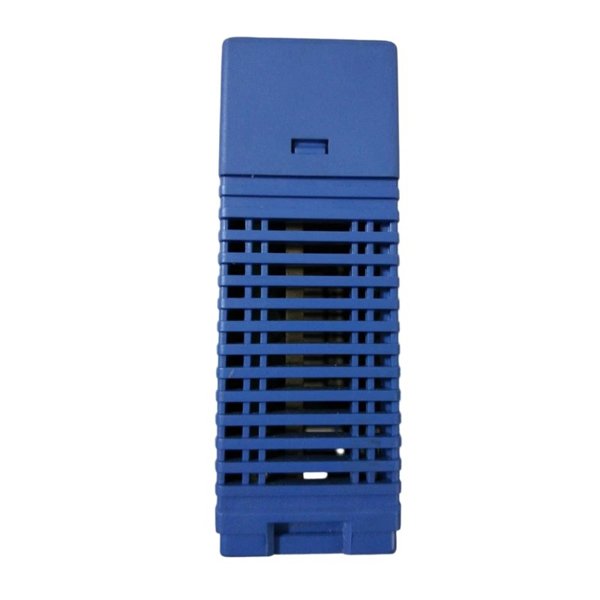

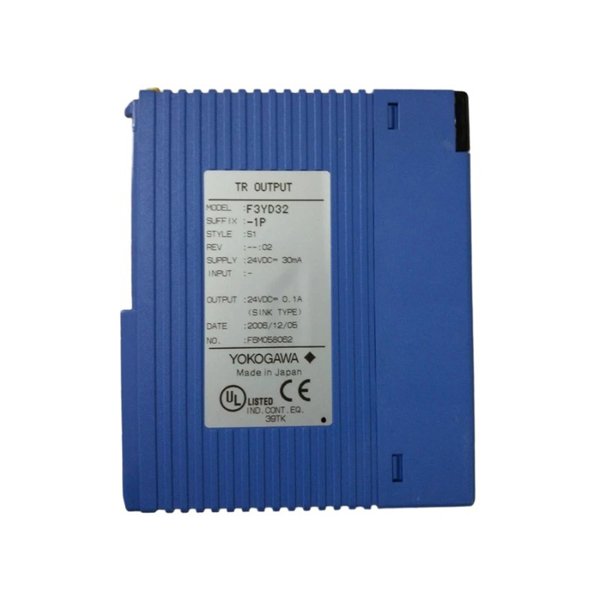

Yokogawa F3YD32-1P Transistor Output Modules

The Yokogawa F3YD32-1P is a high-performance transistor output module designed for use in Yokogawa’s FA-M3 series programmable logic controllers (PLCs). This module is built to provide reliable digital output control in demanding industrial environments. With its 32 output channels, it offers high-density I/O capabilities in a compact form factor, making it suitable for applications requiring rapid switching and precise control.

Technical Specifications

Product Applications

• Manufacturing lines: For controlling actuators, solenoids, and relays.

• Robotics systems: Precise digital outputs for motion and sequence control.

• Energy sector: Controlling breakers, alarms, and switching devices.

• Process automation: Providing fast-response outputs to valves, pumps, and motors.

• Packaging machinery: Coordinating timing-sensitive control operations.

Product Advantages

• High Channel Density: Provides 32 output channels in a compact module, optimizing panel space.

• Fast Switching Speed: Ensures rapid response times suitable for high-speed automation tasks.

• Robust Isolation: Photocoupler isolation ensures safe operation and prevents signal interference.

• Flexible Voltage Range: Supports industrial-standard 24V DC operation with tolerance for variations.

• Compact and Lightweight: Easy integration into existing systems with minimal footprint.

• Enhanced Reliability: Designed for long-term operation in demanding industrial conditions.

FAQ

Q1: What type of outputs does the F3YD32-1P support?

A1: It supports transistor outputs, suitable for sink or source wiring configurations.

Q2: What is the maximum output current per channel?

A2: Each channel can handle up to 0.5 A, with a total current capacity of 8 A across the module.

Q3: How fast is the response time of the module?

A3: The module has a typical response time of 0.1 milliseconds.

Q4: Is isolation provided between the output channels and internal circuits?

A4: Yes, photocoupler isolation is used to ensure electrical safety and prevent signal interference.

Q5: What PLC series is the F3YD32-1P compatible with?

A5: It is fully compatible with the Yokogawa FA-M3 PLC series.

Q6: Can this module directly drive relays or solenoids?

A6: Yes, it can drive relays and solenoids, provided the load current does not exceed 0.5 A per channel.

Q7: What is the rated voltage for stable operation?

A7: The rated output voltage is 24 V DC, with an allowable range of 20.4–28.8 V DC.

Q8: What is the maximum ambient operating temperature?

A8: The module can operate in temperatures up to 55 °C.

Q9: Does the module support hot-swapping during operation?

A9: No, hot-swapping is not supported; power should be removed before replacing the module.

Q10: How is the module mounted in the control system?

A10: It can be mounted on a DIN rail or directly within an FA-M3 base unit.
