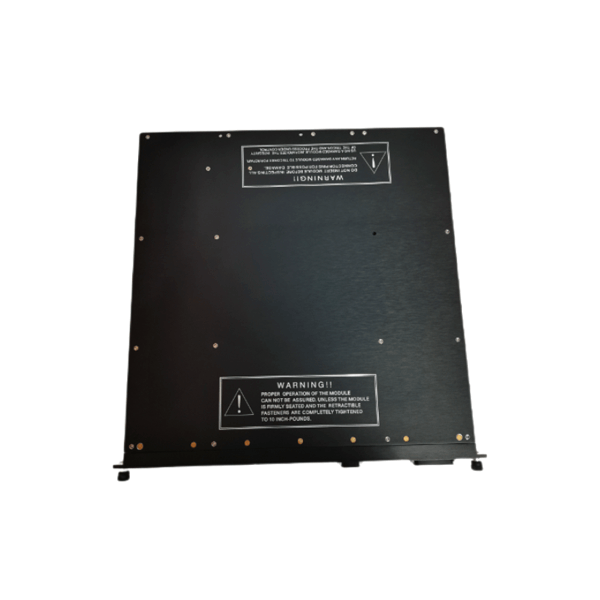

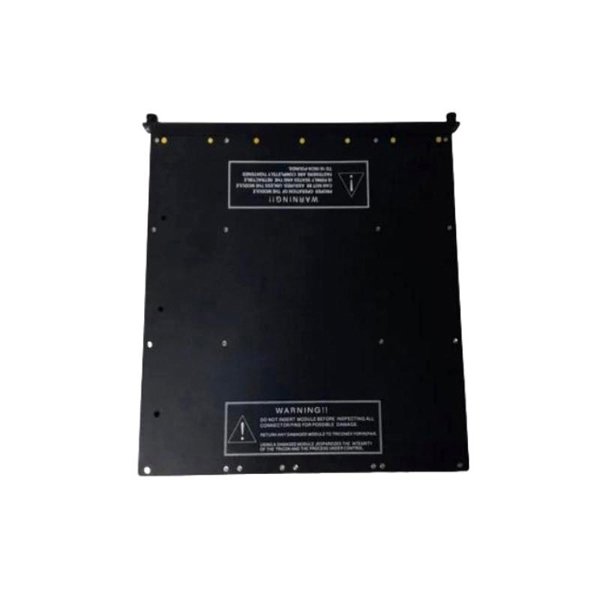

Triconex 3381 Pulse Input Module

The Invensys Triconex 3381 Pulse Input (PI) Module is a high-performance, high-frequency input module designed to interface with various pulse-generating sensors in industrial automation systems. It offers six channel-isolated inputs compatible with magnetic, active, and open collector sensors. This module is integral to monitoring and controlling rotating equipment, such as turbines and compressors, by accurately measuring speed and rotational data.

The 3381 PI Module detects voltage transitions from speed sensors, processing each input transition to generate precise frequency measurements (revolutions per minute). These measurements are then transmitted to the main processors for real-time monitoring and control. The module’s ability to handle high-frequency inputs and its compatibility with various sensor types make it a versatile component in safety-critical applications.

Product Specifications

Product Applications

The Triconex 3381 Pulse Input Module is widely utilized in industrial settings requiring precise monitoring of rotational speeds and pulse signals. Key applications include:

• Turbine and Compressor Monitoring: Accurately measures the speed of turbines and compressors, ensuring optimal performance and safety.

• Rotating Equipment Overspeed Protection: Provides real-time speed data to prevent equipment from exceeding safe operational limits.

• Flow Measurement Systems: Interfaces with flow meters that generate pulse outputs, facilitating accurate flow rate monitoring.

• Conveyor Belt Speed Monitoring: Ensures proper material handling by monitoring the speed of conveyor systems.

• Industrial Automation: Integrates with various automated systems requiring precise pulse input measurements for control and monitoring.

Its ability to handle high-frequency inputs and compatibility with different sensor types make it versatile across multiple industrial applications.

Product Advantages

• High-Frequency Input Handling: Capable of processing input frequencies up to 32 kHz, suitable for high-speed applications.

• Versatile Sensor Compatibility: Supports magnetic, active, and open collector sensors, offering flexibility in sensor selection.

• High Resolution and Accuracy: Features 24-bit resolution with an absolute error margin as low as ±0.01%, ensuring precise measurements.

• Robust Diagnostic Functions: Includes precision reference tests to maintain measurement integrity and system reliability.

• Wide Operating Temperature Range: Designed to operate effectively in harsh environments, withstanding temperatures from -40°C to +70°C.

• Compact and Durable Design: Its compact dimensions and sturdy construction facilitate easy integration into existing systems while ensuring longevity.

• Rapid Response Time: With a minimum scan update rate of 20 ms, it provides timely data for real-time monitoring and control.

• Enhanced Safety Features: Offers functional isolation to protect against electrical faults, enhancing overall system safety.

• Configurable Termination and Pull-up Resistors: Allows customization to match specific application requirements, improving flexibility.

• Reliable Performance in High-Vibration Environments: Suitable for use in settings with significant mechanical vibrations, maintaining measurement accuracy.
