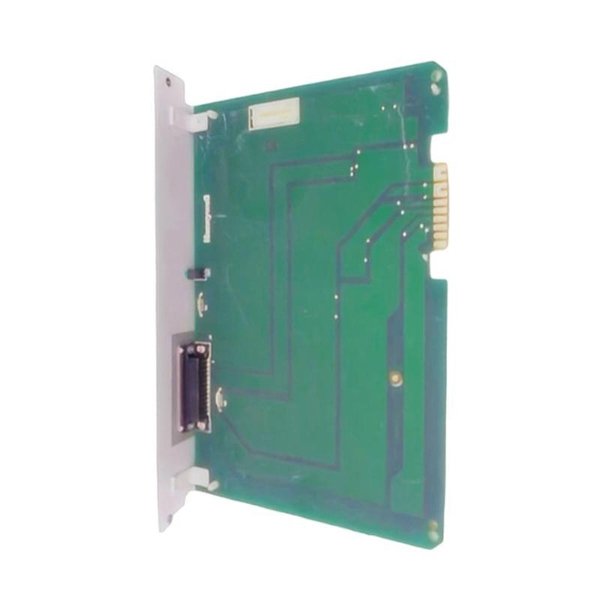

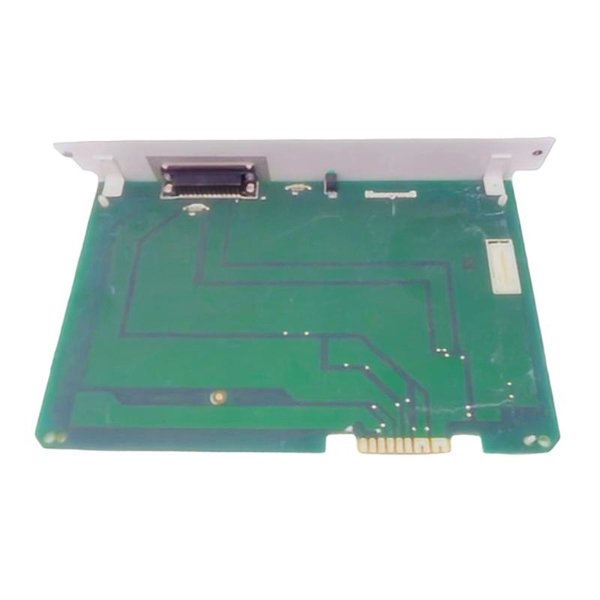

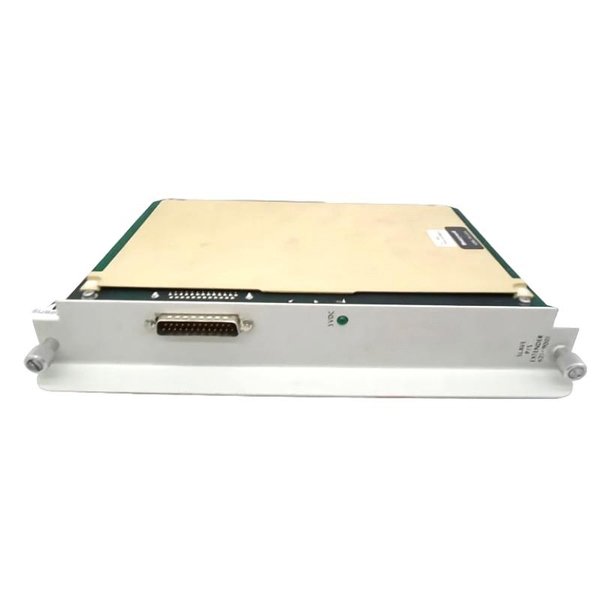

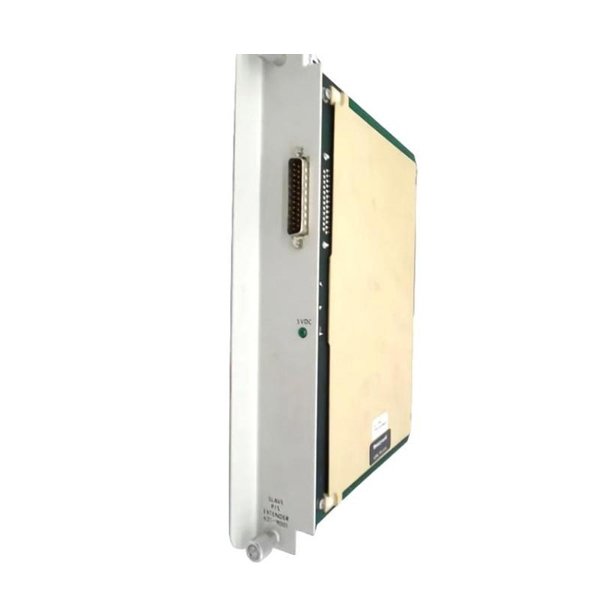

Honeywell 621-9001 Slave P/S Extender

The Honeywell 621-9001 Slave P/S Extender is a specialized power supply extension module designed to extend and distribute power from a central supply to additional slave I/O modules in Honeywell’s 620/621 process control systems. This device plays a critical role in maintaining consistent voltage and current delivery to remote I/O chassis, ensuring the integrity of control signals and enabling modular scalability.

It is a vital component for users looking to implement larger or more geographically distributed I/O configurations without compromising system performance. Designed to meet industrial-grade standards, the 621-9001 supports robust communication pathways and electrical isolation, making it suitable for operation in demanding control environments such as refineries, chemical plants, power stations, and heavy manufacturing.

Product Specifications

Product Applications

The Honeywell 621-9001 module is designed for use in power distribution architectures within large-scale and modular control systems. It’s widely implemented in:

• Distributed Control Systems (DCS) – Ensures continuous power delivery to extended I/O networks.

• Power Generation Plants – Supports redundant and distributed control units across multiple rooms or areas.

• Oil & Gas Facilities – Facilitates remote field equipment operation via stable power paths.

• Chemical Processing – Maintains power integrity for safety-critical I/O modules.

• Pulp & Paper Mills – Connects multiple automation nodes across different mill sections.

• Pharmaceutical Production – Powers high-reliability monitoring equipment and sensors in cleanrooms.

Product Advantages

• Reliable Power Extension: Efficiently delivers regulated power to remote slave I/O modules, even in complex architectures.

• Integrated Redundancy: Supports dual power feed configurations for fault-tolerant systems.

• Simplified Integration: Seamlessly fits into the Honeywell 620/621 system with minimal configuration.

• Compact Design: Small footprint suitable for dense control cabinets.

• Thermal Efficiency: Passive cooling and high heat dissipation for long-term operational stability.

• Status Monitoring: Integrated LED indicators allow immediate visual diagnosis of power states or faults.

• Electrical Isolation: Enhances system reliability by protecting connected I/O from upstream electrical anomalies.

FAQ

1. Can the 621-9001 support redundant power inputs?

   Yes, it supports dual power feeds for increased fault tolerance and continuous operation.

2. Does the module require any external configuration or programming?

   No, the module is hardware-configured and operates as a passive extender.

3. Is this module compatible with both 620 and 621 I/O systems?

   Yes, it is designed for full compatibility with Honeywell 620 and 621 I/O subsystems.

4. What protection does the module offer against overcurrent?

   The module includes electronic current-limiting features and short-circuit protection.

5. Can the module be used to power analog and digital I/O simultaneously?

   Yes, it supports both analog and digital slave I/O modules within its power rating.

6. How is fault detection communicated to the operator?

   Via onboard LED indicators and fault relay (if connected to monitoring logic).

7. What happens if one power input fails in a dual-input setup?

   The module automatically switches to the alternate power input without affecting output.

8. Is the 621-9001 hot-swappable?

   No, it must be powered down before insertion or removal to prevent system errors.

9. What cabling is recommended for the power connections?

   Shielded low-voltage DC cables with appropriate gauge depending on load and distance.

10. Can this module be used in safety-critical loops?

    Yes, it can be part of SIL-rated architectures when used in conjunction with qualified systems.
