Schneider TM3DQ16T Modicon TM3 Discrete Output Module
Manufacturer:Schneider
Product Number:TM3DQ16T
Product Type:Discrete Output Module
Origin:France
Dimensions:90 x 84.6 x 27.4 mm
Weight:0.11 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description

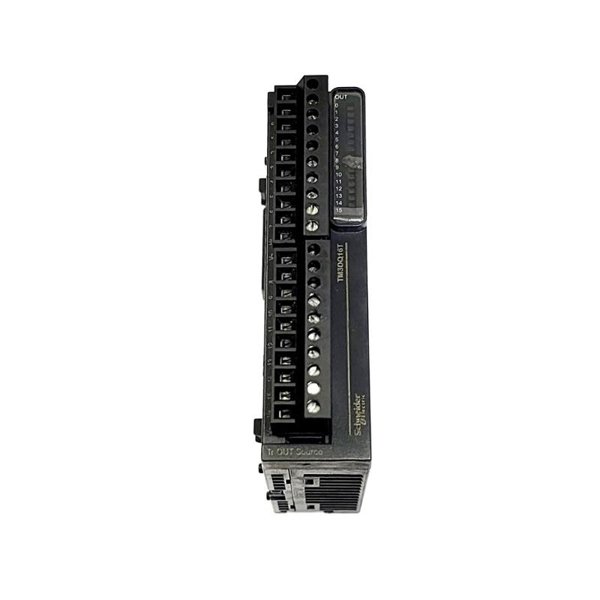

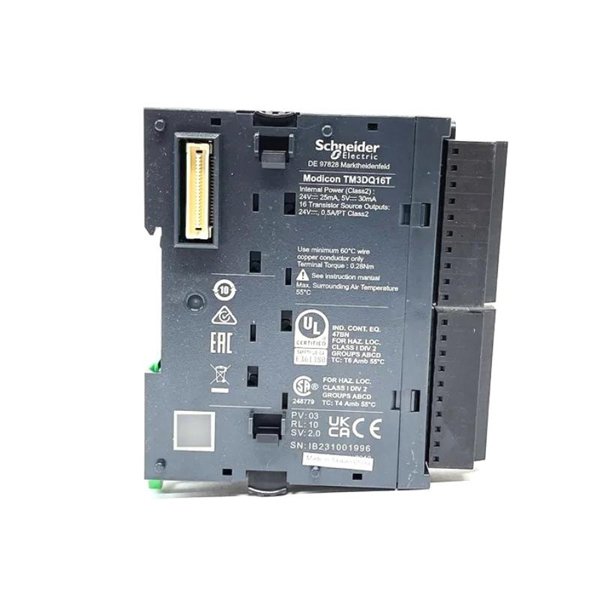

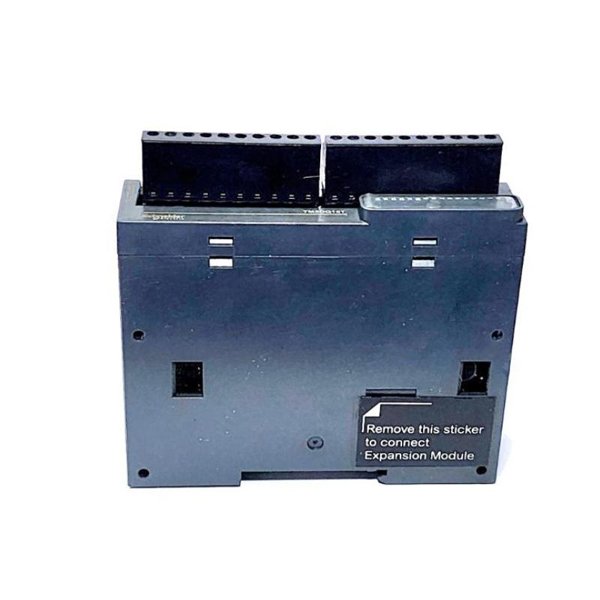

The Schneider TM3DQ16T is a discrete output expansion module designed for use with Modicon TM3 architecture. It provides 16 transistor outputs for controlling devices such as relays, contactors, and solenoids in automation systems. This module enhances the scalability and flexibility of small to medium-sized PLC configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Discrete Output Module |
| Output Type | Transistor (Sink) |
| Number of Outputs | 16 |
| Voltage Range | 24 V DC |
| Output Current per Channel | 0.5 A |
| Max Output Current (Total) | 4 A |
| Response Time | ≤ 1 ms |
| Isolation | 500 V between channels and logic |
| Connector Type | Removable Spring Terminal Block |
| Mounting Type | DIN Rail |
| Protection Type | Overload, Short-circuit |
| Dimensions (W x H x D) | 90 x 84.6 x 27.4 mm |
| Weight | 0.11 kg |
Applications
-
Industrial automation systems
-
Conveyor and packaging machines
-
Small control cabinets
-
Material handling systems
-
Light control and signaling in automated processes
Advantages
-
Compact and modular design
-
Quick DIN rail installation
-
Seamless integration with Modicon TM3 and M221/M241/M251 PLCs
-
Fast switching transistor outputs
-
Integrated protection for reliability and longevity
FAQ
Q1: What type of outputs does the TM3DQ16T provide?
A1: It provides 16 discrete transistor (sink) outputs.
Q2: Can this module be used with Modicon M221?
A2: Yes, it is fully compatible with Modicon M221, M241, and M251 PLCs.
Q3: What is the maximum output current per channel?
A3: Each output can handle up to 0.5 A.
Q4: Is it possible to mount this module on a DIN rail?
A4: Yes, the module is designed for DIN rail mounting.
Q5: Does the module include built-in protection?
A5: Yes, it includes short-circuit and overload protection.
Q6: What is the operating voltage for the outputs?
A6: The output voltage is 24 V DC.
Q7: How fast can the outputs switch?
A7: The response time is typically ≤ 1 ms.
Q8: Is this module suitable for controlling inductive loads?
A8: Yes, but external protection such as flyback diodes may be recommended.
Q9: How is the module connected to the PLC?
A9: It uses a removable spring terminal block and connects to the PLC via expansion bus.
Q10: Can I use multiple TM3DQ16T modules in one system?
A10: Yes, multiple modules can be added as part of the TM3 expansion system.
