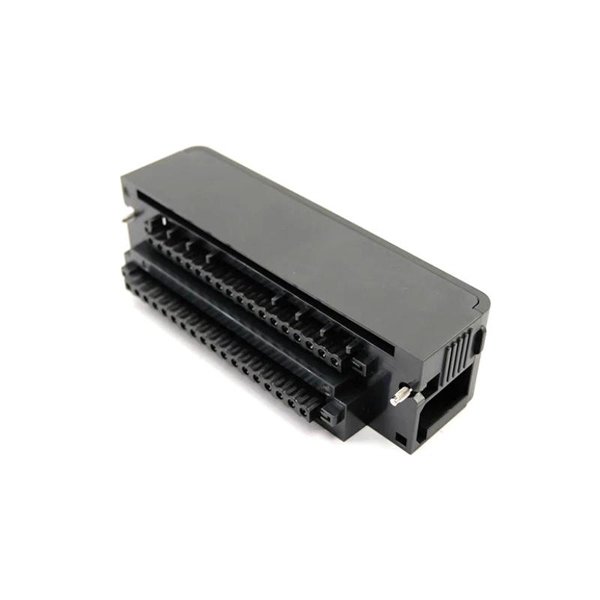

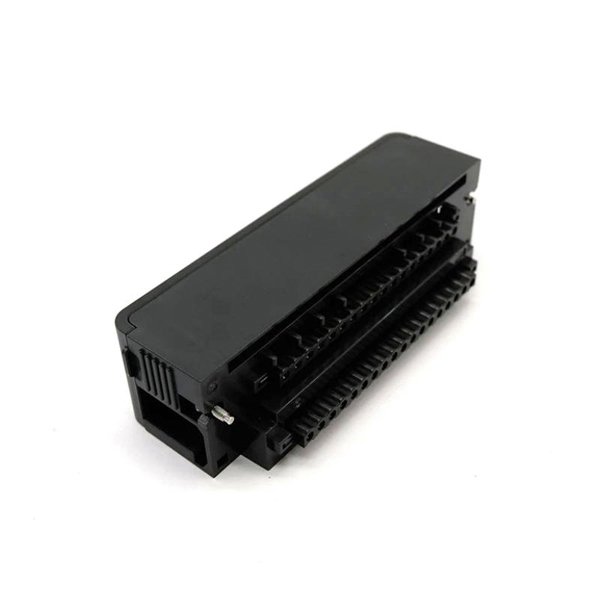

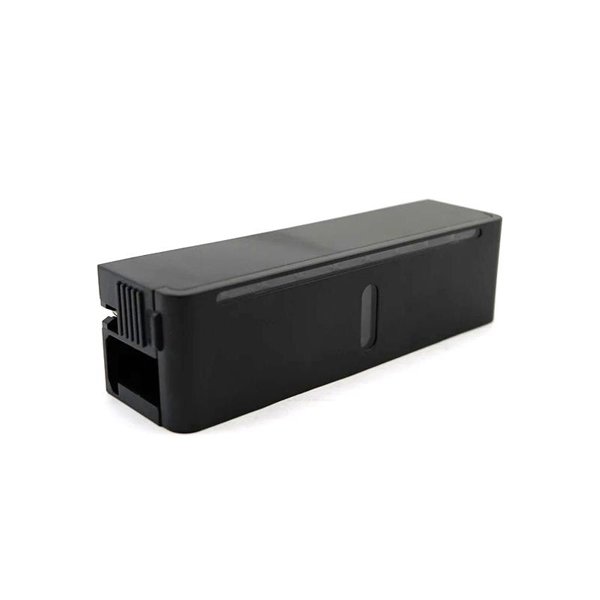

Honeywell 900TCK-0200 ControlEdge HC900 High Density Terminal Block
Manufacturer:Honeywell
Product Number:900TCK-0200
Product Type:High Density Terminal Block
Origin:USA
Dimensions:111 x 33 x 36 mm
Weight:0.39 kg
Views:50
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell 900TCK-0200 is a 36-position Euro-style high-density terminal block designed for use with ControlEdge HC900 I/O modules. It provides efficient field wiring connections within industrial automation environments, supporting compact installations with high channel density.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900TCK-0200 |
| Type | Euro Style Terminal Block (36-position) |
| Compatibility | HC900 High-Density I/O Modules |
| Terminal Connection | Screw type |
| Terminal Count | 36 positions |
| Dimensions (L x W x H) | 111 × 33 × 36 mm |
| Weight | 0.39 kg |
| Material | Industrial-grade plastic, gold-plated contacts |
| Mounting | DIN-rail |
| Voltage Handling | Low and high voltage separation compliant |
| Color Code | Red (high voltage), Black (low voltage) |
Applications
-
Process automation in chemical plants
-
Power generation and energy systems
-
Water treatment facilities
-
Pulp and paper industries
-
Pharmaceutical manufacturing
-
Batch and continuous process control systems
Product Advantages
-
Compact Design: Saves panel space with a high-density terminal arrangement.
-
Easy Integration: Designed specifically for seamless use with HC900 I/O modules.
-
Time-Saving: Reduces field wiring errors and speeds up installation.
-
Reliability: Gold-plated contacts improve connection integrity and signal reliability.
-
Serviceability: Supports hot-swapping and field power disconnect for safe maintenance.
Frequently Asked Questions (FAQ)
Q1: What I/O modules are compatible with 900TCK-0200?
A1: It is compatible with 16 AI, 8/16 AO, and 32 DI/DO ControlEdge HC900 modules.
Q2: Is the terminal block suitable for high-voltage wiring?
A2: Yes, red terminal versions are intended for high-voltage wiring safety compliance.
Q3: Can this block be DIN-rail mounted?
A3: Yes, it is designed for standard 35mm DIN rail mounting.
Q4: Are gold-plated terminals standard on the 900TCK-0200?
A4: Yes, gold-plated contacts are standard to ensure superior signal quality.
Q5: How many wires can each terminal accept?
A5: Each terminal accepts one wire, typically 12–22 AWG gauge.
Q6: Does this terminal block support removable wiring under power?
A6: No, field power should be disconnected before removing the terminal block.
Q7: What is the main benefit of using a Euro-style terminal block?
A7: It offers high contact reliability and space-saving in dense control panels.
Q8: What color coding is used for voltage distinction?
A8: Red is used for high-voltage terminals and black for low-voltage terminals.
Q9: Is the terminal block ROHS compliant?
A9: Yes, it complies with ROHS 2 directives.
Q10: Can I use this with redundant I/O configurations?
A10: Yes, it is fully compatible with HC900 redundant I/O setups.
