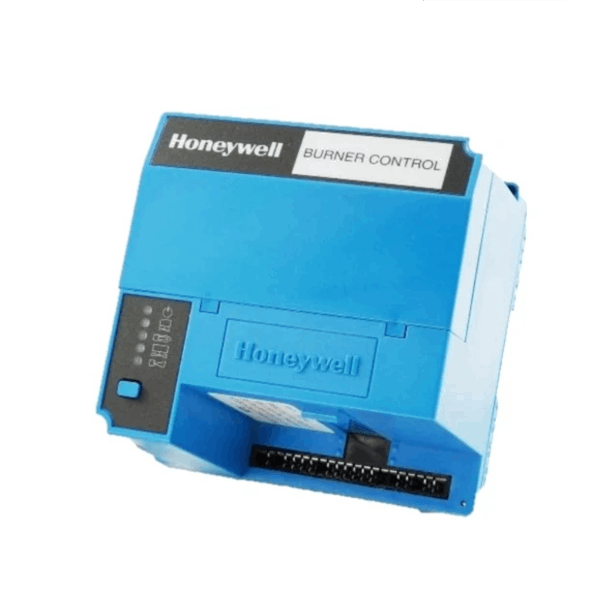

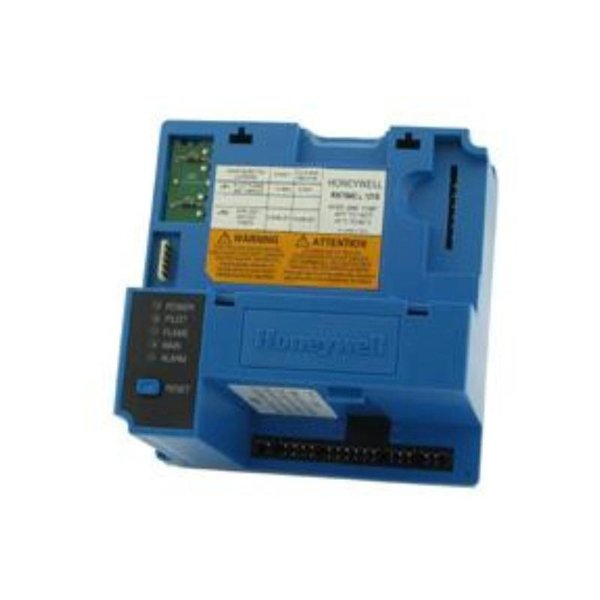

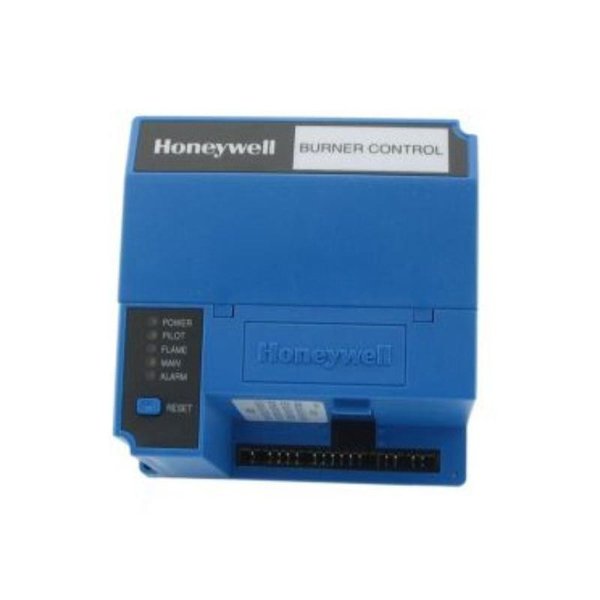

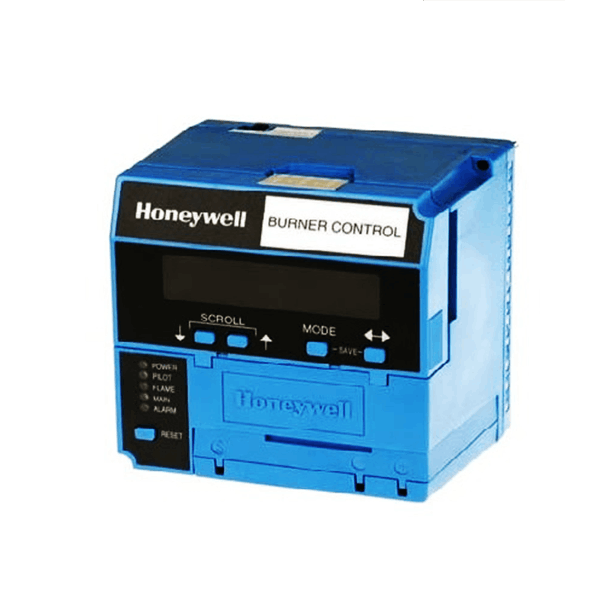

Honeywell RM7830A1011 Integrated burner control

The Honeywell RM7830A1011 is a versatile, reliable, and high-performance combustion controller used for regulating and managing the operation of industrial heating systems. It is part of Honeywell’s RM7800 series of flame safeguard controls, known for their efficiency, safety features, and easy integration into various heating applications. This model ensures smooth and secure operation of combustion processes by monitoring flame presence, proving flame safety, and controlling burner sequences.

Product Features and Advantages

• Reliable Operation: The RM7830A1011 is engineered to deliver dependable performance across a variety of industrial applications, ensuring safe and consistent control of combustion systems.

• Advanced Flame Detection: Equipped with advanced flame detection and flame safety monitoring capabilities to reduce risks of malfunctions.

• User-Friendly Interface: Features a simple and intuitive interface, making it easier for operators to monitor and adjust settings for optimal system performance.

• Durability: Built to withstand challenging industrial environments, offering long-lasting durability and low maintenance.

• Versatility: Compatible with a wide range of burner systems, offering flexibility for various combustion processes.

Specifications

Applications

The Honeywell RM7830A1011 is primarily used in industrial applications where combustion control is critical. Common uses include:

• Burner Systems: Regulates combustion for a variety of burners used in industrial processes.

• Furnace and Boiler Control: Provides flame safeguard for furnaces and boilers, ensuring efficient and safe operation.

• Process Heating Systems: Used in heating systems in manufacturing and production facilities, ensuring controlled and safe combustion.

• Oil and Gas Industry: Integral part of control systems in the oil and gas sector, ensuring optimized combustion processes.

Installation Instructions

1. Ensure Power Supply: Before installation, verify that the power supply is disconnected to avoid any electrical hazards.

2. Mount the Unit: Install the RM7830A1011 in a dry, well-ventilated location, ensuring that the combustion system is within reach for proper wiring and control.

3. Wire the Connections: Connect the device to the power supply and integrate the flame detection system according to the schematic diagram provided in the user manual.

4. Testing: After installation, test the system thoroughly to ensure that the flame detection and burner sequence control features are functioning correctly.

5. Calibration: Calibrate the system as per the manufacturer’s guidelines for optimal performance.

FAQs (Frequently Asked Questions)

1. Q: What types of flame detectors are supported by the RM7830A1011?

   • A: The RM7830A1011 supports both ultraviolet (UV) and infrared (IR) flame detectors, allowing for flexibility depending on the application.

2. Q: Can this model be used for both gas and oil burner systems?

   • A: Yes, the RM7830A1011 is compatible with both gas and oil burners, making it a versatile solution for various industrial heating needs.

3. Q: What is the operating voltage range for the RM7830A1011?

   • A: The RM7830A1011 operates within a voltage range of 120-240 V AC, suitable for both 50 and 60 Hz electrical systems.

4. Q: How does the RM7830A1011 ensure safety during operation?

   • A: The RM7830A1011 features advanced flame monitoring capabilities to detect any loss of flame and automatically shut down the burner to prevent unsafe conditions.

5. Q: Can I use this controller in extreme temperatures?

   • A: The RM7830A1011 can operate in temperatures ranging from -40°F to 140°F (-40°C to 60°C), making it suitable for harsh industrial environments.

6. Q: Is the RM7830A1011 easy to maintain?

   • A: Yes, the RM7830A1011 is designed for easy maintenance with minimal downtime. Regular checks of the flame detection system and wiring ensure continued reliable operation.

7. Q: Does this model have a digital interface for configuration?

   • A: Yes, the RM7830A1011 features a user-friendly digital interface that allows operators to monitor and adjust settings easily.

8. Q: Can the RM7830A1011 control multiple burners at once?

   • A: Yes, this model can be integrated into systems controlling multiple burners, providing comprehensive monitoring and control over complex combustion systems.

9. Q: What safety certifications does the RM7830A1011 have?

   • A: The RM7830A1011 complies with various industry safety standards, including UL (Underwriters Laboratories) and CE certifications.

10. Q: What are the common issues to look for during troubleshooting?

    • A: Common issues include improper flame detection, power supply disruptions, or malfunctioning wiring. Regular inspections can prevent these problems.
