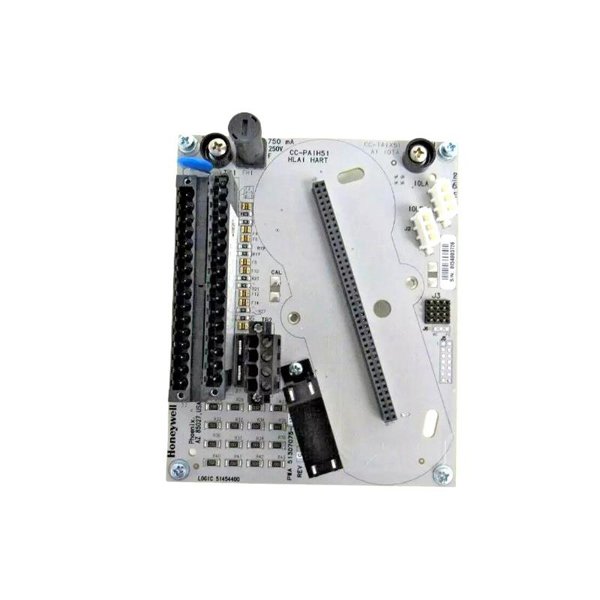

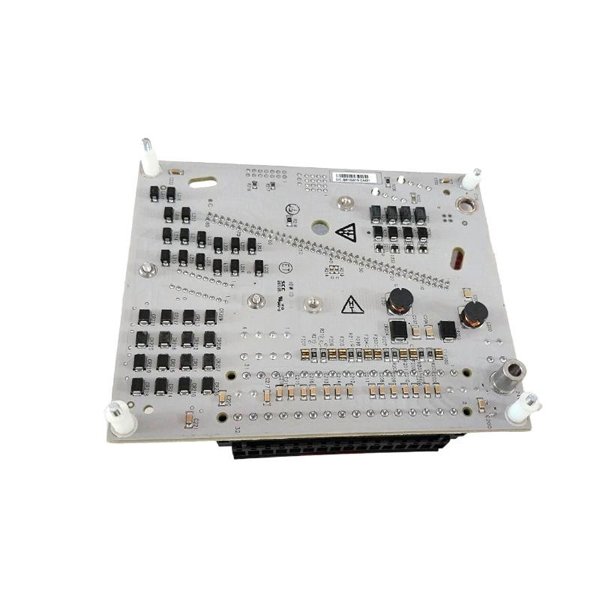

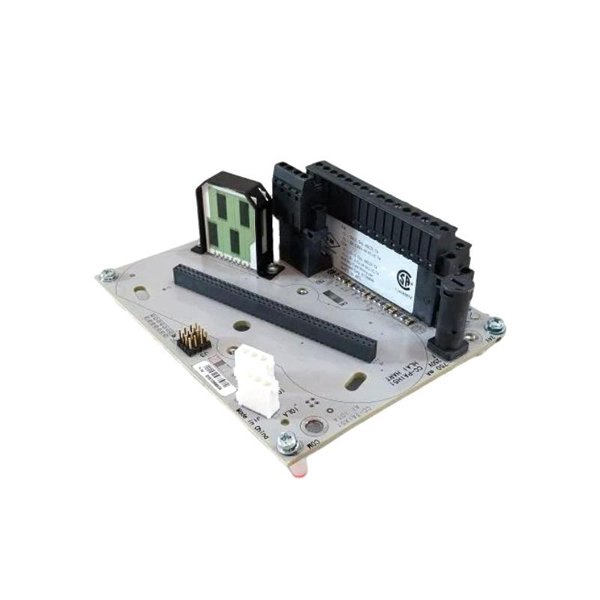

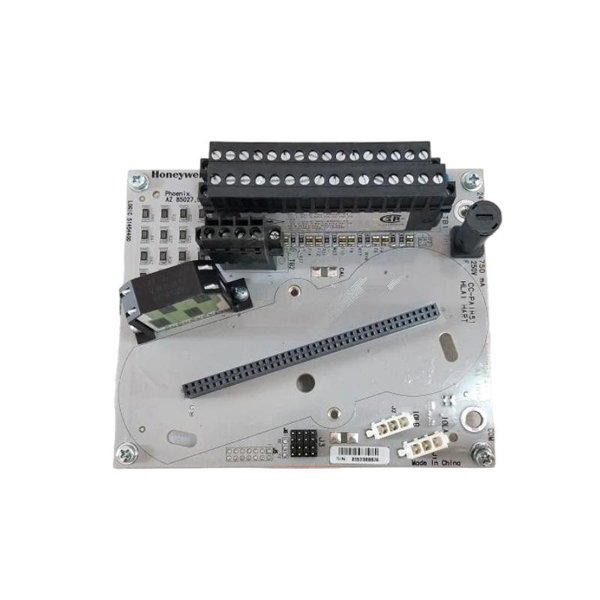

Honeywell CC-TAIX51 51307075-175 Analog Input Module

The Honeywell CC-TAIX51 51307075-175 Analog Input Module is a high-performance I/O module designed to provide precise and reliable analog signal acquisition for the Honeywell C300 Process Automation Controller (PAC) and the broader Experion Process Knowledge System (PKS). It is engineered to interface seamlessly with a wide variety of industrial sensors and transmitters, delivering accurate, real-time process data for use in advanced control and monitoring applications.

The CC-TAIX51 supports multiple analog input ranges and provides excellent noise immunity, ensuring reliable operation even in electrically noisy environments. With advanced diagnostics, automatic calibration, and hot-swappable capabilities, this module offers outstanding flexibility and maintainability for critical process industries.

Deployed in industries such as oil & gas, chemicals, pharmaceuticals, power generation, and food & beverage, the CC-TAIX51 helps improve process efficiency, reliability, and regulatory compliance while reducing overall lifecycle costs.

Product Specifications

Applications

• Distributed Control Systems (DCS): High-accuracy analog signal acquisition for Honeywell Experion PKS.

• Oil & Gas: Real-time monitoring of flow, pressure, level, and temperature sensors in production and refining.

• Power Generation: Monitoring turbine parameters, boiler instrumentation, and critical plant measurements.

• Pharmaceutical Industry: Supports GMP/FDA-compliant monitoring of environmental conditions and batch processes.

• Chemical & Petrochemical: Precise control of temperature, pressure, flow, and chemical reaction processes.

• Water & Wastewater Treatment: Monitoring pH, turbidity, and flow conditions for plant optimization.

• Food & Beverage: Ensures process consistency and quality by acquiring precise analog data.

Product Advantages

• High Channel Density: Supports up to 16 fully configurable analog input channels per module, reducing panel space requirements.

• Wide Input Range: Handles a variety of analog signals, including current loops, voltage signals, RTDs, and thermocouples.

• High Accuracy: Offers ±0.05% accuracy for precise process control.

• Built-in Diagnostics: Monitors channel health and module status to improve system reliability.

• Hot-Swappable: Allows for module replacement without shutting down the system, reducing downtime.

• Robust Isolation: 1500 VDC isolation protects against electrical interference and grounding issues.

• Scalable: Easily integrated into new or existing C300/Experion PKS installations for flexible system expansion.

• Ease of Maintenance: Advanced self-diagnostics simplify troubleshooting and maintenance procedures.

• Regulatory Compliance: CE, UL, CSA, and RoHS certified for global industrial applications.

• Industry-Proven: Deployed in thousands of process control applications worldwide, providing proven performance.

Frequently Asked Questions (FAQ)

1. What is the main function of the CC-TAIX51 Analog Input Module?

   It acquires and digitizes analog signals from field instruments for use in the C300 PAC and Experion PKS.

2. How many channels does the CC-TAIX51 support?

   It supports up to 16 analog input channels per module.

3. What types of analog signals does it handle?

   The module supports 4-20 mA, 1-5 V, RTD, and thermocouple signals.

4. Is the module hot-swappable?

   Yes, it can be replaced while the system is running without causing process interruptions.

5. How accurate is the CC-TAIX51?

   It offers ±0.05% accuracy over the configured input range.

6. Is the module isolated?

   Yes, it features 1500 VDC isolation between channels and from channels to system bus.

7. Is it compatible with older Honeywell systems?

   It is fully compatible with C300 PAC and Experion PKS systems and can often be integrated with legacy Honeywell infrastructure.

8. How is the module installed?

   It installs in the standard C300 I/O chassis alongside other I/O modules.

9. What industries commonly use this module?

   Oil & gas, power generation, pharmaceuticals, chemicals, water treatment, and food & beverage industries.

10. How often does the module require maintenance?

    Maintenance is minimal—built-in diagnostics inform users of any issues, and battery replacement is not required.
