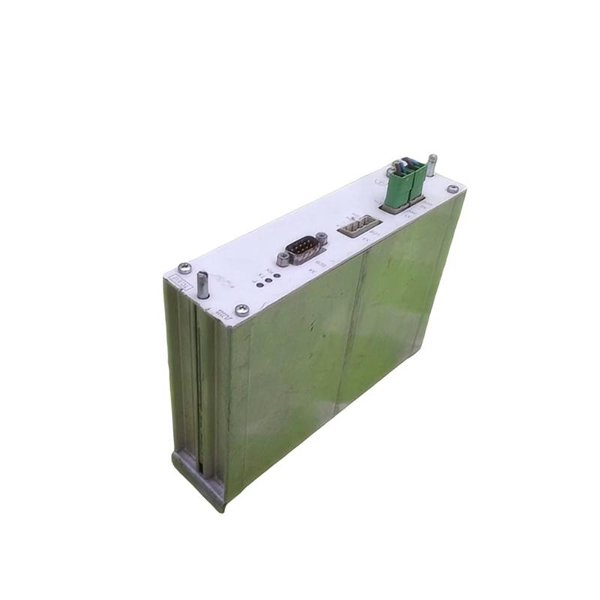

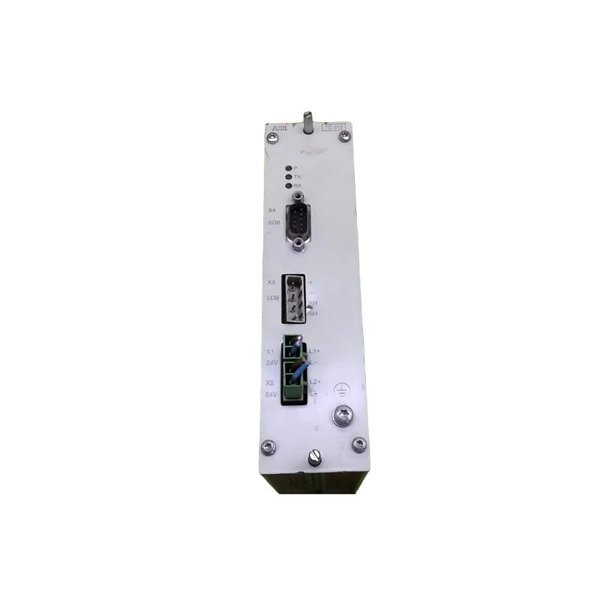

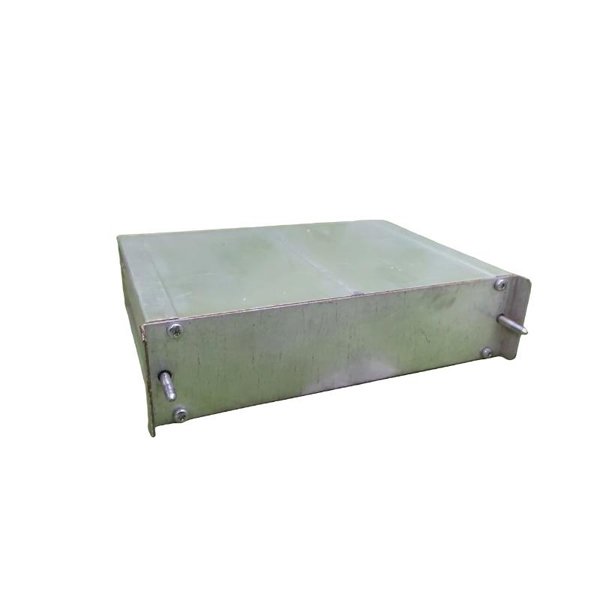

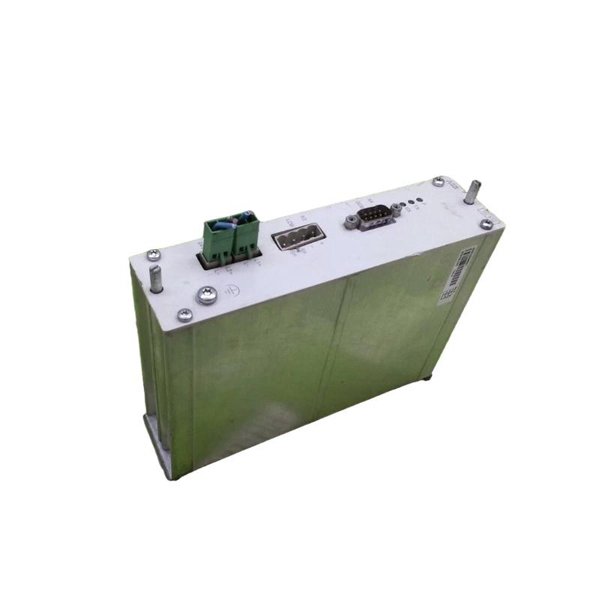

ABB TC512 3BSE006383R1 Twisted Pair Modem

The ABB TC512 3BSE006383R1 is a compact and industrial-grade Twisted Pair Modem, specifically engineered for use within ABB’s Advant Controller 800xA and AC 800M system architectures. Designed to enable long-distance, point-to-point communication between I/O clusters or controller nodes, the TC512 uses RS-485 over twisted pair cabling, ensuring reliable, noise-immune, and electrically isolated signal transmission.

The TC512 modem plays a critical role in systems requiring remote I/O expansion or segmented modular connectivity, often where environmental noise or physical separation poses challenges to signal integrity. It is a core component in applications demanding robust industrial communication, such as process plants, oil & gas installations, water treatment facilities, and power generation sites.

With its slim design, DIN-rail mounting capability, and compatibility with ABB’s existing hardware ecosystem, the TC512 is a versatile and reliable modem that helps extend and strengthen the communication backbone of distributed control systems.

Product Specifications

Product Applications

The ABB TC512 is widely deployed across industries that demand robust and extended communication between modular control units or remote I/O banks. Typical applications include:

• Process Automation in Petrochemical and Refining Plants

  Seamlessly connects remote I/O racks in hazardous or spread-out zones.

• Power Generation & Utilities

  Facilitates communication between substations or modular turbine control panels.

• Water and Wastewater Treatment Plants

  Supports long-range data exchange across remote field enclosures and pump stations.

• Mining and Heavy Industry

  Enables control signal transmission in noisy environments over extended cable runs.

• Factory Automation

  Assists in linking distributed I/O or machine control units across large production floors.

• Oil & Gas (Onshore/Offshore)

  Perfect for platform interconnections or pipeline control systems where EMI is an issue.

Product Advantages

• Reliable Long-Distance Communication

  Supports RS-485 over twisted pair cabling for distances up to 200 meters.

• Electrically Isolated Design

  Ensures system safety and protects communication hardware from surges or ground loops.

• Industrial-Grade Durability

  Designed to operate in harsh industrial environments with wide temperature ranges.

• Compact & Easy Installation

  DIN-rail mounting and small footprint make it ideal for dense control panels.

• Low Power Consumption

  Efficient design uses minimal power from the ModuleBus supply.

• Plug-and-Play Compatibility

  Seamlessly integrates into ABB AC 800M and Advant Controller systems.

• LED Diagnostic Indicators

  Built-in LED indicators provide visual feedback for troubleshooting and monitoring.

• CE and RoHS Certified

  Meets international standards for safety and environmental compliance.

• ATEX Zone 2 Ready

  Can be deployed in hazardous areas with proper protective housing.

• Modular Communication Extension

  Allows remote expansion of ABB ModuleBus networks without compromising performance.

Frequently Asked Questions (FAQ)

1. What is the primary use of the ABB TC512 modem?

   It is used to connect and extend ModuleBus networks over RS-485 twisted pair wiring.

2. How far can the TC512 transmit data?

   Up to 200 meters when using shielded twisted pair cable.

3. Can I use TC512 with non-ABB controllers?

   It is specifically designed for ABB systems and is not recommended for non-ABB use.

4. Does the TC512 require external power?

   No, it is powered directly via the ModuleBus.

5. Is this modem suitable for ATEX environments?

   Yes, when used with certified enclosures, it meets ATEX Zone 2 compliance.

6. How do I know if it’s working?

   LED indicators show the status of power and communication activity.

7. Is the communication galvanically isolated?

   Yes, which helps avoid ground loop issues and increases system reliability.

8. Can TC512 operate in high-temperature conditions?

   Yes, it operates reliably from –25°C to +70°C.

9. What is the protection class?

   The device is rated IP20 and should be installed in a protected enclosure.

10. What happens if communication fails?

    Loss of signal will typically be flagged by the system diagnostics; redundancy or replacement is recommended.
