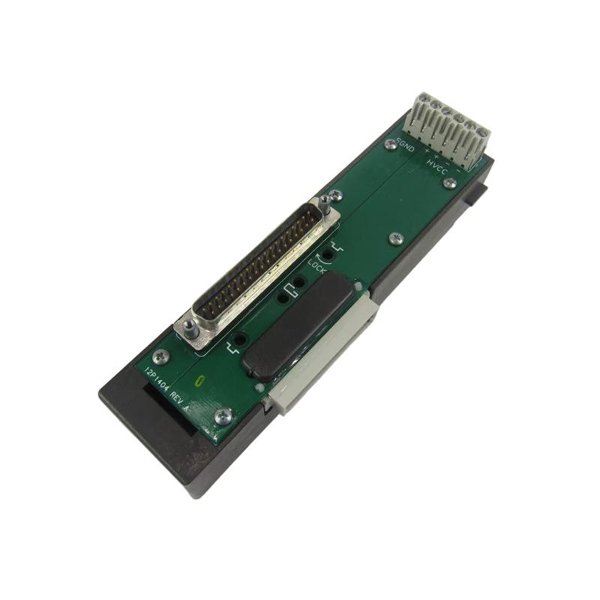

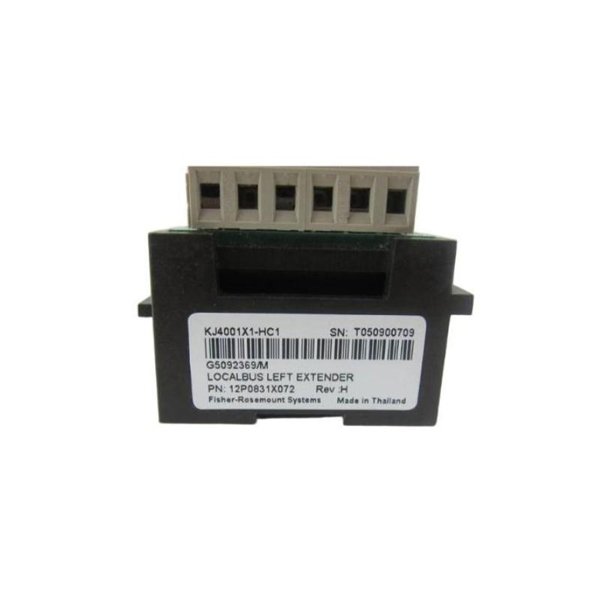

Emerson KJ4001X1-HC1 Left Expander

The Emerson KJ4001X1-HC1 Left Expander is an expansion module designed for Emerson DeltaV Distributed Control Systems (DCS). It extends the I/O capacity of a DeltaV controller by providing additional slots for I/O modules, enabling larger and more complex control system architectures. The Left Expander is engineered for seamless integration with DeltaV controllers, supporting high-speed data transfer, redundancy, and hot-swappable I/O modules to ensure continuous operation in mission-critical applications.

Key Features

• Expands DeltaV controller I/O capacity for large system configurations

• Supports hot-swappable I/O modules to reduce downtime

• Seamless integration with DeltaV controller chassis

• High-speed communication and data transfer between controller and I/O modules

• Supports redundant system architecture for enhanced reliability

• Rugged design suitable for industrial environments

• LED indicators for status and diagnostics

Technical Specifications

Industry Applications

• Oil & Gas – expanding I/O for process control in refineries and offshore platforms

• Petrochemical – large-scale control loops requiring additional I/O

• Power Generation – turbine, boiler, and generator monitoring systems

• Pharmaceuticals – batch and continuous process control with extensive I/O

• Water & Wastewater – expanding plant automation I/O capacity

Advantages

• Increases the I/O capacity of DeltaV controllers for large or complex systems

• Hot-swappable for uninterrupted system operation

• Supports redundant architecture for critical process reliability

• Robust design for industrial environments

• Provides seamless communication with the main DeltaV controller

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the KJ4001X1-HC1?

It expands the I/O capacity of a DeltaV controller by providing additional slots for I/O modules.

Q2: Can I replace I/O modules while the system is running?

Yes, it supports hot-swappable I/O modules.

Q3: Does it support redundant configurations?

Yes, it can be used in redundant DeltaV system architectures.

Q4: How does it connect to the main controller?

It connects via the high-speed backplane interface in the DeltaV controller chassis.

Q5: What is the operating temperature range?

0 °C to +60 °C.

Q6: How many I/O slots does it provide?

It adds multiple slots depending on the DeltaV controller configuration.

Q7: What indicators are available on the module?

LED indicators show module status and fault conditions.

Q8: Is it compatible with all DeltaV controllers?

It is compatible with DeltaV controller models that support Left Expander modules.

Q9: How is it mounted?

It is installed directly into the DeltaV controller chassis.

Q10: What standards does it comply with?

It complies with CE, UL, RoHS, and IEC standards.
