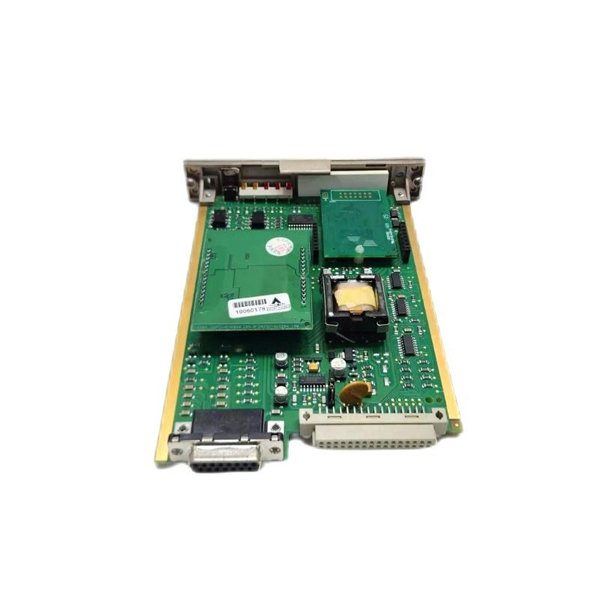

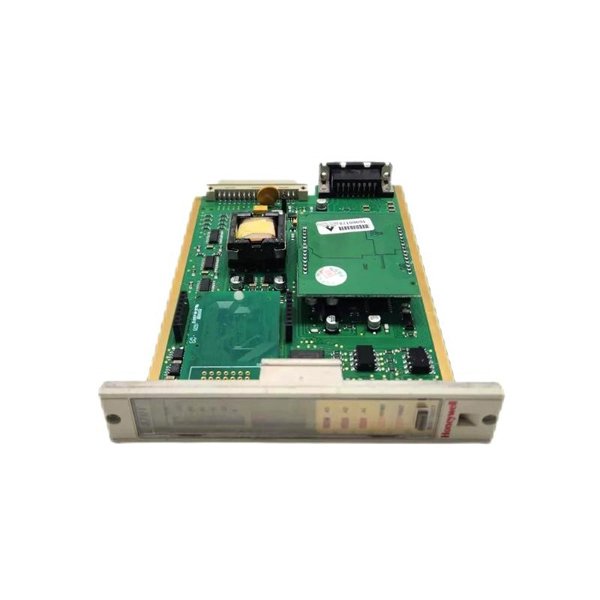

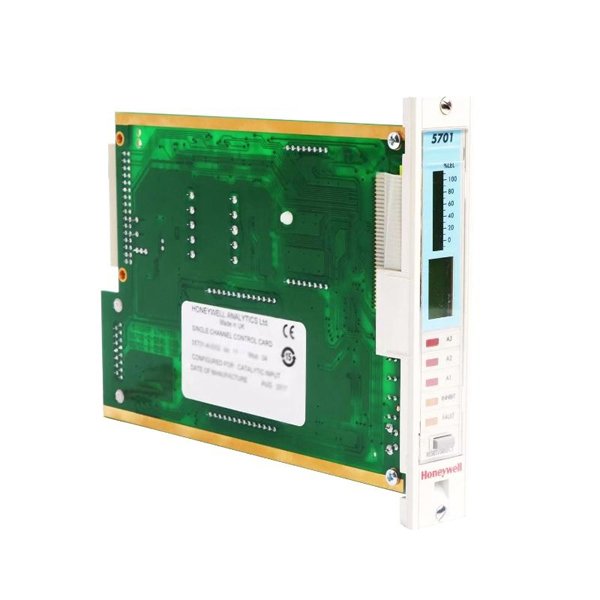

Honeywell 05701-A-0302 Single Channel Control Card

The Honeywell 05701-A-0302 Single Channel Control Card is designed for precise temperature measurement in a wide range of industrial applications. With a wide operating temperature range from -50°C to +200°C, this device provides reliable performance in challenging environments. It features an easy-to-read LCD display and is equipped with a standard 4-20 mA output, which makes it easy to integrate into process control systems. The transmitter is housed in a rugged, IP65-rated enclosure, ensuring it is protected against dust and water, making it ideal for harsh industrial environments.

Product Applications

1. Industrial Process Control: The 05701-A-0302 is ideal for use in industries such as chemical, oil, and gas for monitoring temperature in various stages of production.
2. HVAC Systems: Used in heating, ventilation, and air conditioning systems to maintain precise temperature control.
3. Power Plants: Perfect for monitoring temperatures in power generation systems to ensure operational safety and efficiency.
4. Environmental Monitoring: Suitable for tracking environmental conditions, especially in weather stations and outdoor applications.
5. Food and Beverage Industry: Helps in controlling temperatures during manufacturing and processing, ensuring optimal product quality.

Product Advantages

1. Wide Temperature Range: The 05701-A-0302 can measure temperatures between -50°C and +200°C, making it suitable for a wide variety of applications.
2. High Accuracy: With an accuracy of ±0.1% of span, the transmitter provides highly precise temperature readings.
3. Durable Construction: The IP65-rated enclosure ensures that the device is resistant to dust and water, allowing it to function in harsh environments.
4. Easy Integration: The 4-20 mA output is compatible with most control and monitoring systems, facilitating seamless integration.
5. LCD Display: The built-in LCD display provides real-time readings, making it easy to monitor temperature on-site.
6. Low Maintenance: With a robust and reliable design, the Honeywell 05701-A-0302 requires minimal maintenance.

Latest News

• March 2025: Honeywell has expanded the functionality of the 05701-A-0302, improving its integration with smart systems in industrial IoT setups, enhancing remote monitoring capabilities.
• February 2025: The 05701-A-0302 continues to be widely adopted in various industries, including chemical and petrochemical, due to its exceptional performance in temperature control.

FAQs

1. What is the maximum operating temperature for the Honeywell 05701-A-0302?

   • The maximum operating temperature is +200°C.

2. How accurate is the Honeywell 05701-A-0302 temperature transmitter?

   • The accuracy is ±0.1% of span.

3. What is the power supply requirement for this device?

   • The device requires a DC supply voltage ranging from 12V to 36V.

4. Can this transmitter be used in hazardous environments?

   • Yes, with its IP65-rated enclosure, the device can be used in harsh industrial environments, but it may need additional certifications for specific hazardous locations.

5. What type of output does the Honeywell 05701-A-0302 provide?

   • It provides a standard 4-20 mA analog output signal.

6. What are the dimensions of the Honeywell 05701-A-0302 transmitter?

   • The dimensions are 170 x 25 x 112 mm.

7. What is the weight of the Honeywell 05701-A-0302 transmitter?

   • The weight is 0.165 kg.

8. Can the Honeywell 05701-A-0302 be mounted in a panel?

   • Yes, it is designed for panel mounting.

9. What is the humidity range of the Honeywell 05701-A-0302?

   • The humidity range is 0-95% RH (non-condensing).

10. Is this transmitter easy to install and operate?

    • Yes, the device is easy to install with panel-mounting capability and features an intuitive LCD display for easy operation.
