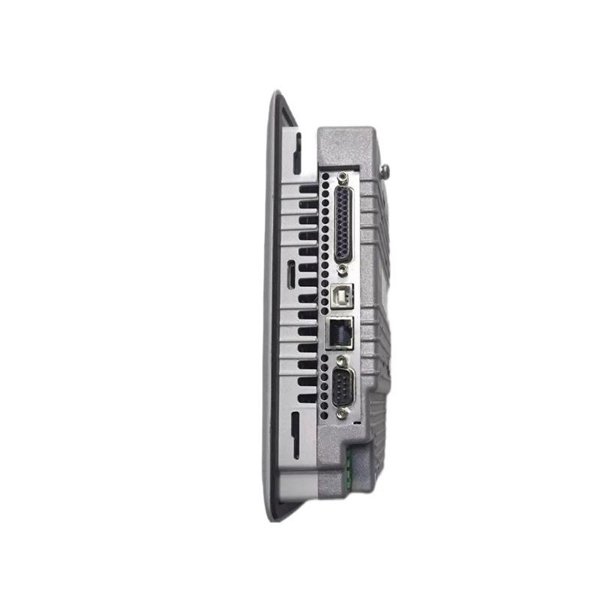

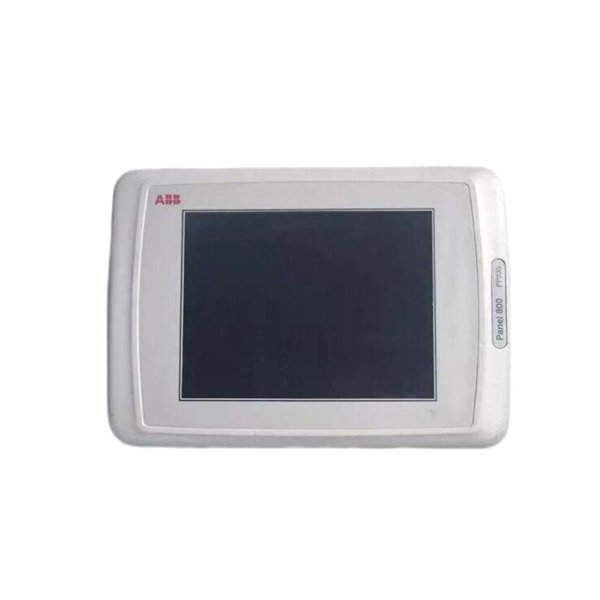

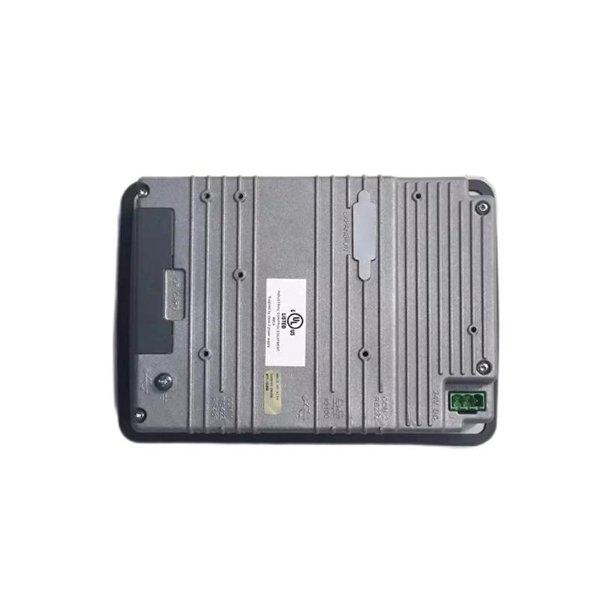

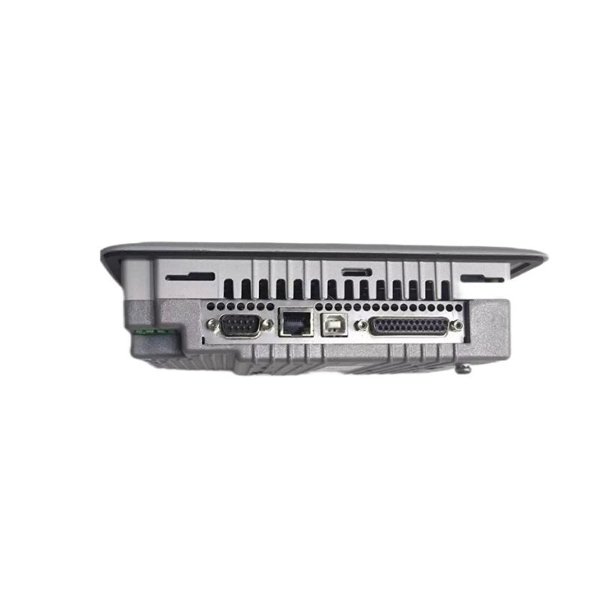

ABB PP835A 3BSE042234R2 Operation Panel

The ABB PP835A 3BSE042234R2 Operation Panel is a high-performance, industrial-grade Human-Machine Interface (HMI) developed by ABB for seamless interaction between operators and automated systems. As part of ABB’s PP800 series, the PP835A delivers a robust solution for real-time process visualization, control feedback, and data communication in demanding industrial environments.

This panel supports integration with various ABB control systems, particularly the AC 800M and 800xA automation platforms. With a sleek design, enhanced processing capability, and a reliable operator interface, it is ideally suited for control room applications as well as plant-floor installations. The panel is specifically designed to withstand rugged industrial conditions while providing clear, consistent user interaction via its tactile interface and high-resolution display.

Product Specifications

Product Applications

The ABB PP835A is widely deployed across multiple industrial sectors due to its reliability and compatibility with advanced control systems. Typical application areas include:

• Power Generation Facilities: Local monitoring and control of turbines, substations, and generator systems.

• Oil & Gas Sector: Interface for pipeline monitoring, gas compression, and refining operations.

• Metals and Mining: Used for HMI visualization in smelting, processing, and conveyor control systems.

• Pulp and Paper Mills: Offers efficient control over drying, pressing, and cutting equipment.

• Food and Beverage Manufacturing: Ensures precise control of packaging and processing machinery.

• Chemical and Petrochemical Plants: Ideal for batch process control and safety system interfaces.

The PP835A is particularly useful in centralized control rooms and on-machine operator terminals, ensuring real-time responsiveness and minimal downtime.

Product Advantages

• Robust Design: Built for harsh industrial environments, offering long operational life with minimal maintenance.

• High Visual Clarity: 12.1” TFT screen with high brightness and resolution ensures visibility under varied lighting.

• Flexible Communication: Supports multiple industrial protocols for integration into existing systems.

• Secure Front Panel: IP65-rated front ensures protection against water jets and dust.

• Seamless ABB Integration: Fully compatible with ABB’s 800xA and AC 800M platforms for efficient deployment.

• Fast Setup & Commissioning: Easy to install with standardized panel cutouts and ABB’s configuration tools.

• Low Power Consumption: Energy-efficient, consuming just 25W while delivering high processing capability.

• Longevity & Availability: Backed by ABB’s long-term support and parts availability roadmap.

Frequently Asked Questions (FAQ)

1. Q: What control systems does the PP835A support?

   A: The panel is optimized for ABB’s AC 800M and 800xA systems, but it can also work with Freelance controllers.

2. Q: Is this panel touchscreen-based?

   A: No, it uses tactile pushbuttons for user input.

3. Q: Can it be used in outdoor environments?

   A: The panel is not weatherproof but can be used outdoors when installed in a protected enclosure.

4. Q: What is the main difference between PP835A and PP826A?

   A: The PP835A has a larger 12.1” display and higher processing capabilities compared to the 10.4” PP826A.

5. Q: Does the panel require special software to configure?

   A: Yes, configuration is typically done using ABB’s Automation Builder or Panel Builder tools.

6. Q: What are the communication options available?

   A: The panel supports Ethernet, RS-232, RS-485, and various industrial protocols like MODBUS and PROFIBUS.

7. Q: Is this device RoHS compliant?

   A: Yes, it is certified for RoHS, CE, and other industrial compliance standards.

8. Q: Can it store and log process data locally?

   A: It depends on the configuration, but typically it serves as an interface and does not store large data logs independently.

9. Q: What is the service life of this panel?

   A: The PP835A is designed for 10–15 years of continuous industrial use under recommended conditions.

10. Q: Can I replace an older panel (like PP820A) with the PP835A?

    A: Yes, though minor panel cutout adjustments may be required; protocol compatibility ensures functional replacement.
