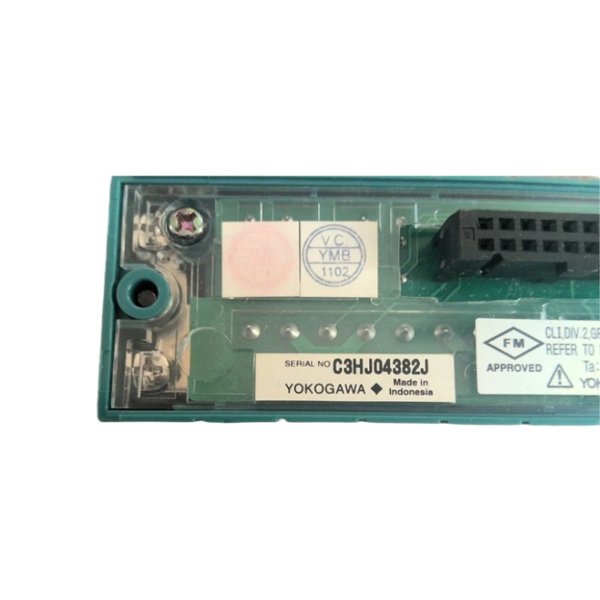

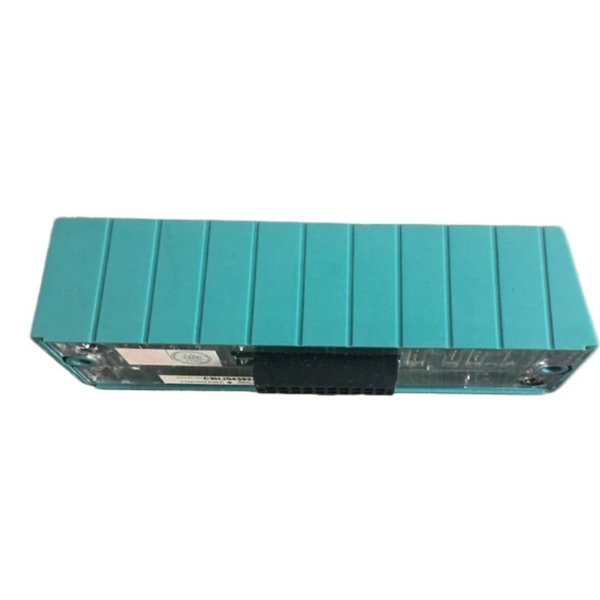

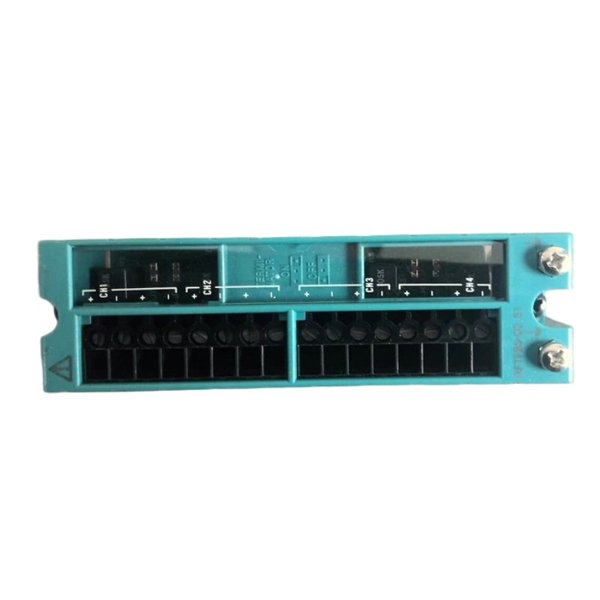

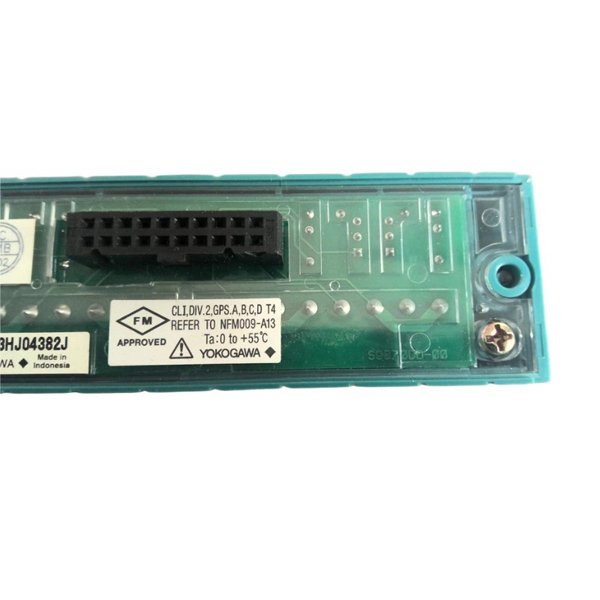

Yokogawa ATT4S-00 S2 Pressure Clamp Terminal Block

The Yokogawa ATT4S-00 S2 Pressure Clamp Terminal Block is a high-quality electrical component designed for the safe and reliable connection of electrical circuits. Featuring a pressure clamp design, this terminal block provides excellent durability and ease of maintenance, making it an ideal choice for industrial applications.

This terminal block is engineered to provide efficient and secure connections in various systems, particularly those requiring high levels of safety and performance. It offers simple installation, ease of use, and robust mechanical properties, ensuring a long service life and optimal functionality.

Product Specifications

Applications

The Yokogawa ATT4S-00 S2 Pressure Clamp Terminal Block is used in a wide range of industrial applications, including:

• Automation systems: Ensures reliable power and signal connections.

• Process control: Utilized in controlling and monitoring various process instruments.

• Energy management: Efficiently connects electrical components in energy control systems.

• Panel building: Ideal for integration into control panels for a variety of machines and systems.

• Power distribution systems: Supports safe and secure electrical connections in power distribution units.

Advantages

• Pressure Clamp Design: Ensures a secure connection, even in demanding industrial environments.

• Easy Installation: User-friendly design allows for quick and simple installation without requiring specialized tools.

• Durability: Made from high-quality, long-lasting materials to ensure a long service life.

• High Electrical Performance: Capable of handling high currents and voltages without compromising safety or efficiency.

• Wide Temperature Range: Operates effectively in a variety of temperatures, from -20°C to +85°C.

• Compact and Lightweight: Small form factor allows for space-saving installations in compact control panels or systems.

FAQ

1. What type of wire can be used with the ATT4S-00 S2 terminal block?

• Answer: The terminal block supports wires ranging from 0.5 mm² to 4 mm² in size.

2. What is the voltage and current rating for this terminal block?

• Answer: The ATT4S-00 S2 terminal block is rated for up to 1000V and 30A.

3. Can this terminal block be used outdoors?

• Answer: The terminal block is designed for industrial environments and can withstand a variety of conditions. However, it should be used in a protected location or housed in an enclosure for outdoor applications.

4. What material is used for the construction of the ATT4S-00 S2?

• Answer: The terminal block is made of high-strength plastic, offering good insulation and mechanical properties.

5. What is the temperature range of the ATT4S-00 S2?

• Answer: The operating temperature range of this terminal block is -20°C to +85°C.

6. How does the pressure clamp design improve safety?

• Answer: The pressure clamp design ensures that the wire is securely held in place, reducing the risk of accidental disconnection or poor contact under vibration or thermal expansion.

7. How easy is it to install the ATT4S-00 S2?

• Answer: The terminal block is designed for quick installation with minimal tools required, making it ideal for panel builders and maintenance personnel.

8. Can this terminal block handle high power applications?

• Answer: Yes, the ATT4S-00 S2 is rated for 30A, making it suitable for high-power applications within its rated capacity.

9. Is this terminal block compatible with other Yokogawa products?

• Answer: Yes, it is compatible with other Yokogawa components, particularly those used in process control and automation systems.

10. What is the typical application for the ATT4S-00 S2?

• Answer: It is typically used in automation systems, process control, energy management, and panel building, ensuring safe electrical connections in these applications.
