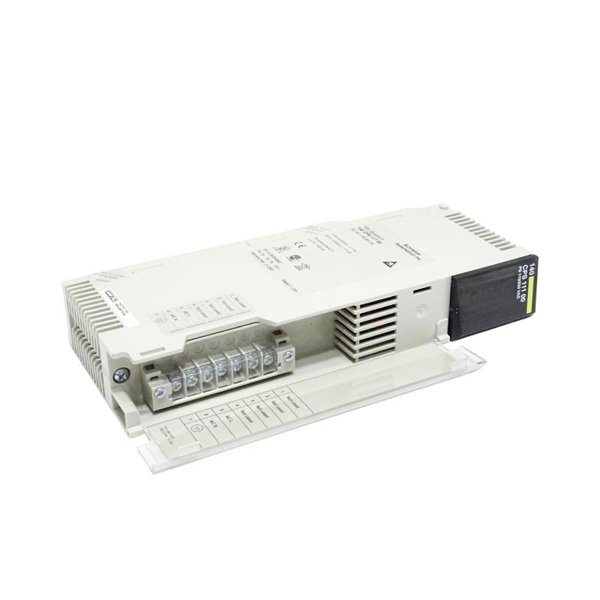

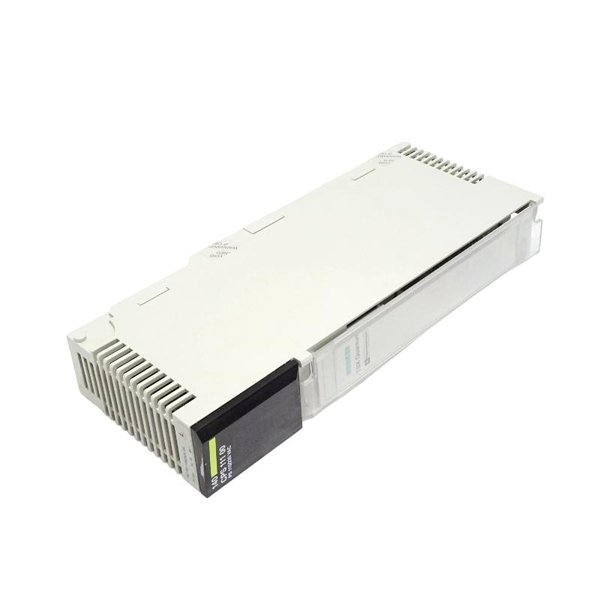

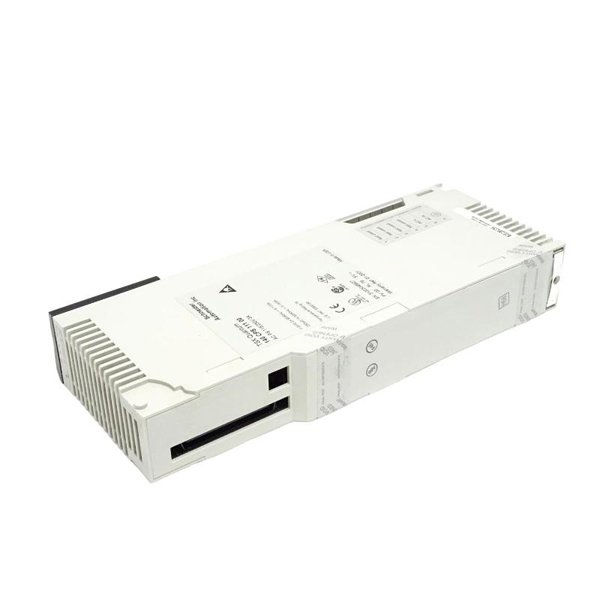

Schneider 140CPS11100C Power Supply Module

The Schneider 140CPS11100C Power Supply Module is a reliable and robust power supply designed specifically for the Modicon Quantum series of programmable logic controllers (PLCs). It provides a stable 24 V DC output to power the entire Quantum rack and its associated modules, ensuring consistent operation in demanding industrial environments.

This module is engineered for high efficiency, durability, and long service life. The 140CPS11100C supports redundancy and includes built-in protection features such as overload, short circuit, and thermal protection, making it an excellent choice for critical automation applications where uptime is paramount.

Its compact design fits seamlessly into the Quantum rack, simplifying installation and maintenance without compromising on performance. This power supply module supports a wide range of industrial automation sectors, enabling smooth and uninterrupted control system operation.

Product Specifications

Applications

The 140CPS11100C Power Supply Module finds its place in a variety of industrial automation setups where consistent power delivery is essential:

• Industrial Process Control: Powering PLC racks in chemical, pharmaceutical, and petrochemical plants.

• Manufacturing Automation: Ensuring stable power for machinery control systems.

• Energy and Utilities: Powering control systems in power plants and water treatment facilities.

• Oil & Gas: Supplying reliable power for automation equipment in upstream and downstream applications.

• Building Automation: Powering control modules in large commercial buildings and infrastructure.

• Material Handling: Used in conveyor and sorting systems for continuous operation.

• Food & Beverage Industry: Supporting automated packaging and processing lines.

• Mining and Metals: Providing power in harsh and demanding environments.

Advantages

• Reliable Power Delivery: Stable 24 V DC output ensures smooth operation of connected PLC modules.

• Built-In Protection: Protects against overload, short circuits, and thermal issues, enhancing system safety.

• High Efficiency: Minimizes energy loss and heat generation, reducing operational costs.

• Compact Design: Fits easily into the Quantum chassis without consuming excessive space.

• Wide Input Range: Compatible with global power standards, making it suitable for various industrial regions.

• Extended Operating Temperature: Functions reliably in environments from 0°C to +60°C.

• Long Service Life: Designed for continuous industrial use with minimal maintenance.

• Easy Installation: Rack-mounted for quick and straightforward setup.

• Compliance: Certified to international safety and performance standards (CE, UL, CSA).

• Compatibility: Fully integrates with Modicon Quantum PLC systems and accessories.

Frequently Asked Questions (FAQ)

1. What is the output voltage of the 140CPS11100C?

   The output voltage is a stable 24 V DC.

2. What is the maximum output current of this power supply?

   It can supply up to 5 amperes of current.

3. Can this module handle input voltages from different regions?

   Yes, it supports 120–240 V AC at 50/60 Hz, compatible worldwide.

4. Does it provide protection against electrical faults?

   Yes, it includes overload, short circuit, and thermal protection.

5. What is the operating temperature range?

   It operates reliably between 0°C and +60°C.

6. Is this power supply compatible with all Modicon Quantum racks?

   Yes, it is designed specifically for Modicon Quantum series PLC racks.

7. How big is the module?

   The dimensions are 50 x 165 x 315 mm.

8. What certifications does it hold?

   It is CE, UL, and CSA certified.

9. Can this module be installed easily?

   Yes, it is designed for simple rack-mounted installation.

10. What is the expected lifespan of the module?

    It is designed for industrial-grade durability and long service life under normal operating conditions.
