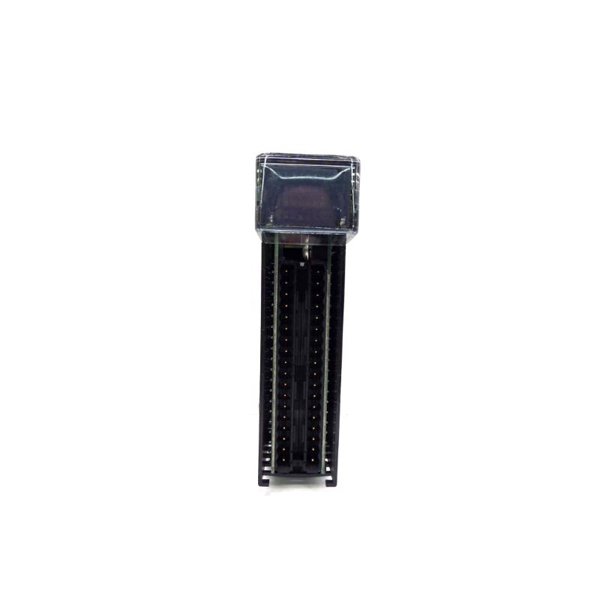

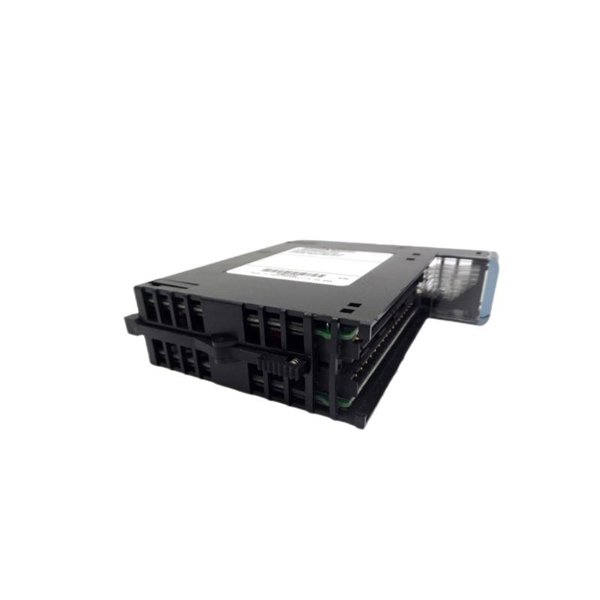

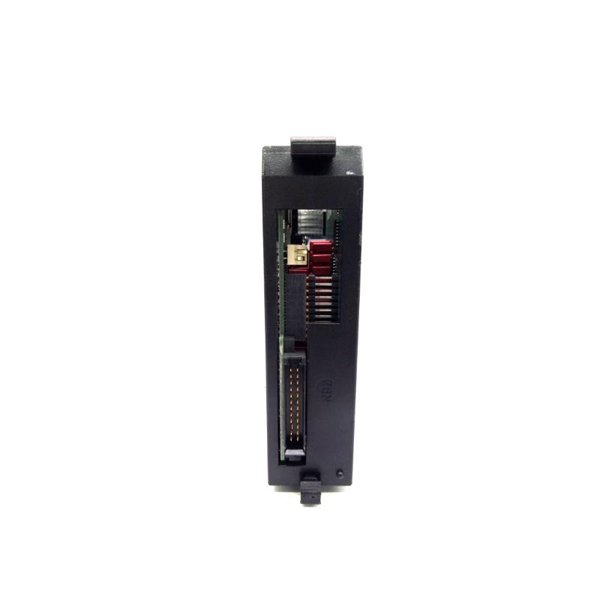

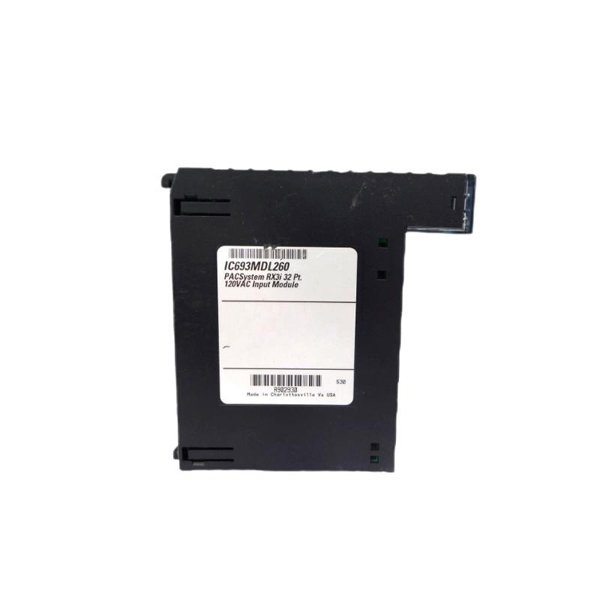

General Electric IC693MDL260 Input Module

The GE IC693MDL260 is a 120/240 Volt AC Discrete Input Module designed for use with the GE Series 90-30 Programmable Logic Controller (PLC) system. This module enables the PLC to receive ON/OFF signals from field devices, such as push buttons, limit switches, and other discrete control inputs. With 120/240 VAC compatibility and 16 input points arranged in two isolated groups, the IC693MDL260 is engineered to provide reliable and high-speed digital input operations in industrial control systems.

This module is ideal for demanding industrial automation environments where robust AC input support and isolation are critical. The design ensures efficient input signal processing and provides reliable interface capabilities to AC-based field devices.

Product Specifications

Applications

The IC693MDL260 module is commonly deployed in various industrial automation systems, especially in sectors requiring high-reliability AC input interfacing. Typical applications include:

• Factory Automation Systems

• Material Handling Systems

• HVAC Control Panels

• Water Treatment Plants

• Packaging Lines

• Pulp and Paper Mills

• Power Distribution and Monitoring

• Machine Tools and Robotics

• Food and Beverage Processing

• Infrastructure Monitoring Systems

Its compatibility with both 120V and 240V AC input signals allows it to function in a wide variety of international and domestic industrial environments.

Advantages

• Dual-Voltage Support: Accepts both 120 VAC and 240 VAC inputs, offering global applicability.

• High Isolation Protection: Built-in electrical isolation protects both the PLC and field equipment.

• Modular Design: Easy integration with Series 90-30 racks allows scalable and flexible system design.

• Status LEDs: Clear indication of input status simplifies troubleshooting and diagnostics.

• Rugged Construction: Designed for harsh industrial conditions with temperature and humidity resistance.

• Reduced Wiring Complexity: Group isolation reduces cross-interference and simplifies wiring.

• Plug-and-Play Integration: Seamless use within GE Fanuc Series 90-30 PLC systems.

• Long Lifecycle Support: Proven reliability with continued support in industrial automation markets.

Frequently Asked Questions (FAQ)

1. What type of input signals does the IC693MDL260 support?

   It supports AC input signals at 120 or 240 volts, with frequencies between 47 and 63 Hz.

2. Can this module be used with DC input signals?

   No. The IC693MDL260 is designed exclusively for AC voltage inputs.

3. How many input points does the module have?

   It has 16 discrete input points, arranged in two groups of 8.

4. Is the module hot-swappable?

   No, for safety reasons, the module should not be removed or inserted while powered.

5. What kind of isolation does this module provide?

   It provides 1500 VAC isolation between the field and the logic side, and group-to-group isolation.

6. Does it require external power for the inputs?

   No, the inputs are powered by the AC voltage signals coming from field devices.

7. What PLC series is this module compatible with?

   It is designed for use with GE Fanuc Series 90-30 PLCs.

8. Is it compatible with GE VersaMax or RX3i systems?

   No, it is intended specifically for Series 90-30 and not natively compatible with VersaMax or RX3i.

9. How are field wires connected to the module?

   Through a removable terminal block for easier maintenance and replacement.

10. Can I use it in high-vibration environments?

    Yes, the module is rugged and suitable for industrial applications, but adherence to GE installation guidelines is essential.
