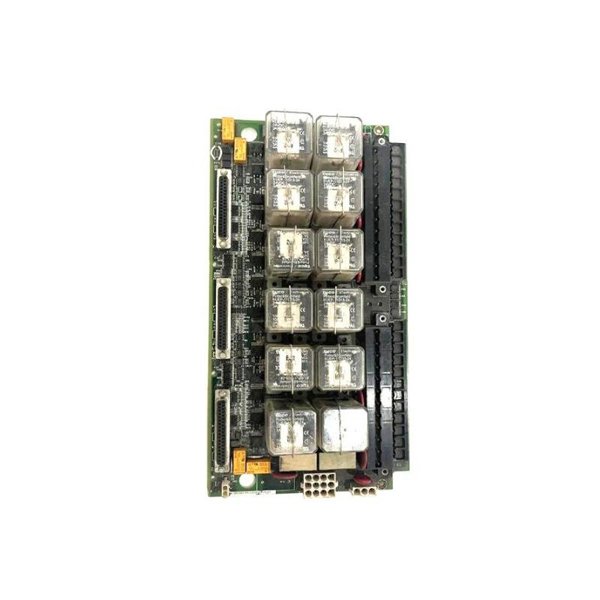

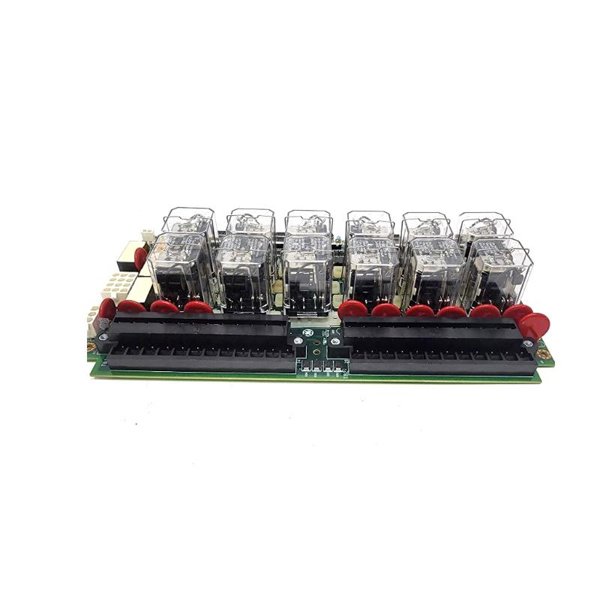

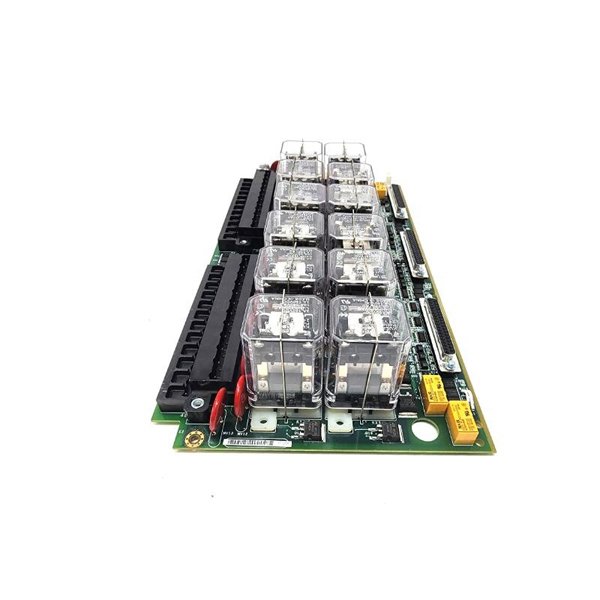

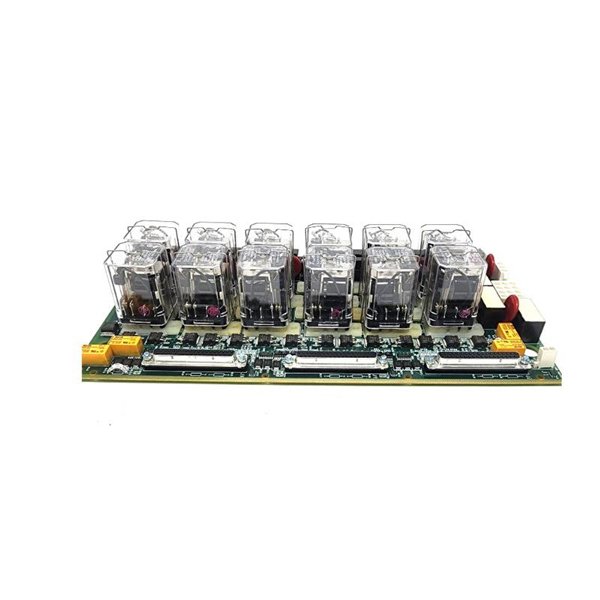

General Electric IS200TREGH1B Mark VI Series Turbine Emergency Terminal Board
Manufacturer:GE
Product Number:IS200TREGH1B
Product Type:Turbine Emergency Terminal Board
Origin:USA
Dimensions:178 x 330.2 x 43 mm
Weight:0.907 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS200TREGH1B is an emergency terminal board in the Mark VI Series, used in gas and steam turbine control systems. It provides vital connection interfaces for trip functions, enhancing the safety and shutdown reliability of turbine operations.
The IS200TREGH1B board is a passive I/O interface terminal board that routes emergency trip signals from the turbine to the controller. It supports manual and automatic trip circuit connections, ensuring quick response in hazardous or failure conditions.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IS200TREGH1B |
| Series | Mark VI |
| Function | Emergency Trip Terminal Board |
| Mounting Type | Panel-Mounted |
| Number of Channels | 10 Trip Inputs |
| Redundancy Support | Yes |
| Connector Type | Terminal Strip |
| Material | Industrial-grade PCB |
| Operating Temp Range | -30°C to +65°C |
| Storage Temp Range | -40°C to +85°C |
| Dimensions (mm) | 178 x 330.2 x 43 |
| Weight | 0.907 kg |
Applications
-
Gas turbine emergency trip systems
-
Steam turbine protection circuits
-
Process industry safety controls
-
Power plant shutdown systems
-
Redundant trip logic configuration
Product Advantages
-
High Reliability: Ensures dependable emergency shutdown signaling.
-
Redundant Compatibility: Supports redundant control configurations.
-
Ease of Integration: Seamlessly connects with Mark VI controllers.
-
Compact Design: Space-saving with efficient terminal layout.
-
Wide Temperature Range: Suitable for harsh environments.
Frequently Asked Questions (FAQ)
Q1: What is the function of the IS200TREGH1B board?
A1: It transmits emergency trip signals to the Mark VI controller for turbine shutdown procedures.
Q2: Is the IS200TREGH1B board compatible with redundant configurations?
A2: Yes, it supports redundant trip signal paths.
Q3: Can this board be used for both gas and steam turbines?
A3: Yes, it’s suitable for both gas and steam turbine emergency applications.
Q4: How many trip input channels are available?
A4: It supports 10 trip input channels.
Q5: What type of connectors does it use?
A5: It uses terminal strips for secure wiring connections.
Q6: What’s the operating temperature range?
A6: The operating range is from -30°C to +65°C.
Q7: Is the board designed for panel mounting?
A7: Yes, it is designed to be mounted on a control panel.
Q8: Does it include any active electronic components?
A8: No, it is a passive terminal board.
Q9: Can the board be replaced without shutting down the entire system?
A9: That depends on system design; in many cases, it is replaceable during maintenance windows.
Q10: What is the part’s dimension and weight?
A10: Dimensions are 178 x 330.2 x 43 mm, and it weighs 0.907 kg.
