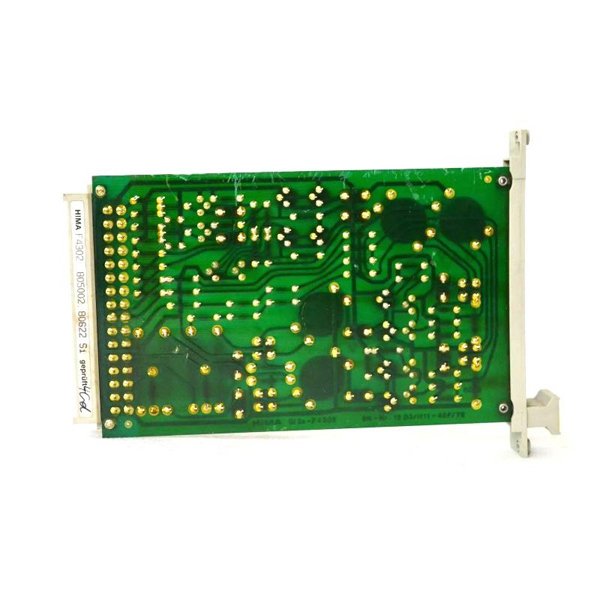

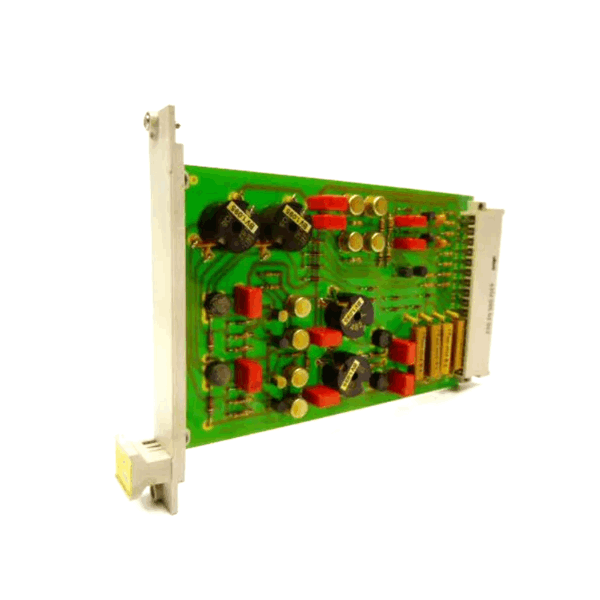

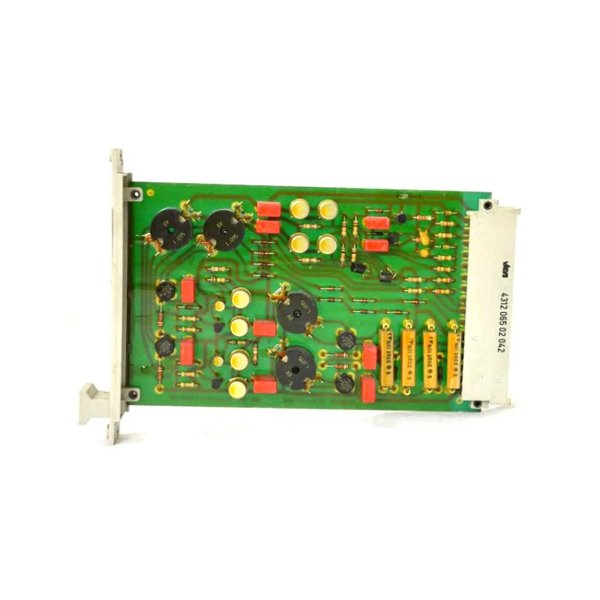

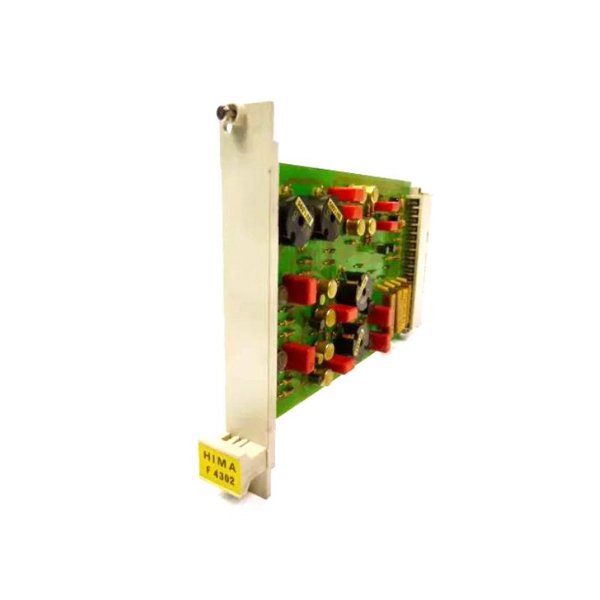

Hima F4302 4 Channel Blocking Door

The HIMA F4302 4 Channel Blocking Door is a high-performance safety module designed for critical industrial automation and control applications. This module provides secure and reliable blocking functions, preventing unauthorized access to hazardous zones. It is an essential component in safety systems, ensuring compliance with international safety standards such as SIL 3 (IEC 61508). The F4302 is widely used in applications where controlled access and blocking mechanisms are required, such as industrial process safety, machine guarding, and emergency shutdown systems.

With four independent channels, the HIMA F4302 offers flexible configurations for various safety interlocking scenarios. Its compact design allows easy integration into existing safety architectures, making it an ideal choice for high-reliability applications in industries like oil & gas, power generation, chemical processing, and manufacturing.

Product Specifications

Product Applications

1. Industrial Process Safety: Ensures controlled access to hazardous areas in refineries, chemical plants, and manufacturing units.

2. Emergency Shutdown (ESD) Systems: Acts as an access restriction mechanism to prevent unsafe entry during shutdown events.

3. Machine Guarding & Safety Interlocks: Provides multi-channel blocking functions for machinery and robotics systems.

4. Power Plant Safety: Prevents unauthorized access to high-voltage equipment and restricted zones.

5. Oil & Gas Safety Control: Used in pipeline and offshore platform safety systems to restrict access during hazardous conditions.

6. Fire & Gas (F&G) Safety Systems: Plays a critical role in isolating high-risk zones in case of gas leaks or fire emergencies.

7. Railway Signaling & Control: Prevents unauthorized access to control areas, ensuring railway operational safety.

Product Advantages

• Multi-Channel Design: Supports four independent blocking channels, allowing flexible safety configurations.

• High Safety Integrity: SIL 3 certification ensures compliance with the highest safety standards.

• Fast Response Time: Reacts in less than 10 milliseconds, enabling real-time safety actions.

• Compact and Durable Construction: Space-efficient design with robust industrial-grade housing.

• Easy Integration: Compatible with existing safety automation systems and programmable logic controllers (PLCs).

• Extended Temperature Range: Operates reliably in extreme industrial environments.

• Redundancy & Reliability: Built for high-reliability applications, ensuring fail-safe operation.

• Wide Industry Application: Suitable for various industrial sectors, including oil & gas, power plants, and manufacturing.

Frequently Asked Questions (FAQ)

1. What is the primary function of the HIMA F4302 module?

   The F4302 is a 4-channel safety blocking module designed to restrict access to hazardous areas in industrial environments.

2. Is the HIMA F4302 certified for SIL 3 applications?

   Yes, it is SIL 3 certified according to IEC 61508, ensuring high reliability in safety-critical applications.

3. What industries typically use the HIMA F4302?

   It is widely used in oil & gas, power generation, chemical processing, manufacturing, and railway safety applications.

4. How fast does the module respond to safety signals?

   The response time is less than 10 milliseconds, ensuring quick and reliable safety actions.

5. Can the F4302 be integrated into existing safety systems?

   Yes, it is designed for seamless integration with industrial safety systems, including PLCs and ESD systems.

6. What is the operating temperature range of the HIMA F4302?

   It operates between -20°C and +60°C, making it suitable for harsh industrial conditions.

7. What type of mounting does the F4302 require?

   It is designed for DIN rail mounting, ensuring easy installation in control panels.

8. What is the weight of the HIMA F4302 module?

   The module weighs 0.1 kg.

9. Does the F4302 module support redundancy?

   Yes, it is designed with redundancy capabilities to enhance system reliability.

10. What are the available communication interfaces for this module?

    The module integrates with industrial communication protocols via safety controllers and PLCs.
