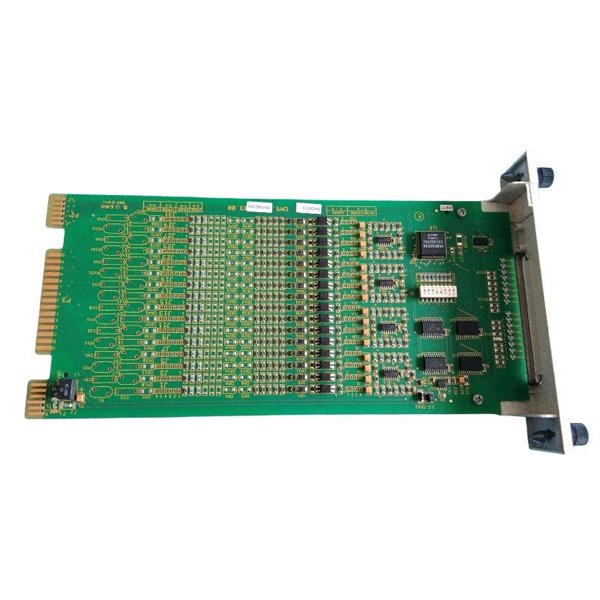

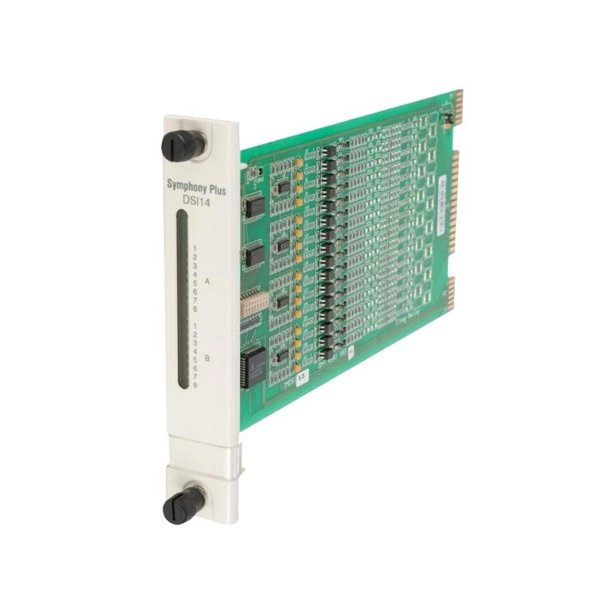

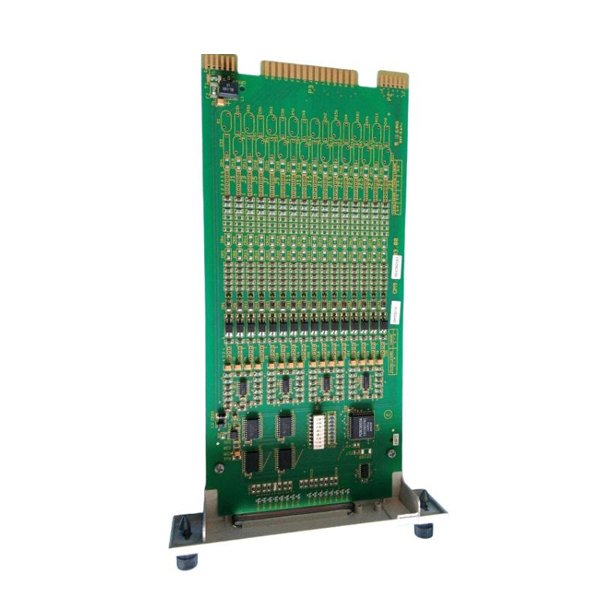

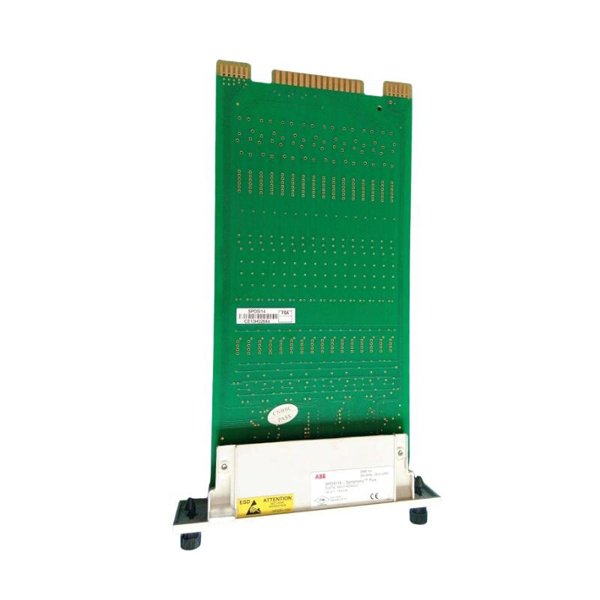

ABB Bailey SPDSI14 16-channel Digital Input Module

The ABB Bailey SPDSI14 is a 16-channel Digital Input Module engineered for seamless integration within the Bailey INFI 90 and Symphony Distributed Control Systems (DCS). As a key I/O component, this module enables the reliable detection of discrete signals from field equipment — including pushbuttons, limit switches, interlocks, contactors, and more.

Designed to support large-scale industrial automation, the SPDSI14 captures high-speed digital transitions with exceptional noise immunity and galvanic isolation. Its compact architecture and field-proven reliability make it ideal for legacy system upgrades and modern control system expansions. Whether deployed in power plants, refineries, chemical plants, or process facilities, the SPDSI14 ensures real-time digital signal acquisition with minimal latency.

Backed by ABB’s engineering heritage, the SPDSI14 enhances plant-wide visibility and control, helping operators make data-driven decisions that boost efficiency and safety.

Technical Specifications

Product Applications

The SPDSI14 Digital Input Module is deployed in a wide range of industrial automation environments to collect binary state data from field equipment. Its primary use cases include:

• Thermal and Nuclear Power Plants

  For detecting limit switch status, breaker positions, and turbine interlocks.

• Oil & Gas Facilities

  Collects digital signals from emergency shut-off systems, pressure switches, and pipeline interlocks.

• Chemical and Petrochemical Processing

  Used in safety systems, valve status monitoring, and batch automation processes.

• Water & Wastewater Management

  Tracks pump status, level switch inputs, and control cabinet alarms.

• Metals and Mining Operations

  Interfaces with crushers, conveyor belts, and remote I/O panels for real-time control.

• Pulp & Paper Plants

  Provides feedback on safety gates, control relays, and high-speed machine sequences.

Product Advantages

• High-Density I/O

  16 digital inputs per module for space-efficient system design.

• Channel Isolation

  Optical isolation enhances safety and prevents signal cross-talk or ground loops.

• Status Monitoring

  Onboard LEDs provide quick visual confirmation of channel state and operation.

• Fast Response Time

  Sub-5 ms input processing for high-speed automation tasks.

• Field-Proven Reliability

  Deployed globally in ABB’s industrial control environments with excellent service history.

• Flexible Mounting

  Compatible with DIN rail and rack-mounted systems for versatile installation.

• Legacy Compatibility

  Ideal for extending or modernizing existing Bailey INFI 90/Symphony systems.

• Minimal Configuration Required

  Designed for plug-and-play integration with ABB DCS tools.

• Noise Immunity

  Engineered to withstand EMI/RFI noise common in industrial settings.

Frequently Asked Questions (FAQ)

1. Can the SPDSI14 detect both normally open and normally closed contact signals?

   Yes. The SPDSI14 can detect both NO and NC contact signals, as long as they fall within the supported voltage and current parameters.

2. What happens if one of the input channels receives a floating or unstable signal?

   The module is designed with input filtering and threshold detection to reject transient or noisy signals. However, stable 24 VDC input is recommended for accurate detection.

3. Is there any configuration required for assigning channels to the control logic?

   Channel assignment is handled through the ABB DCS configuration environment, where each channel can be logically mapped to specific control functions or alarms.

4. Are the input channels individually isolated?

   Yes, each digital input is optically isolated, ensuring signal separation between channels and from the system ground.

5. Can this module be used in redundant control architectures?

   Absolutely. The SPDSI14 can be implemented within redundant controller configurations and works with dual ICI communication for high availability.

6. Does the module detect signal loss or cable disconnection?

   While it doesn’t actively monitor for open-wire faults, loss of signal will result in the input reverting to its default (low) state, which can be used in logic for fault detection.

7. How are the input channels physically connected to the module?

   The SPDSI14 uses field terminal blocks for each channel, typically through a plug-in terminal strip for secure and maintenance-friendly wiring.

8. Can multiple SPDSI14 modules be used in the same control system?

   Yes. You can install and configure multiple SPDSI14 modules in one node, expanding digital input capacity as needed.

9. Are debounce functions supported to eliminate false triggers?

   Yes. Input signal conditioning is managed through system settings, and debounce timing can be configured in the control logic to avoid chatter.

10. Is the module suitable for high-speed event detection applications like turbine trips or machine stops?

    Yes. With a response time under 5 milliseconds, the SPDSI14 is fast enough to capture critical discrete events in real-time process environments.
