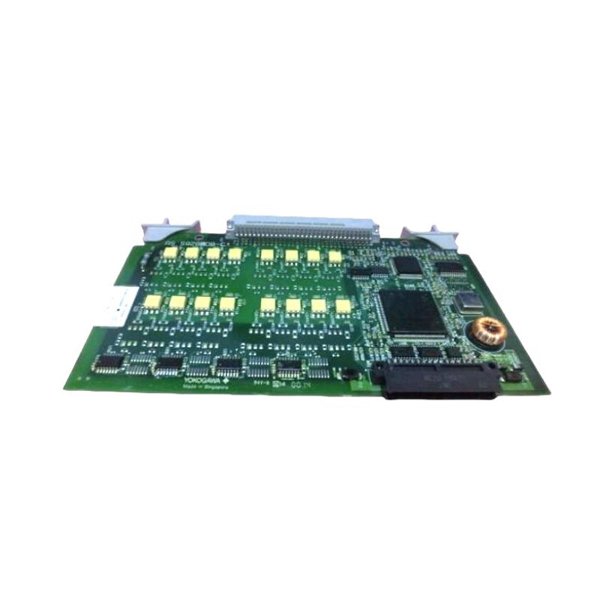

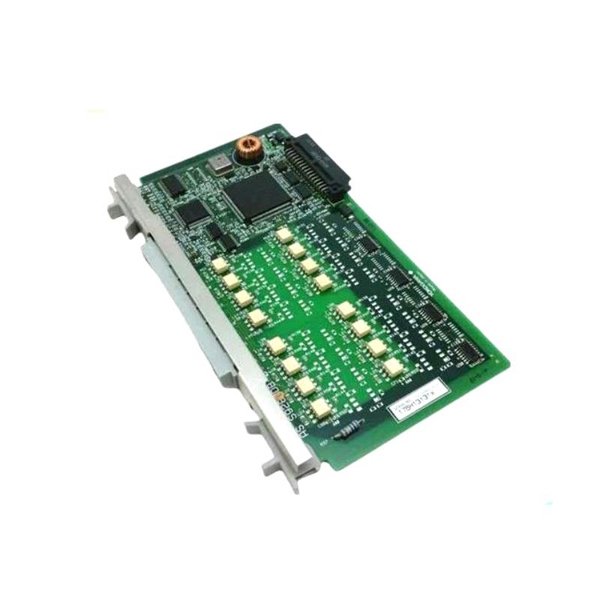

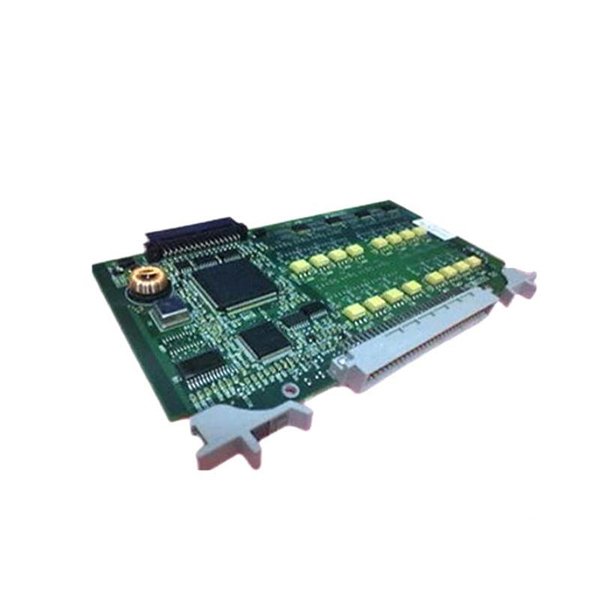

Yokogawa ADM51-2 Contact Input Module

The Yokogawa ADM51-2 is a high-performance contact input module designed to integrate seamlessly into industrial automation systems. It provides reliable monitoring and control for various types of processes by accepting contact signals from a wide range of input devices. The module is widely used in applications where discrete input signals, such as switches, sensors, and alarms, need to be monitored. This module is built for high durability and ease of installation, making it suitable for demanding industrial environments.

Product Specifications

Here are the key specifications of the ADM51-2 Contact Input Module:

Product Applications

The Yokogawa ADM51-2 Contact Input Module is used across various industrial applications that require discrete contact inputs to be monitored. Some key applications include:

• Process Control Systems: The ADM51-2 can receive input signals from sensors, switches, and alarms in process control systems, ensuring accurate monitoring and control.

• Machine Monitoring: Ideal for industrial machinery where contact-based signals are crucial for machine status monitoring and fault detection.

• Building Automation: The module can integrate into building automation systems to monitor various devices such as HVAC systems, lighting, and security devices.

• Alarm Systems: The ADM51-2 can be used in safety systems to receive input from alarms, ensuring timely actions are taken when triggered.

• Robotic Systems: The module is ideal for use in robotic systems, where it collects and processes contact inputs from external sensors or triggers.

Product Advantages

The ADM51-2 Contact Input Module offers several key benefits:

1. High Channel Density: Supports 16 contact input points, providing flexibility for a wide range of applications in industrial automation systems.

2. Compact Design: The module features a compact design that allows it to be installed in tight spaces while still delivering high performance.

3. Isolation between Channels: The ADM51-2 includes signal isolation between channels, preventing signal interference and improving system reliability.

4. Energy Efficient: With a low power consumption of only 250 mA max at 24 V DC, the ADM51-2 helps in reducing overall system energy consumption.

5. Wide Operating Range: The module operates across a wide temperature range (-10°C to +60°C), ensuring reliability even in harsh industrial environments.

6. Easy Installation: The module is designed for DIN rail mounting, making it easy to integrate into existing setups without the need for additional equipment.

7. Robust Construction: Built with durable materials, the ADM51-2 is designed to withstand the wear and tear of continuous operation in industrial environments.

Frequently Asked Questions (FAQs)

1. What is the primary function of the Yokogawa ADM51-2 Contact Input Module?

   The ADM51-2 is designed to receive discrete contact signals from external devices such as switches and sensors, allowing monitoring and control within industrial automation systems.

2. How many contact input points does the ADM51-2 support?

   The ADM51-2 supports 16 contact input points.

3. What is the power consumption of the ADM51-2?

   The ADM51-2 consumes a maximum of 250 mA at 24 V DC.

4. What is the response time of the module?

   The typical response time is 10 ms.

5. Can the ADM51-2 module be used in hazardous environments?

   The ADM51-2 is suitable for use in industrial environments but should not be directly exposed to hazardous chemicals, moisture, or extreme temperatures beyond its operating range.

6. What is the mounting type for the ADM51-2?

   The ADM51-2 is designed for easy installation on a DIN rail.

7. What is the operating temperature range of the ADM51-2?

   The module operates in a temperature range of -10°C to +60°C.

8. What kind of input voltage does the ADM51-2 require?

   The ADM51-2 requires a nominal input voltage of 24 V DC.

9. What are the typical applications for the ADM51-2?

   It is used in process control systems, machine monitoring, alarm systems, building automation, and robotic systems.

10. Does the ADM51-2 support signal isolation?

    Yes, the ADM51-2 supports isolation between channels, ensuring that signals are not interfered with across channels.
