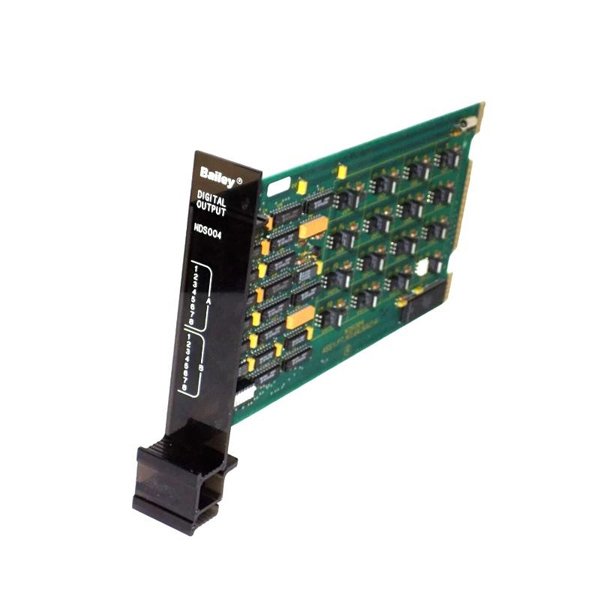

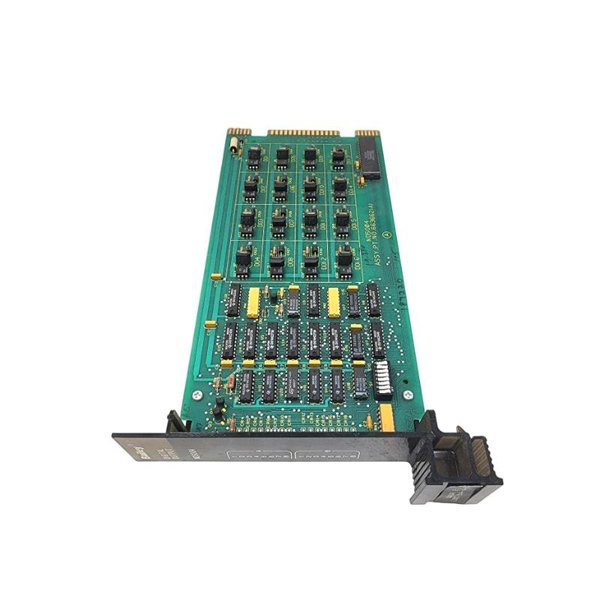

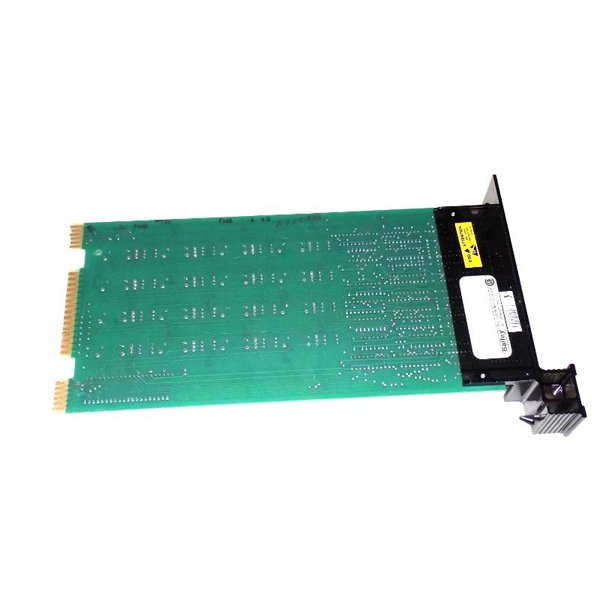

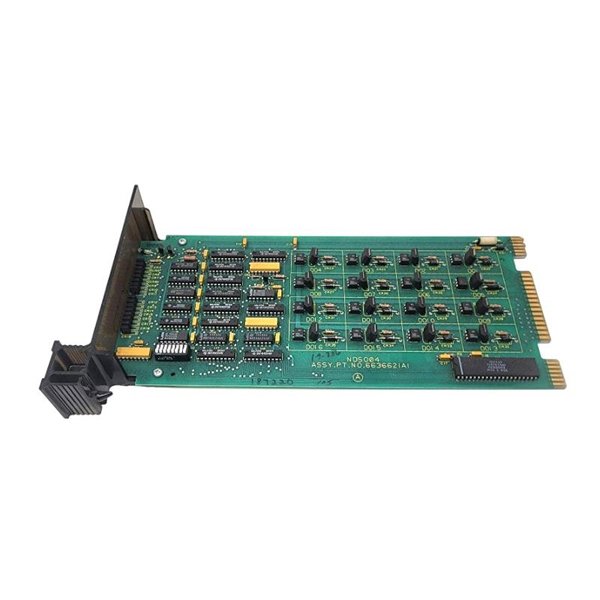

ABB Bailey NDSO04 Digital Slave Output Module

The ABB Bailey NDSO04 Digital Slave Output Module is a highly dependable digital output module designed for the INFI 90 Distributed Control System (DCS), one of the most established and trusted control system platforms used in heavy industries. This module acts as a digital signal interface between the controller and field devices, allowing for discrete output commands to be executed in real time.

Specifically, the NDSO04 module provides 16 digital output channels, which are used to control field equipment such as motor starters, contactors, pilot lights, alarms, interlocks, and other discrete actuators. Each output is individually controlled by the system processor and is monitored to ensure correct operation, adding a layer of reliability to mission-critical applications.

The NDSO04 is designed with robust signal integrity and galvanic isolation, making it suitable for high-noise industrial environments. With its strong reliability record, the NDSO04 is an essential module for distributed control networks across sectors such as oil & gas, chemicals, power generation, and metals processing.

Technical Specifications

Product Applications

The ABB NDSO04 module is widely utilized across a variety of industrial environments due to its ability to reliably handle discrete digital outputs. Key applications include:

• Power Generation

  Used for controlling relay logic, turbine auxiliaries, boiler operations, and backup safety mechanisms.

• Oil & Gas Processing

  Manages critical control elements such as emergency shutdown valves, compressors, and fire detection annunciators.

• Chemical and Petrochemical

  Interfaces with tank level switches, safety interlocks, and manual override buttons in distributed safety systems.

• Metals and Mining

  Activates conveyor drives, hoists, fans, and other discrete outputs in processing lines.

• Pulp and Paper

  Controls dryer sections, paper feeders, cutter mechanisms, and conveyor belt starters.

• Water & Wastewater Management

  Activates gate valves, pumps, chlorination units, and SCADA interface relays.

Product Advantages

1. Proven Reliability

   Designed for continuous operation in mission-critical environments, the NDSO04 is field-tested across decades of deployments.

2. High Channel Density

   16 outputs per module optimize panel space and reduce hardware costs for large installations.

3. Individual Channel Monitoring

   Each channel provides LED status indicators to simplify diagnostics and field maintenance.

4. Electrical Isolation

   Full isolation minimizes risk from voltage transients and enhances operational safety.

5. Compact Rack Design

   Fits seamlessly into standard Bailey INFI 90 racks without additional adapters or converters.

6. Extended Lifecycle Support

   Compatible with both legacy and hybrid ABB control architectures, aiding in plant modernization.

7. Resistant to Harsh Conditions

   Performs reliably in high humidity, temperature variance, and EMI-prone environments.

8. Minimal Downtime

   Designed for fast replacement and quick fault localization to keep systems operational.

9. Strong ABB Ecosystem Integration

   Supports smooth integration with other ABB modules and DCS engineering tools.

10. Global Support and Service

    Backed by ABB’s worldwide presence, ensuring easy access to technical help and spare parts.

Frequently Asked Questions (FAQ)

1. What is the primary function of the NDSO04 module?

   It provides 16 digital output signals to control field devices like relays, lights, and solenoids.

2. Can this module be replaced while the system is powered?

   No. The module is not hot-swappable; power-down is required before installation or removal.

3. Is the NDSO04 compatible with the INFI 90 DCS only?

   Yes, it is specifically designed for use with ABB Bailey INFI 90 systems.

4. How can I monitor the status of individual outputs?

   Each output channel includes a dedicated LED for visual feedback on active/inactive status.

5. What protections are included for the outputs?

   Each channel includes short-circuit and current-overload protection.

6. What kind of field devices can it control?

   Typical devices include relays, contactors, solenoid valves, and audible/visual alarms.

7. Does the module require any special configuration tools?

   Configuration is performed through the INFI 90 engineering workstation using ABB tools.

8. Is the module certified for industrial use?

   Yes, it meets CE, UL, CSA standards and is ABB factory-certified for DCS environments.

9. What happens if one channel fails?

   Fault isolation is possible at the channel level, allowing the system to continue running.

10. Can this module be used in redundant control configurations?

    Yes, when deployed in dual-redundant INFI 90 architectures, it supports high availability.
