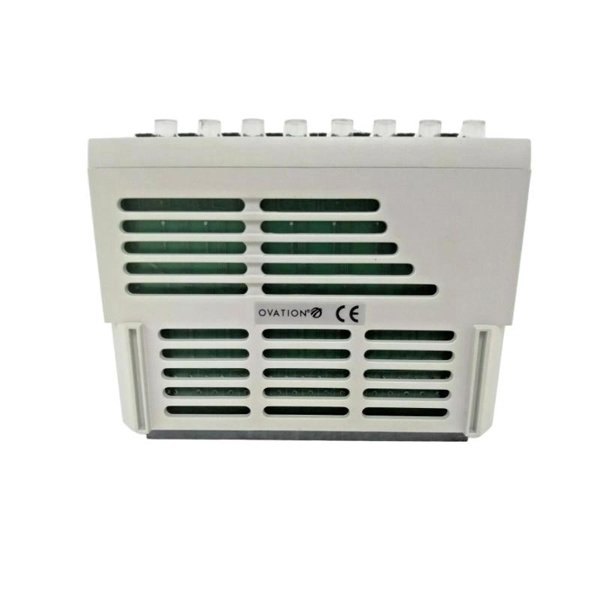

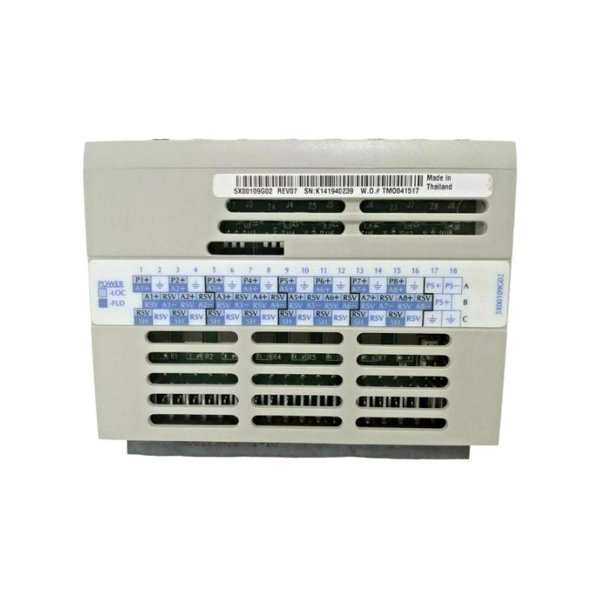

Ovation 5X00109G02 High Performance Analog Input Module

The Ovation 5X00109G02 is a high-performance analog input module designed for Emerson’s Ovation Distributed Control System (DCS). This module is engineered to provide precise and reliable acquisition of analog signals from industrial process instruments. It enhances signal integrity and accuracy by employing advanced conversion technology, making it ideal for critical control applications where data quality and reliability are paramount.

With support for multiple analog input types and increased resolution, the 5X00109G02 is widely used in demanding environments such as power generation, water treatment, and chemical processing. Its robust design, combined with tight integration into the Ovation ecosystem, ensures seamless communication and easy maintenance.

This module is built for long-term operational stability, providing operators with consistent real-time data necessary for optimizing process control and achieving high efficiency.

Product Specifications

Product Applications

The Ovation 5X00109G02 module is designed for precision signal acquisition in various demanding industrial scenarios:

• Power Generation Facilities

  Monitors key analog parameters like temperature, pressure, and flow in turbines, boilers, and cooling systems.

• Water and Wastewater Treatment

  Supports real-time measurement of chemical concentrations, flow rates, and pH levels for treatment optimization.

• Oil & Gas Industry

  Interfaces with field instruments measuring pressure and temperature in pipelines, compressors, and storage tanks.

• Chemical and Petrochemical Processing

  Captures accurate signals from reactors, distillation columns, and dosing pumps to control complex processes.

• Environmental Monitoring

  Records temperature, humidity, and other environmental parameters for regulatory compliance.

• Industrial Automation Systems

  Provides analog inputs for controlling machinery, actuators, and feedback loops.

Product Advantages

• Superior Accuracy

  Enhanced 16-bit resolution delivers precise measurement and reduces noise for better control decisions.

• High Sampling Rate

  Fast sampling ensures timely data updates, supporting dynamic process control.

• Excellent Isolation

  Each channel is isolated, protecting against interference and cross-talk between signals.

• Reliable Diagnostics

  Self-test and fault detection improve system uptime and ease troubleshooting.

• Compact and Modular

  Space-efficient form factor enables high channel density within Ovation I/O racks.

• Easy Integration

  Fully compatible with Ovation DCS software and hardware, supporting hot-swappable operation.

Frequently Asked Questions (FAQ)

1. What input signal types does the 5X00109G02 support?

   It supports standard analog signals: 0–5 V, 0–10 V, and 4–20 mA.

2. Is each input channel configurable independently?

   Yes, channels can be configured individually for different signal types and ranges.

3. Can the module be replaced without shutting down the system?

   Yes, it supports hot-swapping in the Ovation I/O rack.

4. How does the module indicate a fault condition?

   Status LEDs on the module and Ovation system alarms signal faults or channel failures.

5. What is the typical accuracy of this module?

   The module typically achieves ±0.05% of full scale accuracy.

6. Does it offer any protection against electrical noise?

   Yes, it provides isolation between channels and shielding to reduce noise impact.

7. What is the recommended maintenance routine?

   Periodic inspection of connections and verifying calibration at system intervals is recommended.

8. Can it be used in harsh industrial environments?

   Yes, it operates reliably in temperatures from 0°C to 60°C and is designed for industrial use.

9. How often should the module be calibrated?

   Factory calibration is stable, but annual system calibration ensures continued accuracy.

10. Is firmware update required or supported on this module?

    Firmware management is handled at the controller or system level rather than the module itself.
