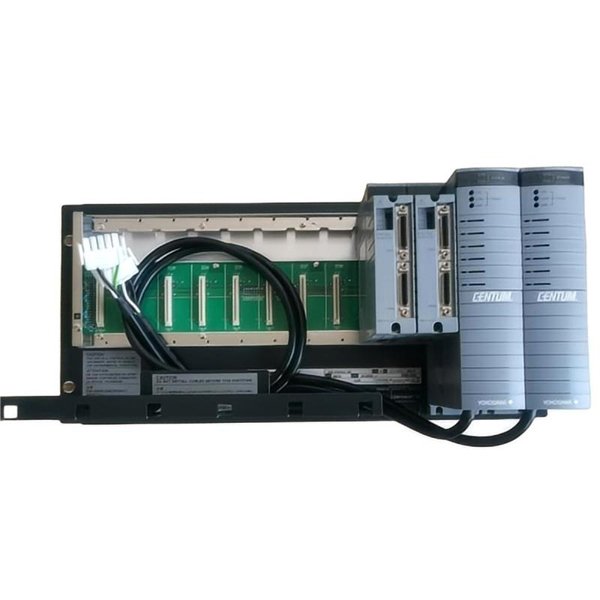

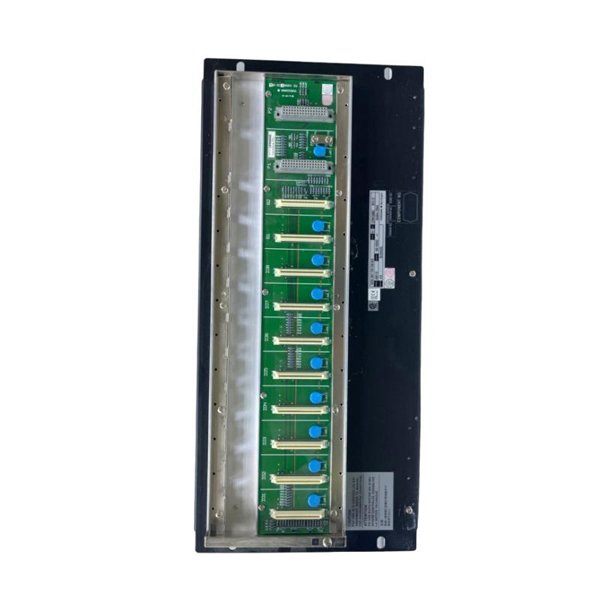

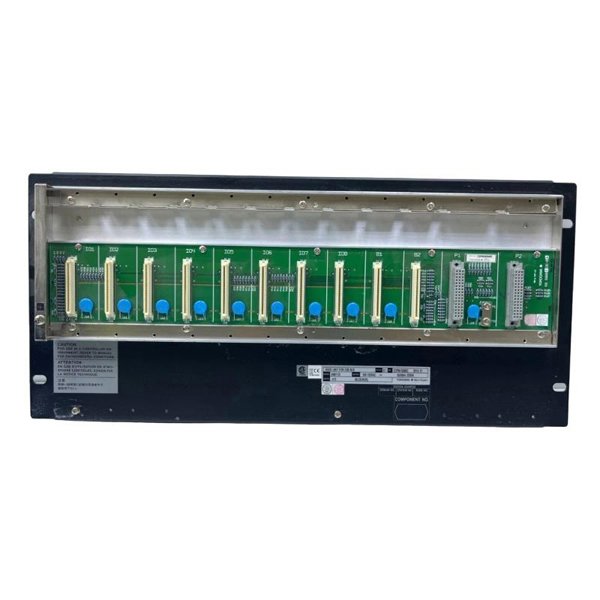

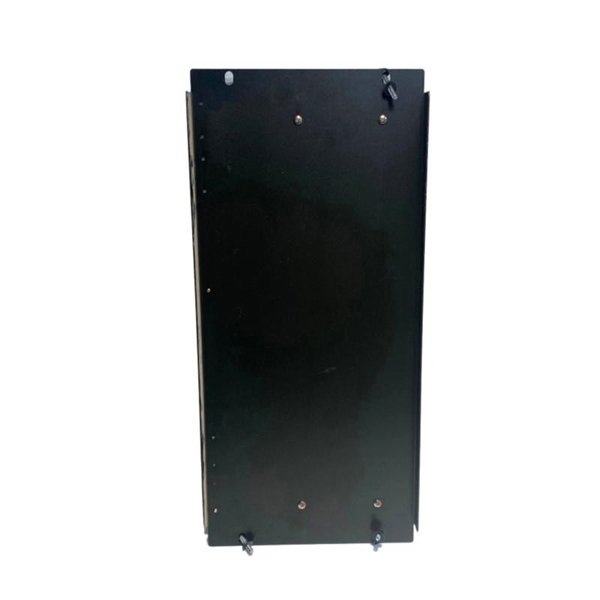

Yokogawa ANR10D-415 ER Bus Node Unit

The Yokogawa ANR10D-415 ER Bus Node Unit is an advanced communication interface designed for Yokogawa’s distributed control systems (DCS). It plays a critical role in establishing seamless connectivity between ER Bus networks and connected field devices. Built for high reliability and performance, this model provides robust, real-time communication for complex industrial automation systems.

Engineered for process industries such as oil & gas, power generation, and petrochemical plants, the ANR10D-415 supports redundant communication channels, ensuring continuous operation even during network failures. Its solid-state design, high-speed data handling, and integrated diagnostics make it an ideal choice for mission-critical environments requiring maximum uptime and operational integrity.

Product Specifications

Product Applications

The ANR10D-415 is widely used in demanding industrial environments where high-speed and reliable communication between controllers and field devices is essential. Key application areas include:

• Oil & Gas Industry: Provides reliable communication for pipeline monitoring and process automation.

• Power Plants: Ensures smooth data exchange in turbine and generator control systems.

• Chemical & Petrochemical Plants: Handles distributed process control under harsh conditions.

• Pharmaceutical Production: Maintains data integrity for batch processes and quality control.

• Factory Automation: Enables fast and secure communication in complex automated manufacturing setups.

Product Advantages

• Enhanced Redundancy: Dual communication paths minimize downtime and increase network reliability.

• High-Speed Communication: Supports rapid data transfer for real-time process control.

• Robust Design: Withstands challenging industrial conditions such as temperature extremes and vibration.

• Integrated Diagnostics: Provides real-time system status for predictive maintenance and troubleshooting.

• Flexible Mounting: Supports both DIN rail and panel mounting for installation convenience.

• Energy Efficiency: Low power consumption helps reduce operational costs.

Frequently Asked Questions (FAQ)

1. What is the primary protocol supported by ANR10D-415?

   It operates on the ER Bus protocol for high-speed industrial communication.

2. Does the unit support redundant communication channels?

   Yes, it offers dual redundant channels for increased reliability.

3. What kind of diagnostic features does the ANR10D-415 include?

   It has built-in self-check functions and LED indicators for network and power status.

4. Is firmware upgrade possible?

   Yes, firmware updates can be performed through the ER Bus network interface.

5. What is the acceptable input power range for the unit?

   It requires 24 V DC nominal with tolerances as per Yokogawa specifications.

6. How does the ANR10D-415 maintain data integrity?

   Through error detection mechanisms and redundant communication paths.

7. Does this unit support hot swapping?

   No, it must be powered down before removal or replacement.

8. What type of mounting options are available?

   It supports DIN rail and panel mounting for flexible installation.

9. Can the ANR10D-415 integrate with other Yokogawa systems?

   Yes, it is fully compatible with Yokogawa DCS and safety systems.

10. Does the ANR10D-415 comply with international safety standards?

    Yes, it is certified under CE, UL, and CSA standards.
