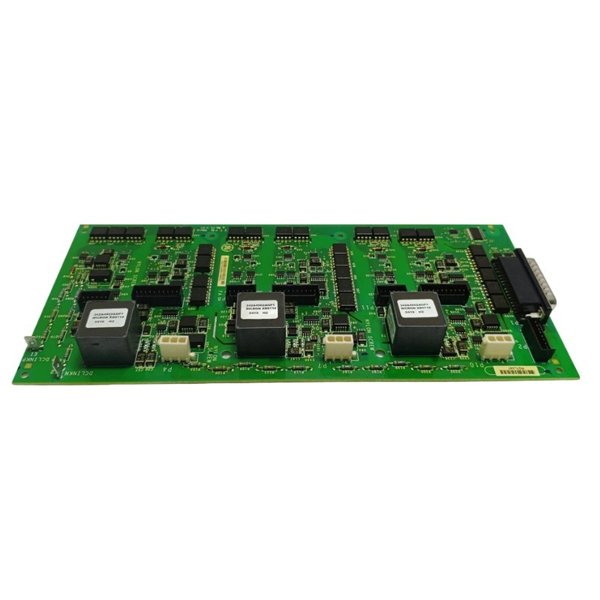

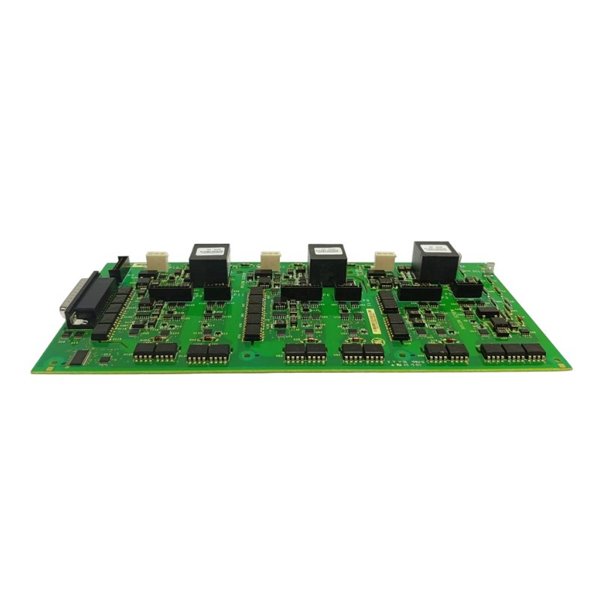

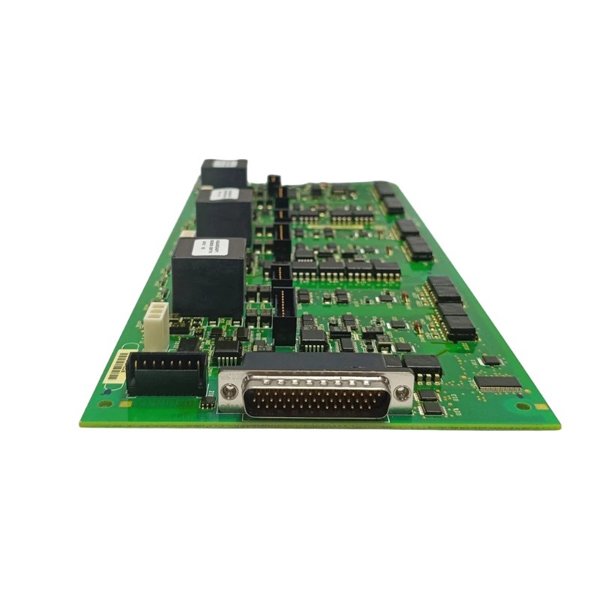

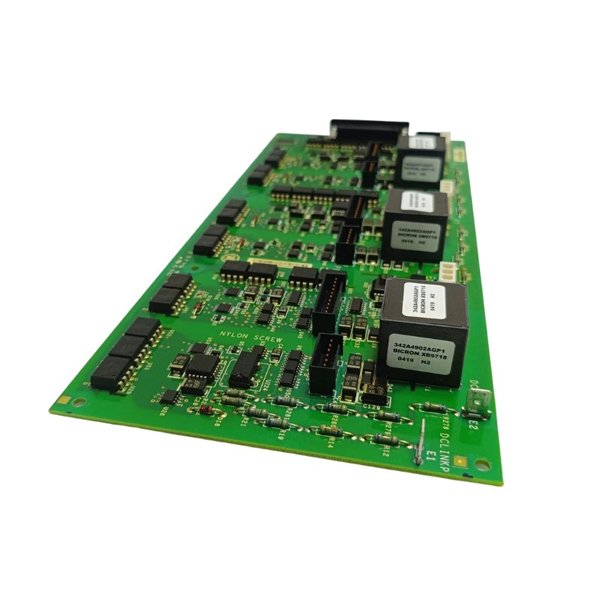

General Electric IS210AEBIH2BE AE Bridge Interface

The GE IS210AEBIH2BE AE Bridge Interface is an advanced acoustic emission (AE) monitoring device designed for integration with GE’s condition monitoring and protection systems. It serves as a critical interface to facilitate communication between AE sensors and control systems, ensuring precise signal processing and reliable detection of mechanical faults, leaks, or structural anomalies.

This product is widely adopted in industrial applications where early detection of equipment anomalies is crucial for preventing catastrophic failures and minimizing downtime. It is engineered for robustness, reliability, and seamless integration with GE monitoring ecosystems.

Product Specifications

Product Advantages

• High Signal Accuracy: Ensures precise acoustic emission detection for early fault identification.

• Seamless Integration: Fully compatible with GE’s AE sensors and monitoring systems.

• Robust Design: Industrial-grade construction suitable for harsh environments.

• Flexible Installation: Supports both DIN rail and panel mounting configurations.

• Reliable Communication: Maintains consistent signal transmission and low latency.

• Cost-Effective Monitoring: Reduces the need for frequent maintenance checks by enabling proactive diagnostics.

Product Applications

• Monitoring of turbines, generators, and rotating machinery.

• Detection of leaks in pressurized systems or pipelines.

• Structural health monitoring in industrial plants.

• Early fault detection in critical mechanical equipment.

• Integration with condition-based maintenance systems.

FAQ

1. Q: What type of AE sensors can be connected to the IS210AEBIH2BE?

   A: It supports all standard GE AE sensors compatible with the 8 mm or 4 mm probe interface.

2. Q: Can the bridge interface handle multiple sensors simultaneously?

   A: Yes, it can support up to 4 AE sensor channels per module.

3. Q: What is the signal output format?

   A: The output is a conditioned voltage signal compatible with GE monitoring devices.

4. Q: How does the interface communicate with the main control system?

   A: Communication occurs via the proprietary GE AE protocol over a standard 24 VDC line.

5. Q: Is the device suitable for outdoor installation?

   A: Yes, it has IP65 protection, allowing for outdoor and harsh industrial environments.

6. Q: Can the module operate in high electromagnetic interference environments?

   A: Yes, the unit includes EMI filtering and shielding to maintain signal integrity.

7. Q: Does the interface require calibration?

   A: Calibration is recommended during installation to match the connected AE sensors’ sensitivity.

8. Q: How fast is the signal response?

   A: The response time is less than 1 ms, suitable for real-time monitoring.

9. Q: Can it be integrated with third-party monitoring systems?

   A: It is designed primarily for GE systems; integration with third-party devices may require protocol conversion.

10. Q: What are the power consumption specifications?

    A: Typical power consumption is around 5 W at 24 VDC.
