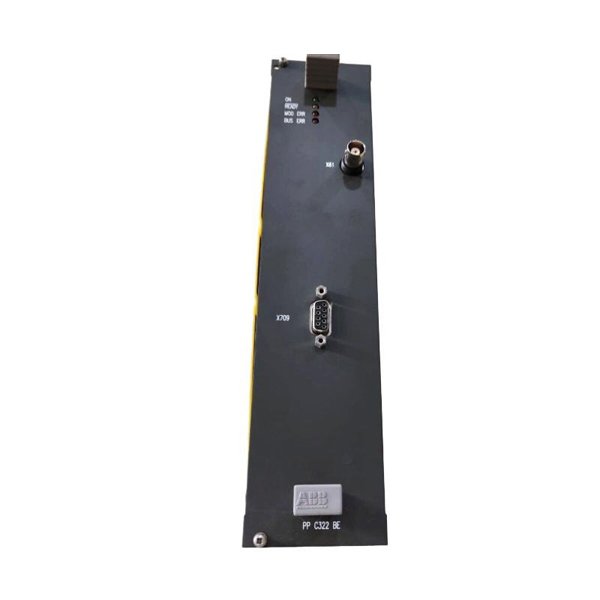

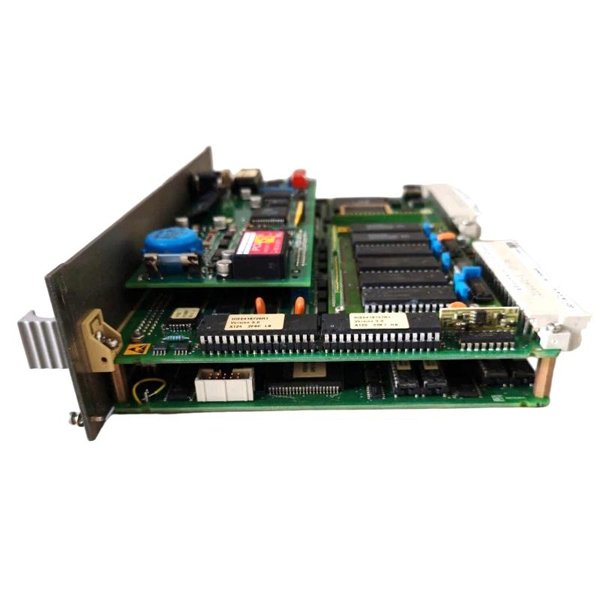

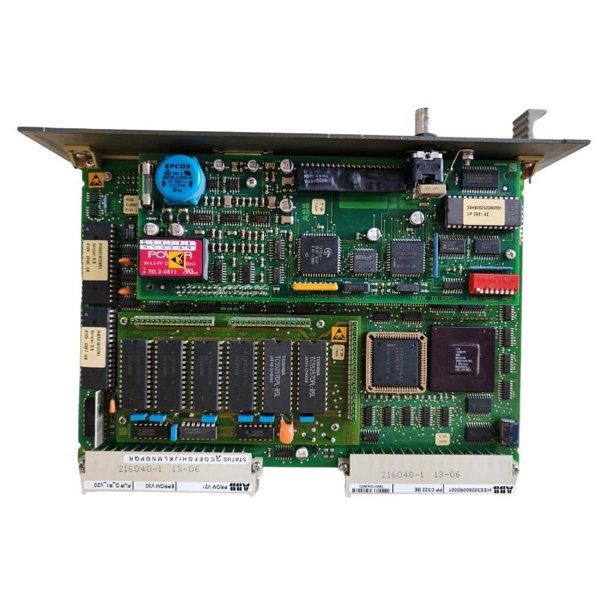

ABB PP C322 BE01 HIEE300900R1 Processor Module

The ABB PP C322 BE01 HIEE300900R1 Processor Module is a high-performance processing unit designed to be a central component in ABB’s industrial automation and control systems. This module is used to manage and execute complex control processes, supporting the seamless integration of various I/O devices, communication networks, and systems. Built with robustness in mind, the PP C322 BE01 offers reliable, real-time processing capabilities, ensuring uninterrupted operations in demanding industrial environments.

Optimized for use in applications where speed, precision, and reliability are essential, the PP C322 BE01 enhances system performance by providing a high-speed processing platform that can handle large data volumes and complex algorithms.

Product Parameters

Product Applications

The ABB PP C322 BE01 HIEE300900R1 Processor Module is designed for use in a wide range of industrial automation applications. Some key areas where this processor module is applied include:

• Manufacturing Systems: The module is ideal for controlling automated machines, assembly lines, and robotic systems, ensuring high-speed, precise control of operations.

• Building Automation: It integrates well with building management systems for HVAC control, lighting systems, security monitoring, and more.

• Energy Management Systems: The processor module plays a vital role in power plant automation, smart grid management, and energy distribution systems, handling vast data flow and ensuring system stability.

• Oil & Gas Industry: It’s used for control and monitoring in oil refineries, offshore platforms, and pipeline networks, ensuring high performance even in challenging environments.

• Water Treatment Plants: The PP C322 BE01 helps in the automation of water treatment processes, managing pumps, filters, sensors, and valves.

• Transportation Systems: In transit management systems, it monitors and controls signals, traffic lights, and public transport systems.

Product Advantages

• High Processing Power: With a dual-core ARM Cortex-A9 processor and a clock speed of 1.6 GHz, it can execute complex tasks and handle high data volumes with ease, ensuring fast response times.

• Large Memory and Storage: The 4 GB DDR3 RAM and 16 GB SSD offer ample space for running real-time applications, data logging, and historical trend analysis.

• Advanced Communication Support: The module supports multiple communication protocols, including Ethernet, Modbus TCP, and Profibus, providing flexibility to integrate with various devices and systems.

• Scalability and Flexibility: It can manage up to 1000 devices on the network, making it highly scalable for large and growing systems.

• Redundancy and Hot Swap Capabilities: The processor module supports dual processor redundancy and hot swapping, ensuring continued operation during maintenance or failures, which is critical for mission-critical applications.

• Comprehensive Diagnostics: The built-in self-diagnosis feature, along with error logs, allows for quick troubleshooting and minimal downtime.

• Compact and Reliable Design: The module’s compact dimensions and durable design make it suitable for environments where space is limited and reliability is paramount.

FAQ

1. What is the processor type of the ABB PP C322 BE01?

   The module uses a dual-core ARM Cortex-A9 processor, providing robust performance for industrial applications.

2. What is the maximum network size supported by the PP C322 BE01?

   The processor module supports up to 1000 devices on the network.

3. Can the ABB PP C322 BE01 handle real-time data processing?

   Yes, with its 1.6 GHz clock speed and 4 GB DDR3 RAM, it is well-suited for real-time data processing in demanding industrial environments.

4. What communication protocols are supported by the PP C322 BE01?

   It supports Ethernet, Modbus TCP, and Profibus communication protocols, ensuring compatibility with various devices and control systems.

5. Is the ABB PP C322 BE01 suitable for harsh industrial environments?

   Yes, the module is designed to operate in temperatures ranging from -10°C to +60°C, making it ideal for industrial environments with varying conditions.

6. Can the PP C322 BE01 be used in a redundant configuration?

   Yes, the processor module supports redundancy with a dual processor setup, ensuring continuous operation during maintenance or failure.

7. What I/O interfaces are available on the ABB PP C322 BE01?

   The module offers 16 digital I/O and 4 analog I/O interfaces for flexible integration with various devices.

8. Does the PP C322 BE01 support hot swapping?

   Yes, it supports hot swapping, allowing for the replacement of the processor module without disrupting system operation.

9. What kind of storage does the ABB PP C322 BE01 include?

   The processor module is equipped with a 16 GB SSD, providing ample space for applications, data logging, and storage needs.

10. What kind of diagnostic features are built into the ABB PP C322 BE01?

    The module features self-diagnosis capabilities with error logs, enabling quick identification of system issues and minimizing downtime.
