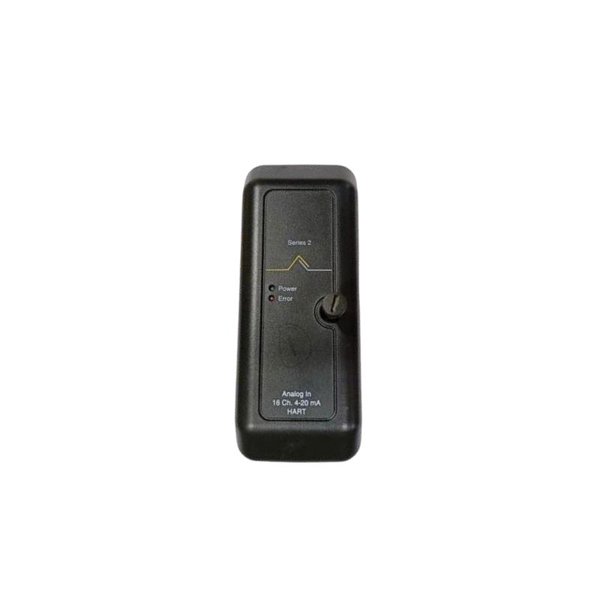

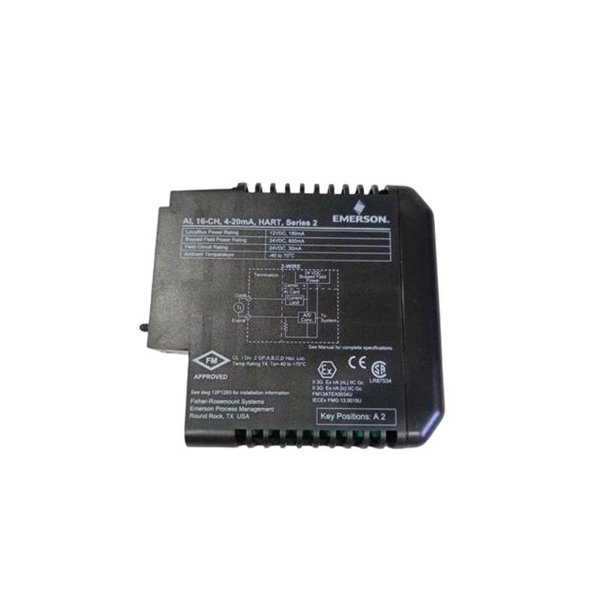

Emerson KJ3222X1-BA1 12P2532X072 Analog Input Module

The Emerson KJ3222X1-BA1 (12P2532X072) Analog Input Module is a high-precision device designed for industrial automation systems. It serves as a crucial component in converting analog signals from field instruments and sensors into digital data for processing by Distributed Control Systems (DCS). This module is particularly suitable for applications requiring reliable and accurate measurement of process variables such as temperature, pressure, and flow.​

Product Specifications

Product Applications

The KJ3222X1-BA1 module is widely used in various industrial sectors, including:​

• Chemical Industry: Monitoring and controlling chemical reactions and processes.​

• Oil and Gas: Measuring pressure and flow in extraction and refining operations.​

• Power Generation: Overseeing temperature and pressure in power plants.​

• Metallurgy: Controlling temperature and pressure in metal production processes.​

• Manufacturing: Ensuring precision in processes such as textile, printing, and packaging.​

Product Advantages

• High Accuracy: Ensures precise measurement of analog signals, leading to reliable process control.​

• HART Compatibility: Supports HART communication protocol, enabling enhanced interaction with smart field devices.​

• Robust Design: Built to withstand harsh industrial environments, ensuring durability and longevity.​

• Seamless Integration: Easily integrates with the DeltaV system, providing a unified control platform.​

• Scalability: Allows for expansion of input channels as system requirements grow.​

FAQ

1. What is the primary function of the KJ3222X1-BA1 Analog Input Module?

   • It converts analog signals from field instruments into digital data for processing by the DeltaV control system.​

2. How many input channels does this module support?

   • It supports 8 analog input channels.​

3. What type of input signals does the module accept?

   • It accepts 4-20 mA analog signals, commonly used in industrial process control.​

4. Is the module compatible with HART protocol devices?

   • Yes, it supports HART communication, allowing for enhanced device interaction.​

5. What are the operating voltage and power consumption requirements?

   • It operates at 24 VDC with a maximum power consumption of 2 W.​

6. What is the operating temperature range of the module?

   • It operates within a temperature range of -40°C to +85°C.​

7. What is the protection rating of the module?

   • It has an IP67 rating, indicating it is dust-tight and protected against immersion in water.​

8. What are the dimensions and weight of the module?

   • The module measures 80 x 120 x 25 mm, with a weight of 0.18 kg.​

9. How does the module integrate with the DeltaV system?

   • It seamlessly integrates, allowing for unified control and monitoring within the DeltaV architecture.​

10. In which industries can the KJ3222X1-BA1 module be applied?

    • It is suitable for industries such as chemical, oil and gas, power generation, metallurgy, and manufacturing.
