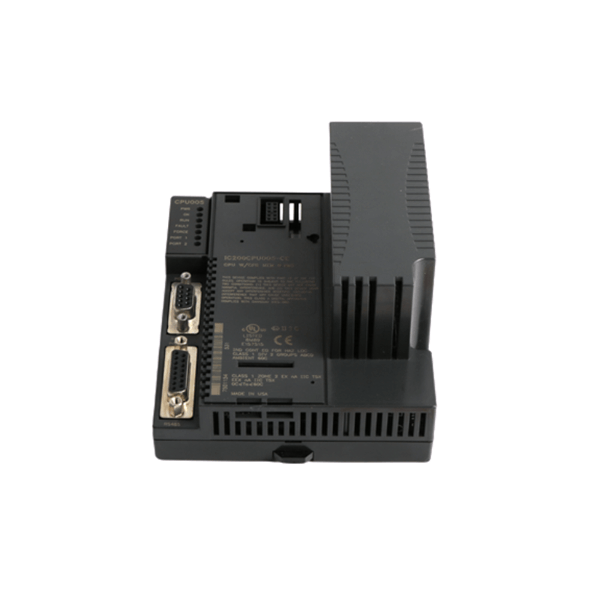

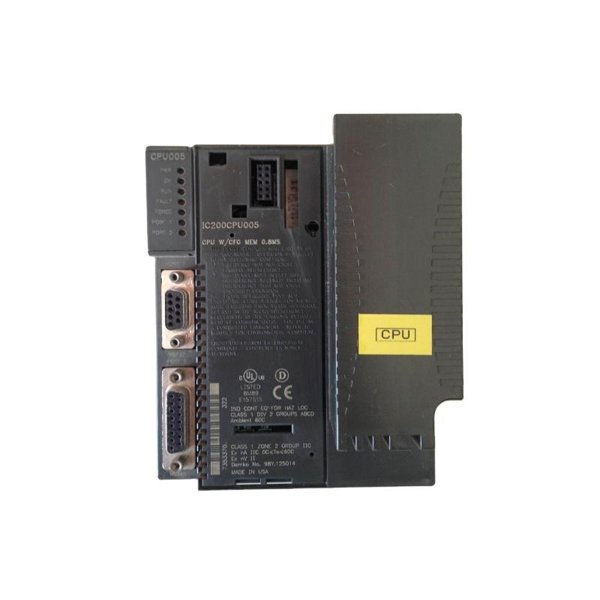

General Electric IC200CPU005-EF CPU Module

The GE IC200CPU005-EF is a central processing unit (CPU) module for use in the VersaMax I/O system. This module provides the processing power required to operate and control various industrial automation processes, integrating seamlessly with I/O modules, communication devices, and other automation components. The IC200CPU005-EF is part of the VersaMax family, known for its reliability, flexibility, and easy configuration in industrial control applications.

This CPU module supports advanced processing capabilities and offers support for distributed control systems (DCS), providing a powerful solution for complex automation tasks. The module is optimized for high-performance control systems requiring reliable and secure operations, such as manufacturing, packaging, process control, and material handling systems.

Specifications

Applications

The GE IC200CPU005-EF CPU module is designed for industrial automation control and can be used in a wide range of applications such as:

• Manufacturing automation

• Process control systems

• Material handling

• Packaging machines

• Energy management

• Building management systems (BMS)

• Pump and motor control

• HVAC control systems

It is ideal for any application that requires reliable, scalable, and efficient control over industrial systems, offering superior control over complex processes and operations.

Advantages

1. High Performance: The 32-bit processor ensures fast processing and handling of complex operations with high precision.

2. Scalable System: It can be expanded easily to suit different levels of automation complexity.

3. Versatile I/O: Supports a broad range of I/O modules, making it adaptable to various system configurations.

4. Ease of Integration: The module integrates seamlessly with other VersaMax I/O modules and communication interfaces.

5. Wide Operating Temperature Range: Suitable for deployment in various industrial environments, even under harsh conditions.

6. Low Power Consumption: The module operates with a low power requirement, reducing operational costs.

7. Reliability: Built for industrial environments, offering long-term reliability and minimal downtime.

8. Compact Design: Small footprint and DIN rail mounting make it easy to install and save space in control panels.

Frequently Asked Questions (FAQ)

1. What is the function of the IC200CPU005-EF module?

   • The IC200CPU005-EF is a central processing unit for the VersaMax I/O system, enabling the control of industrial automation processes, supporting up to 128 I/O modules.

2. How many I/O modules can be connected to the IC200CPU005-EF?

   • The module supports connection to up to 128 I/O modules, allowing for a highly scalable system configuration.

3. What are the power requirements for this CPU module?

   • The IC200CPU005-EF module operates on a 5V DC power supply, with an approximate power consumption of 4W.

4. Is the IC200CPU005-EF module compatible with Modbus communication?

   • Yes, this CPU module supports Modbus communication protocols over RS-232 and RS-485 interfaces, enabling seamless integration with Modbus-compatible devices.

5. Can the module be used in extreme temperatures?

   • Yes, it operates within a temperature range of -20°C to +60°C, making it suitable for diverse industrial environments.

6. What kind of expansion options are available with the IC200CPU005-EF?

   • The module can be expanded with various I/O and communication modules to meet the needs of different automation systems.

7. How is the IC200CPU005-EF installed?

   • The module is designed for easy installation with DIN rail mounting, simplifying the setup process in control panels.

8. What is the size and weight of the IC200CPU005-EF module?

   • The module measures 89 x 114 x 38 mm and weighs 0.181 kg.

9. What industries can benefit from using this CPU module?

   • The module is ideal for industries such as manufacturing, process control, material handling, packaging, and energy management.

10. How do I configure and program the IC200CPU005-EF module?

• The module is easily configured through programming software such as GE Proficy Machine Edition, which provides a user-friendly interface for configuring and programming the CPU module.
