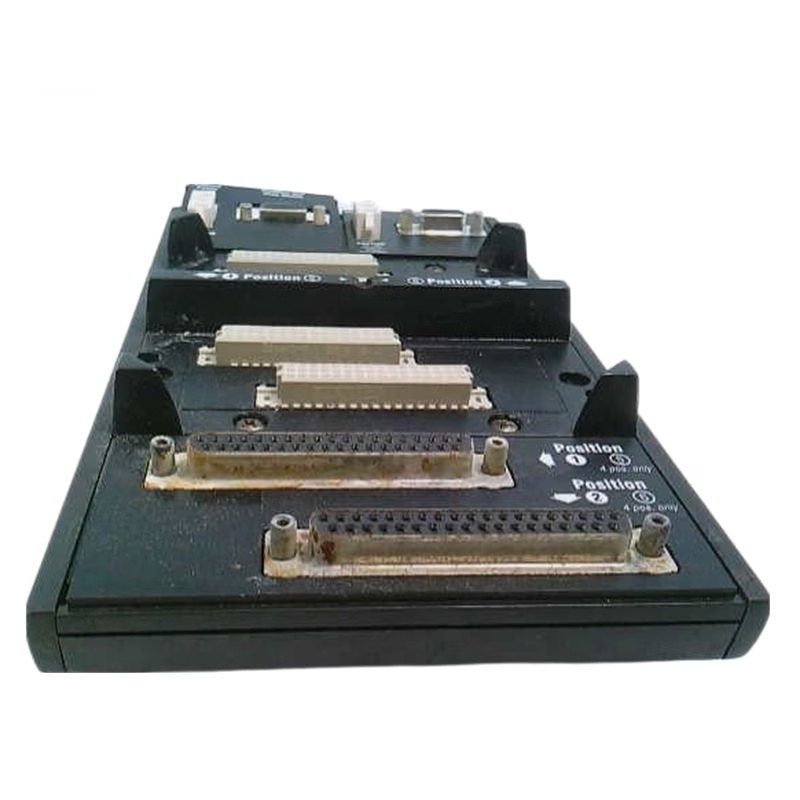

The Foxboro P0926KH is a vertical DIN-rail mount modular baseplate, part of the Foxboro line from Schneider Electric. It is designed to support and organize various modules in process control systems. This baseplate ensures reliable communication within the Foxboro I/A Series distributed control system (DCS). The P0926KH simplifies installation and maintenance by offering flexible mounting options and easy module integration.

Technical Specifications

• Manufacturer: Foxboro
• Model Number: P0926KH
• Product Type: Fieldbus Time Strobe DIN Rail Mount Baseplate
• Module Positions: Configurations for 2, 4, or 8 module positions
• Fieldbus Compatibility:
  • 2 Mbps Fieldbus for standard modules
  • 268 Kbps Fieldbus for 100 Series FBMs
• Input Voltage Range: Primary and secondary 24 V DC power connections
• Communication Connections: Reliable communication via dedicated backplane
• Mounting Configurations: Compatible with both vertical and horizontal DIN rail mounting
• Weight: 0.85 lbs
