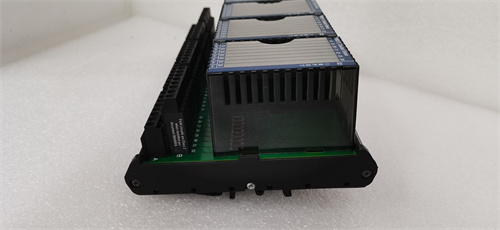

FOXBORO P0916CA Product Introduction

P0916CA is an industrial controller product produced by FOXBORO.The following is a detailed introduction to the product.

Product Features

Multi-domain functions:P0916CA supports at least two functions including logic,motion,drive and process control in a single platform.

Software function integration:Integrate multi-procedural software functions on a single development platform,such as hmi(Human Machine Interface)and soft logic,and use common labels and a single database to access all parameters and functions.

Cross-platform processing flow:The processing flow designed by the software tool can span multiple machines and process control processing units to implement processing procedures including motion control and process control.

Open modular architecture:It can cover the needs of industrial applications from factory machinery and equipment to process control operating units.

Network compatibility:Adopt recognized network interface standards and languages​​to allow devices from different suppliers to exchange data on the network.

Technical parameters

Although the specific technical parameters may vary due to product batches or upgrades,in general,the P0916CA product may have the following common technical parameters(the following parameters are for reference only,please refer to the actual product)

Indication accuracy:±0.5%

Recording accuracy:±1%

Control accuracy:±0.5%

Setting range:0~100%(two groups)

Travel time:≤5S

Indication insensitive zone:±0.25%

Scale length:550mm

Recording effective width:87.5mm

Recording paper feed speed:24 hours/week

Output contact capacity:AC 220V1A(AC non-inductive load);DC 28V2A(pure resistance load)

Working environment:temperature 0~50℃;relative humidity≤90%

Power supply voltage:220V±10%50Hz±5%

Power consumption:≤20VA

Instrument weight:8kg

Dimensions:280×288×200mm

Opening size:260×260mm

Application and maintenance

Application:P0916CA is widely used in industrial automation and control systems due to its versatility and compatibility.It can meet a variety of needs from simple logic control to complex motion control and process control.

Maintenance:To ensure the normal operation and extend the service life of P0916CA,maintenance and inspection should be carried out regularly.This includes checking electrical connections,cleaning equipment,calibrating sensors and actuators,etc.
