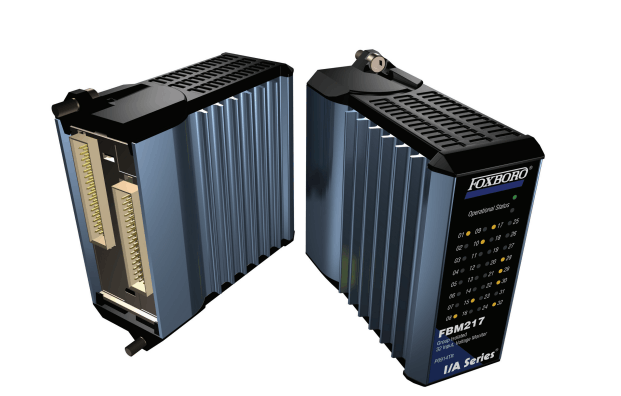

The FOXBORO FBM217 P0916CA Discrete Input Interface Module provides 32 dc voltage input channels.
Key features of the FBM217 include:

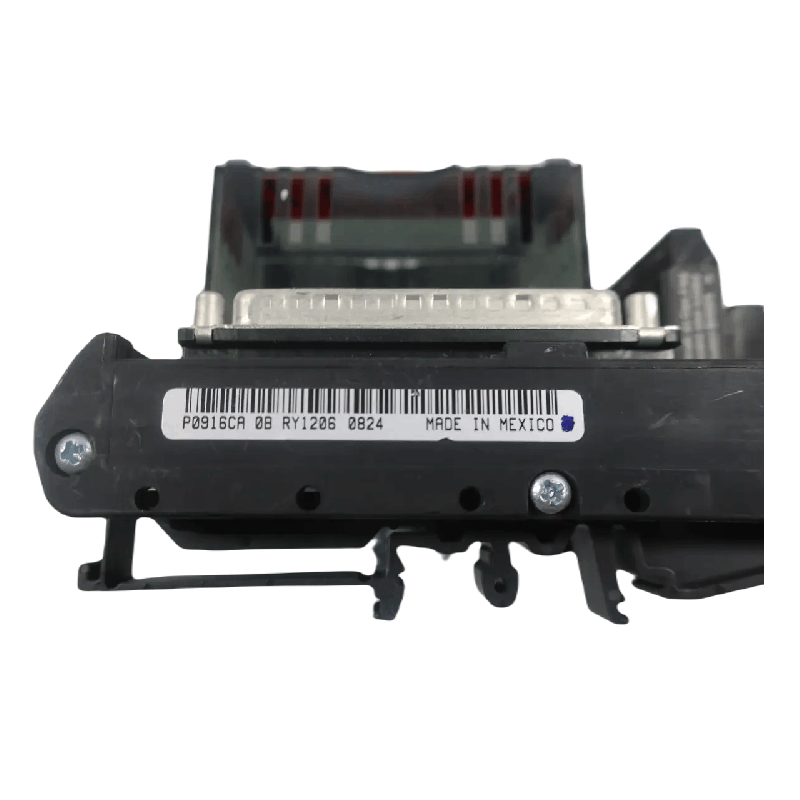

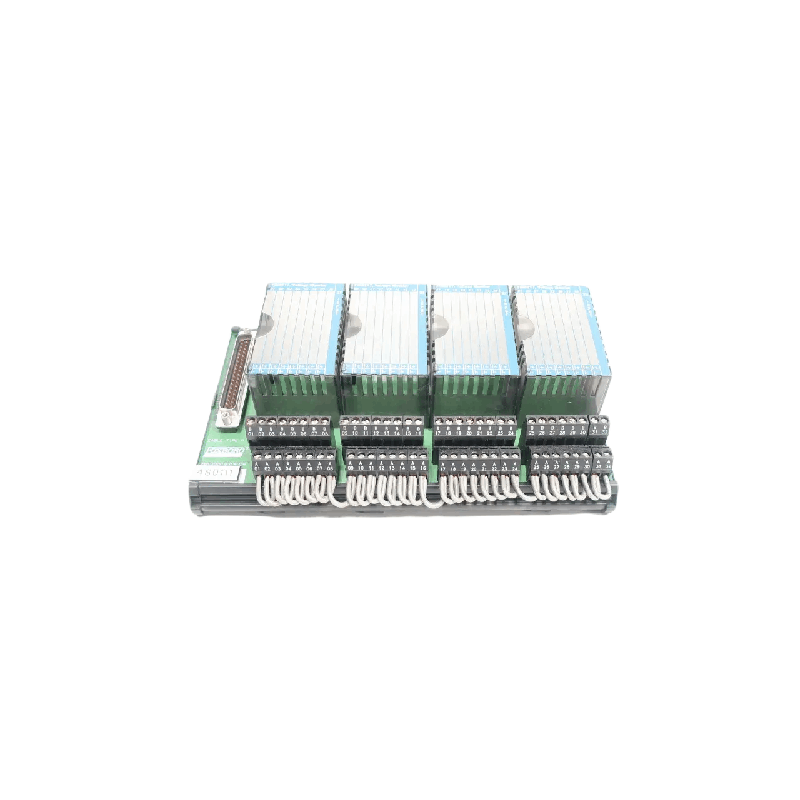

The FOXBORO FBM217 P0916CA Discrete Input Interface Module provides 32 input channels, each accepting a 2-wire input from a dc voltage source. Associated termination assemblies (TAs) provide for discrete inputs of under 60 V ac, 120 V ac/125 V dc or 240 V ac. The module performs signal conversion required to interface the electrical input signals from the field sensors to the Module Fieldbus.
Depending on the type of I/O signal required, the TAs contain current limiting devices, high voltage attenuation circuits, optical isolation and external power source connections.
The module with its associated TA supports the following discrete inputs:
The module can be used as a single unit, or as a redundant pair (two FBM217s). When used as a redundant pair, the modules combine to provide redundancy at the Fieldbus Module (FBM) level, with field input signals received from one common termination assembly though a redundant adapter affixed to the FBMs’ baseplate. The field input current for redundant modules is doubled. A redundant digital input block in the control software validates each input in conjunction with information to/from the module, and selects the input with the highest quality for processing in the control strategy.
For more Product Specifications, please read the PDF document online: FBM217
The FOXBORO FBM217 P0916CA Discrete Input Interface Module provides 32 dc voltage input channels.
Key features of the FBM217 include:
The FOXBORO FBM217 P0916CA Discrete Input Interface Module provides 32 input channels, each accepting a 2-wire input from a dc voltage source. Associated termination assemblies (TAs) provide for discrete inputs of under 60 V ac, 120 V ac/125 V dc or 240 V ac. The module performs signal conversion required to interface the electrical input signals from the field sensors to the Module Fieldbus.
Depending on the type of I/O signal required, the TAs contain current limiting devices, high voltage attenuation circuits, optical isolation and external power source connections.
The module with its associated TA supports the following discrete inputs:
The module can be used as a single unit, or as a redundant pair (two FBM217s). When used as a redundant pair, the modules combine to provide redundancy at the Fieldbus Module (FBM) level, with field input signals received from one common termination assembly though a redundant adapter affixed to the FBMs’ baseplate. The field input current for redundant modules is doubled. A redundant digital input block in the control software validates each input in conjunction with information to/from the module, and selects the input with the highest quality for processing in the control strategy.
For more Product Specifications, please read the PDF document online: FBM217
