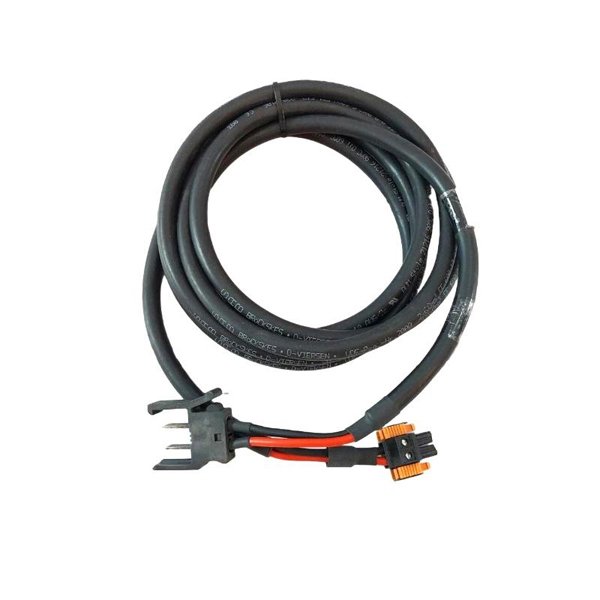

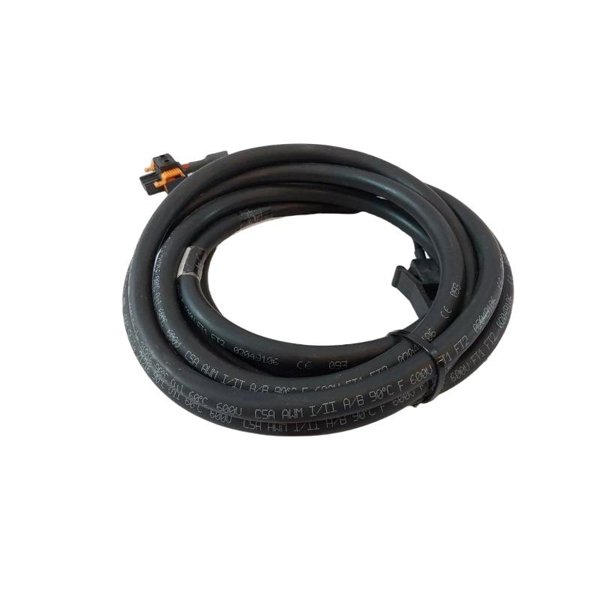

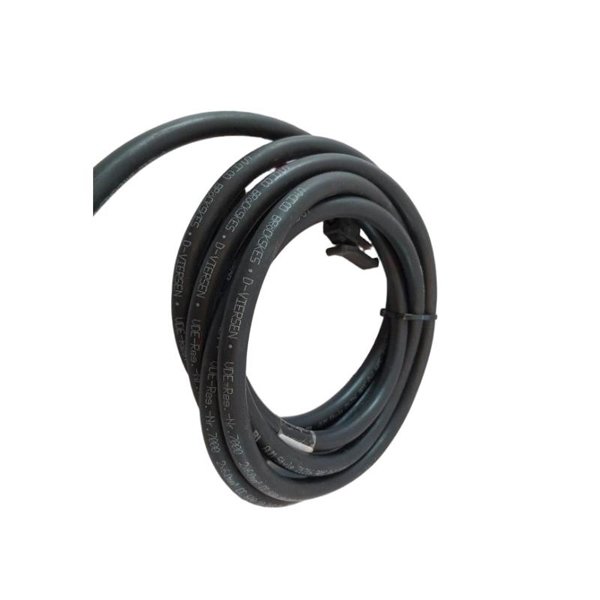

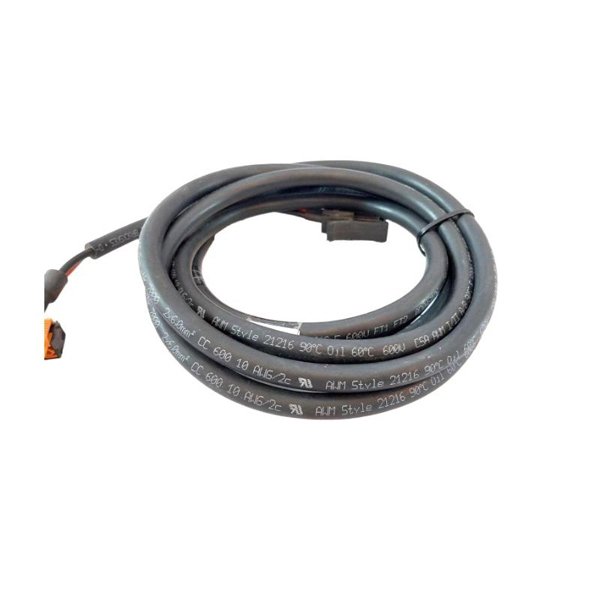

Honeywell FS-PDC-MB24-3P Power Distribution Cable
Manufacturer:Honeywell
Product Number:FS-PDC-MB24-3P
Product Type:Power Distribution Cable
Origin:USA
Cable Length:3.25m
Weight:0.7 kg
Views:59
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell FS-PDC-MB24-3P Power Distribution Cable delivers 24Vdc power from the main power rail (FS-MB-0001) to distribution boards like FC-PDB-0824P or field termination assemblies (FTAs). It features keyed Weidmuller connectors for secure and error-free connections, with a standard length of 3.25 meters to accommodate cabinet layouts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | FS-PDC-MB24-3P |
| Cable Type | CC600 2 × 6 mm² |
| Voltage Rating | 24Vdc |
| Cable Length | 3.25 m (128.0 in) |
| Weight | 0.7 kg |
| Connectors (Power Bar) | 2-pole Squeeze To Release (D-TAB-200-STR) |
| Connectors (Board/FTA) | Weidmuller BVZ 7.62HP/02F SN with 24Vdc keying |
| Approvals | UL, CSA, FM (pending) |
Applications
-
Powering Honeywell FC-PDB-0824P distribution boards
-
Connecting 24Vdc FTAs in control cabinets
-
Industrial control systems with 24Vdc infrastructure
-
Safety-critical environments requiring secure 24Vdc supply
Advantages
-
Keyed connectors reduce connection errors
-
Optimized length for flexible routing
-
Durable construction with large cross-section conductors
-
Compliance-ready with UL, CSA, FM certifications (pending)
-
Tailored for Honeywell Safety Manager systems
FAQ
Q1: What voltage is FS-PDC-MB24-3P rated for?
A1: It is rated for 24Vdc systems.
Q2: What is the length of FS-PDC-MB24-3P?
A2: The cable is 3.25 meters (128 inches) long.
Q3: What is the weight of the cable?
A3: Approximately 0.7 kg.
Q4: What type of connector is used on the power rail side?
A4: It uses a 2-pole D-TAB-200-STR Squeeze To Release connector.
Q5: What connector is used on the board/FTA side?
A5: A Weidmuller BVZ 7.62HP/02F SN keyed connector.
Q6: Is the cable approved for safety-critical environments?
A6: Yes, UL, CSA, and FM approvals are pending.
Q7: Can it be used for other voltages?
A7: No, it is specifically designed for 24Vdc systems.
Q8: Is it compatible with the FC-PDB-0824 (non-P) board?
A8: No, FS-PDC-MB24-3P is meant for FC-PDB-0824P; use FS-PDC-MB24-3 for FC-PDB-0824.
Q9: How many conductors are in the cable?
A9: Two conductors of 6 mm² each.
Q10: Are any tools required for installation?
A10: No special tools are required; it is designed for quick, secure connection.
