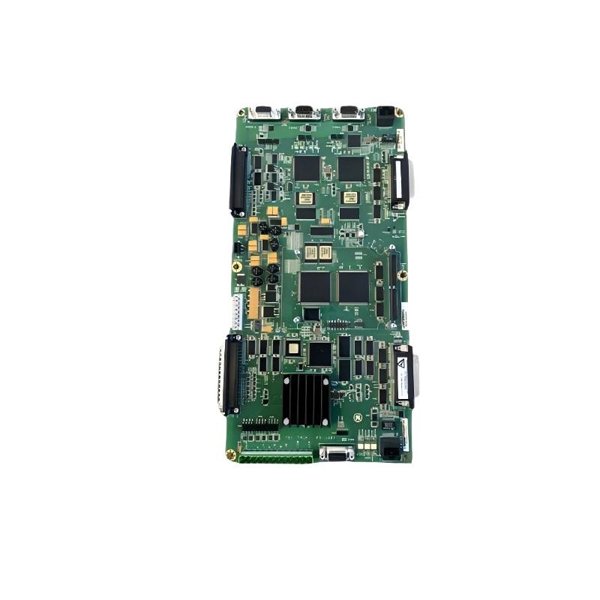

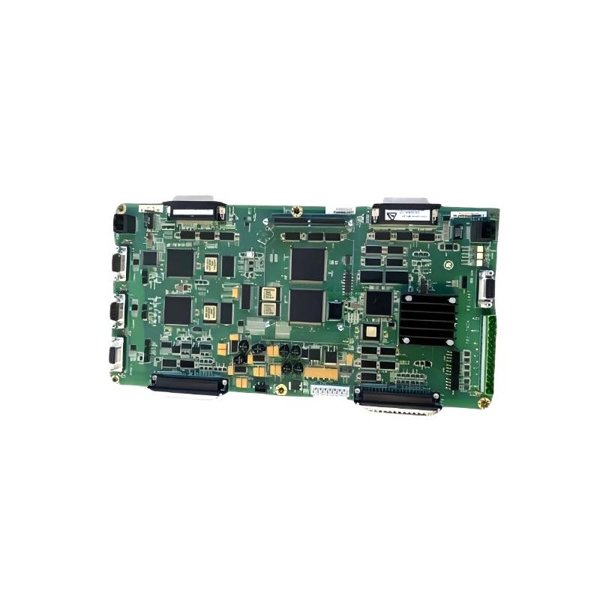

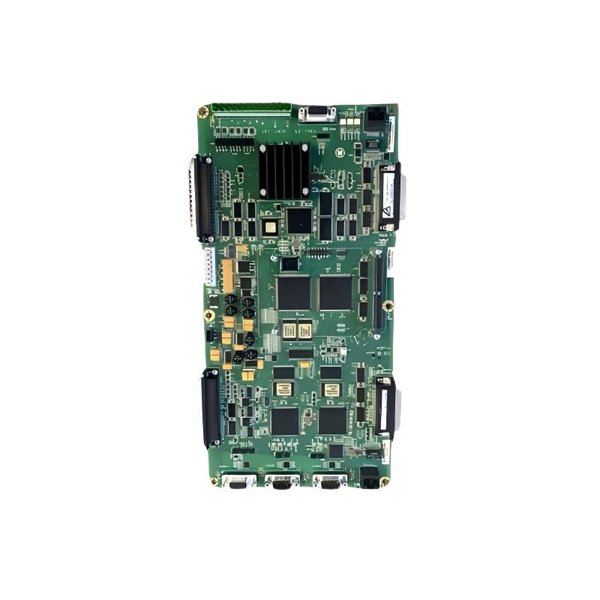

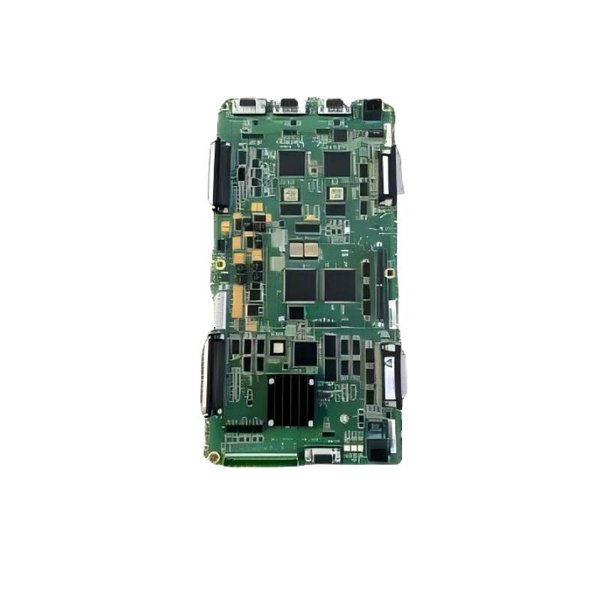

General Electric IS210MACCH2A PCB Module

The GE IS210MACCH2A is a versatile Printed Circuit Board (PCB) tailor-made for GE Mark VI turbine control systems. It serves as a central data and control hub between field devices and the main control unit, adeptly handling both analog and digital inputs, relay and transistor outputs, and facilitating communication via Ethernet and Serial protocols. Built for demanding industrial environments—such as power generation, oil & gas, and water treatment—it offers exceptional reliability and streamlined integration.

Technical Specifications

Applications

• Turbine Control – Serves as an I/O interface in GE Mark VI turbine control platforms for robust machine monitoring.

• Process Automation – Translates sensor data into actionable commands in oil & gas, water treatment, and power plants.

• Signal Integration – Aggregates analog and digital I/O for seamless control unit communication.

• Flexible Communications – Supports Ethernet and Serial for real-time data flow between modules and systems.

• Industrial Upgrades – Ideal for retrofits or replacing aging PCBs in mature turbine control assemblies.

• Harsh Environments – Built to operate reliably under industrial stresses like vibration and moderate temperature variations.

Advantages

• Multi-Protocol Support – Handles analog, digital, relay, transistor signals, and multiple communication formats.

• Versatile Power & Signal Ranges – Broad voltage handling makes it adaptable across complex systems.

• Robust Construction – Engineered for industrial reliability with solid environmental tolerance.

• Streamlined Integration – Ready for use in GE Mark VI platforms, reducing configuration time.

• Real-Time Data Handling – Enables quick control responses through fast Ethernet and Serial connections.

• Durable Build Quality – Designed for long-term use in hostile industrial conditions.

• Compact & Easy to Service – Fits compact housings and allows swift module maintenance or replacement.

• Cost-Effective Modernization – Great for upgrading older control panels without full system overhaul.

• Safety in Harsh Services – Proven performance in environments with temperature fluctuations and mild vibration.

• Future-Ready – Equipped to meet evolving factory communication and data handling standards.

FAQ

Q1: What types of signals does this board handle?

A1: It supports both analog and digital inputs, as well as relay and transistor outputs.

Q2: What communication options are available?

A2: It supports both Ethernet and Serial protocol communication.

Q3: Where is this module used?

A3: It acts as an I/O interface in GE Mark VI turbine control systems and similar platforms.

Q4: What voltage does it accept and output?

A4: It accepts 100–240 VAC, outputs via 0–400 VDC, and is powered through 24–60 VDC.

Q5: What is its operating temperature range?

A5: The board functions reliably between –20 °C and +70 °C.

Q6: Is it suitable for industrial environments?

A6: Yes—it’s designed for harsh industrial settings, including power and utility plants.

Q7: What are its physical dimensions and weight?

A7: Typically around 180 × 85 × 30 mm, with a weight of approximately 0.4 kg.

Q8: Can it be used in a retrofit?

A8: Absolutely—its form factor and compatibility make it ideal for updating existing systems.

Q9: What powering options are supported?

A9: It operates on 24–60 VDC auxiliary power.

Q10: Does it integrate easily in control racks?

A10: Yes—designed with rack compatibility and modular architecture in mind, allowing smooth integration.
