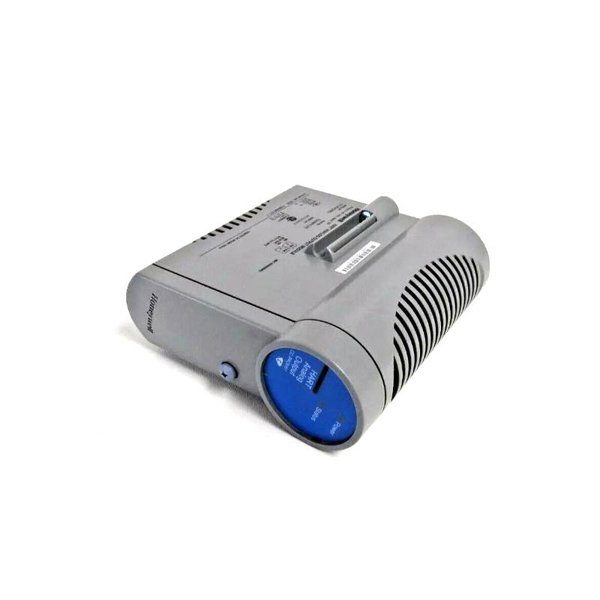

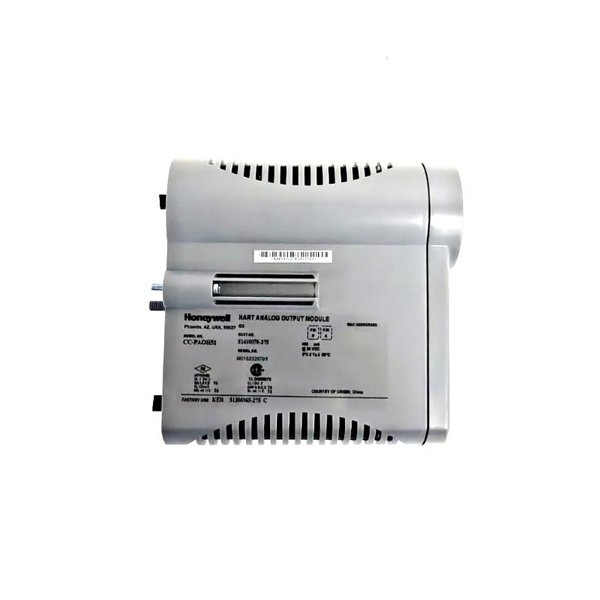

Honeywell CC-PAOH51 51410070-276 Analog Output Module

The Honeywell CC-PAOH51 51410070-276 is a high-performance HART Analog Output Module designed for seamless integration into industrial control systems. It facilitates precise conversion of digital signals to analog outputs, enabling accurate control of various field devices such as actuators, valves, and other instrumentation.

This module is an integral component of Honeywell’s Experion® Process Knowledge System (PKS) and the C300 controller family, ensuring reliable and efficient process automation across diverse industrial applications.

Product Specifications

Applications

The Honeywell CC-PAOH51 Analog Output Module is designed for a wide range of industrial applications requiring precise analog signal output and HART communication capabilities. Common applications include:

• Process Control Systems: Regulating actuators, valves, and other control elements in industries such as oil and gas, chemical processing, and power generation.

• Manufacturing Automation: Providing accurate control signals to machinery and production equipment.

• Environmental Monitoring: Controlling devices in systems that monitor environmental parameters.

• Utilities and Energy Management: Managing equipment in water treatment plants, electrical grids, and renewable energy installations.

• Pharmaceutical Production: Ensuring precise control in sensitive manufacturing processes.

• Food and Beverage Industry: Maintaining consistent quality through accurate process control.

Product Advantages

• High Precision and Accuracy: Offers ±0.1% full-scale accuracy and 16-bit resolution for precise control.

• HART Protocol Support: Enables enhanced communication with field devices, allowing for diagnostics and configuration over the same wiring.

• Multiple Output Ranges: Configurable for 4-20 mA, 0-20 mA, and 0-10 V signals to accommodate various devices.

• Robust Isolation: Provides 500V channel-to-channel and 1500V channel-to-system isolation, ensuring signal integrity and safety.

• Fast Response Time: Less than 20 ms response time for timely control actions.

• Wide Operating Temperature Range: Suitable for extreme environments, operating reliably from -40°C to +70°C.

• Compact and Modular Design: Facilitates easy integration into existing systems with minimal space requirements.

• Low Power Consumption: Efficient operation with a maximum power consumption of 4W, reducing overall energy costs.

• Reliable Performance: Designed for high availability and durability in industrial settings.

• Seamless Integration: Fully compatible with Honeywell’s Experion® PKS and C300 controller systems, ensuring smooth system integration.

FAQ

1. Q1: What is the main application of the CC-PAOH51 Analog Output Module?

   A: This module is primarily used to generate analog control signals—typically 4-20 mA or 0-10 V—for actuating final control elements such as valves and variable speed drives in industrial automation systems.

2. Q2: How many analog output channels does this module offer?

   A: The CC-PAOH51 provides 16 individually configurable analog output channels, each isolated for robust operation in demanding environments.

3. Q3: Does the CC-PAOH51 support HART communication?

   A: Yes, it supports the HART protocol, enabling digital communication with field devices over existing analog signal lines, useful for diagnostics and remote configuration.

4. Q4: What type of signal accuracy can I expect?

   A: It offers high accuracy with typical deviation within ±0.35% of full scale, along with 16-bit resolution to support precise output control.

5. Q5: Is this module compatible with the Honeywell C300 controller platform?

   A: Absolutely. It is fully compatible with Honeywell’s Experion PKS architecture and designed for seamless integration into the C300 controller family.

6. Q6: Can I use this module in high-temperature or harsh industrial environments?

   A: Yes, the CC-PAOH51 is built for industrial environments, with an operating temperature range of -40°C to +70°C and humidity tolerance up to 95% non-condensing.

7. Q7: What is the maximum load resistance supported on each output channel?

   A: Each output channel can handle up to 800 ohms resistive load at 24 VDC power supply, which is suitable for most standard industrial analog field devices.

8. Q8: Can the module be replaced while the system is running?

   A: Yes, it supports hot-swapping, allowing for maintenance or replacement without interrupting system operations—a key feature for continuous process industries.

9. Q9: How is the module mounted?

   A: The module can be installed via standard DIN rail or mounted directly into Honeywell’s Series C racks, offering flexibility depending on the system layout.

10. Q10: What safety and compliance certifications does this module carry?

    A: It complies with CE, TUV, UL508, and CSA certifications, ensuring safe use in international industrial settings.
