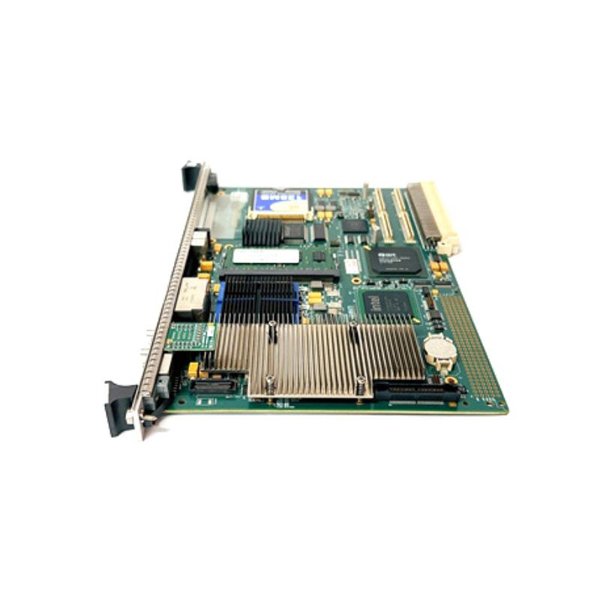

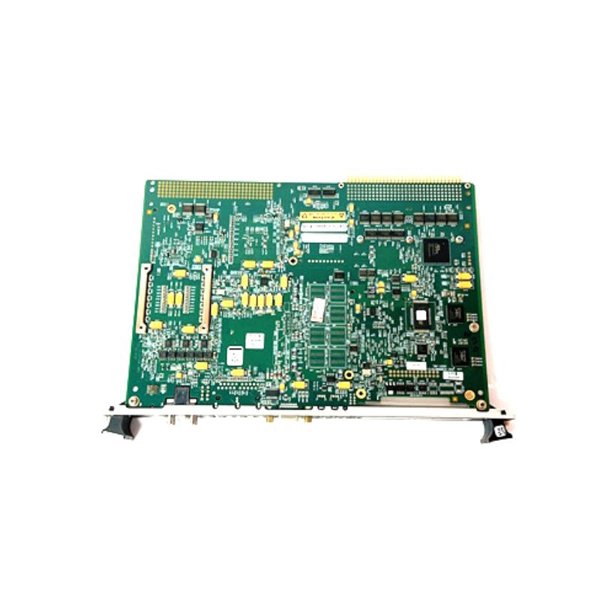

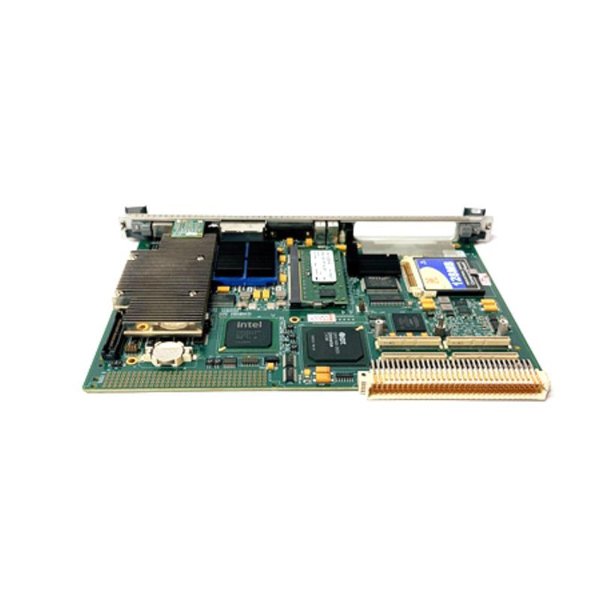

General Electric IS415UCVHH1AB VME Innovation Series Controller

The GE IS415UCVHH1AB is a high-performance controller board from the Mark VIe Innovation Series, designed for advanced turbine and plant control systems. It is a 6U VME single-board computer (SBC) that executes turbine application code with high speed and reliability. Operating on the robust QNX real-time OS, it ensures dependable control for gas, steam, LM, and BOP applications.

Product Features

• Designed for Mark VIe VME platforms

• Real-time multitasking with QNX OS

• Supports both simplex and TMR systems

• High-speed processing up to 100,000 logic rungs per second

• Synchronized clock within 100 microseconds with VCMI

• Multiple communication interfaces: Ethernet and RS-232C

Technical Specifications

Applications

• Gas turbine control systems

• Steam turbine control systems

• Land-marine derivative turbine control

• Balance of plant (BOP) operations

• Distributed Control Systems (DCS) integration

• Industrial automation requiring real-time response

Advantages

• High processing capacity for complex control logic

• Proven real-time reliability with QNX OS

• Flexible installation in different rack configurations

• Compatible with both local and remote I/O

• Supports robust simplex and TMR architectures

• Designed for mission-critical industrial environments

FAQ

Q1: What is the operating system of the IS415UCVHH1AB?

A1: It operates on QNX, a reliable real-time multitasking OS.

Q2: What communication ports does the controller provide?

A2: It provides Ethernet, RS-232C COM1, and RS-232C COM2 ports.

Q3: How fast can the controller process logic?

A3: It can execute up to 100,000 rungs or blocks per second.

Q4: Can it work in a TMR configuration?

A4: Yes, it supports both simplex and triple modular redundancy (TMR) systems.

Q5: Is the controller rack-dependent?

A5: It supports multiple rack types, including GE Fanuc and Mark VIe racks.

Q6: Does it require a cooling fan?

A6: Yes, a fan is installed above or below depending on the rack used.

Q7: How is clock synchronization achieved?

A7: Synchronization is maintained within 100 microseconds via the VCMI board.

Q8: What is the typical use case for this controller?

A8: It is commonly used in turbine control and plant automation systems.

Q9: What is the size and weight of the controller?

A9: The dimensions are 200 × 115 × 57 mm and the weight is 0.788 kg.

Q10: Is the controller suitable for distributed control systems?

A10: Yes, it integrates with DCS through its RS-232C COM2 port.
