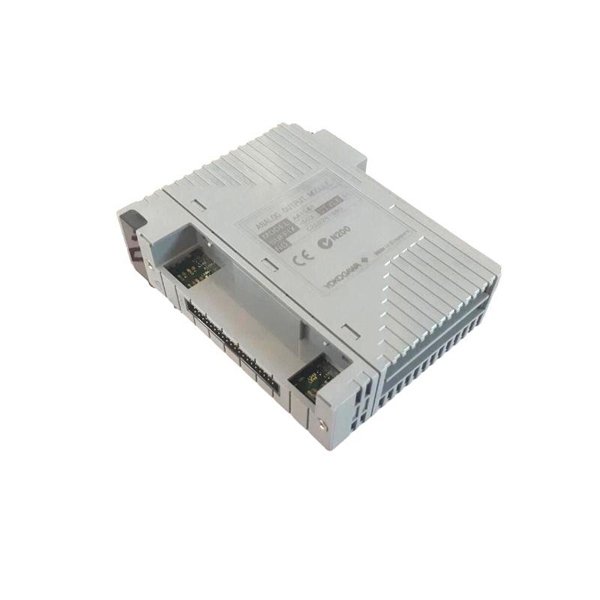

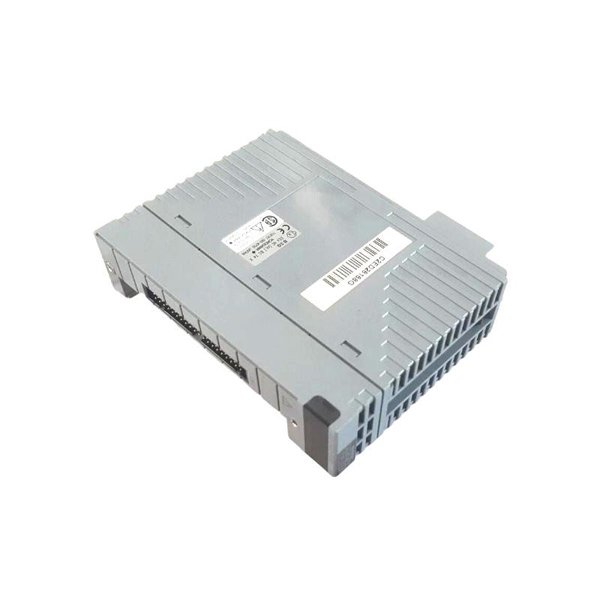

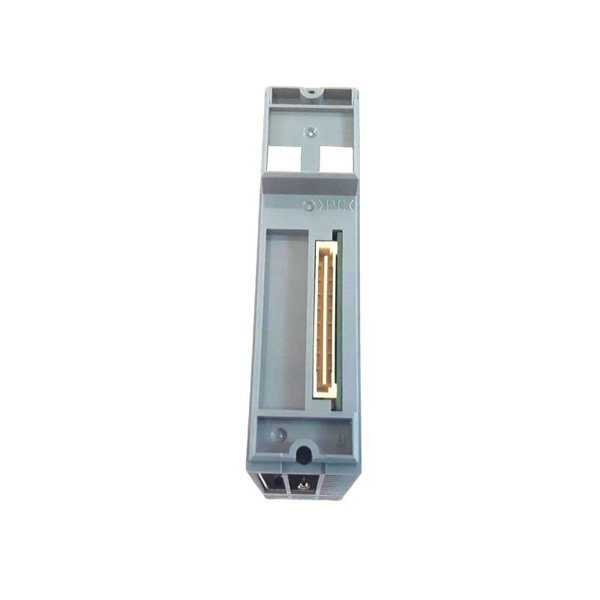

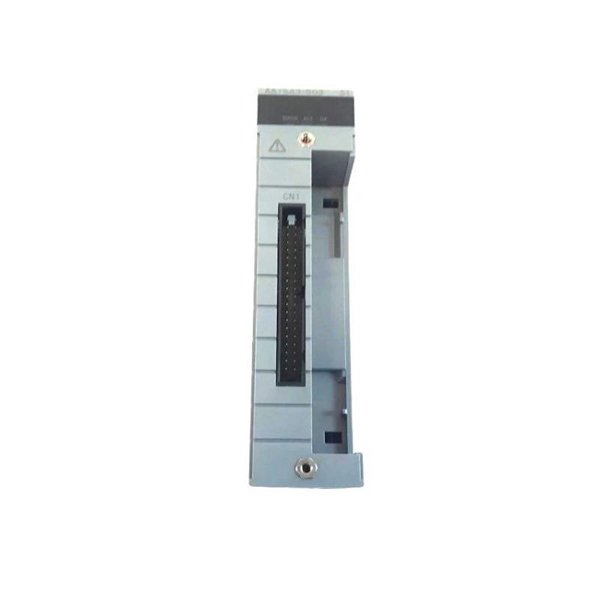

Yokogawa AAI543-S03 Analog Output Module

The Yokogawa AAI543-S03 is a 16-channel isolated analog output module designed for precise 4 to 20 mA current signal transmission in industrial automation and process control systems. It is compatible with various Yokogawa FIO-based systems and supports dual-redundant configurations for enhanced reliability. With built-in HART communication capability, the module enables both standard analog control and advanced device diagnostics, ensuring optimal integration with field devices such as valve positioners and actuators.

Technical Specifications

Applications

• Process Control Systems – Precise current signal output for controlling actuators, control valves, and industrial devices.

• Redundant Control Architectures – Dual-redundant setup ensures continuous operation in critical process environments.

• Field Device Communication – HART-enabled monitoring and configuration for smart field devices.

• Power Plant Automation – Reliable analog output for turbine and boiler control.

• Chemical and Petrochemical Plants – Accurate signal transmission in hazardous and demanding conditions.

Advantages

• High Reliability – Isolated design prevents interference and ensures stable performance.

• Fast and Standard Switch-over Options – Supports both standard and fast response in redundant configurations.

• HART Communication – Enables real-time device diagnostics and parameter adjustments.

• Compact Design – Saves panel space while providing 16 isolated output channels.

• Wide Compatibility – Works seamlessly with multiple Yokogawa field control stations.

• Enhanced Safety – Meets high voltage isolation requirements for critical industrial applications.

FAQ

Q1: How many output channels does the AAI543-S03 have?

A1: It has 16 isolated output channels.

Q2: What is the output signal range?

A2: The output signal range is 4 to 20 mA.

Q3: Can it be used in redundant configurations?

A3: Yes, it supports both standard and fast switch-over dual-redundant setups.

Q4: Does it support HART communication?

A4: Yes, it supports HART protocol for enhanced device communication.

Q5: What is the maximum load resistance allowed?

A5: The allowable load resistance is 0 to 750 Ω.

Q6: What is the accuracy of the output signal?

A6: The accuracy is ±48 µA.

Q7: What is the size and weight of the module?

A7: Dimensions are 107.5 × 32.8 × 130 mm and weight is 0.4 kg.

Q8: What is the withstanding voltage rating?

A8: 1500 V AC between output and system for 1 minute.

Q9: What kind of external connections are supported?

A9: Pressure clamp terminal, MIL connector cable, and KS1 cable.

Q10: In which industries is the AAI543-S03 commonly used?

A10: Power generation, chemical processing, petrochemical, and other process automation industries.
