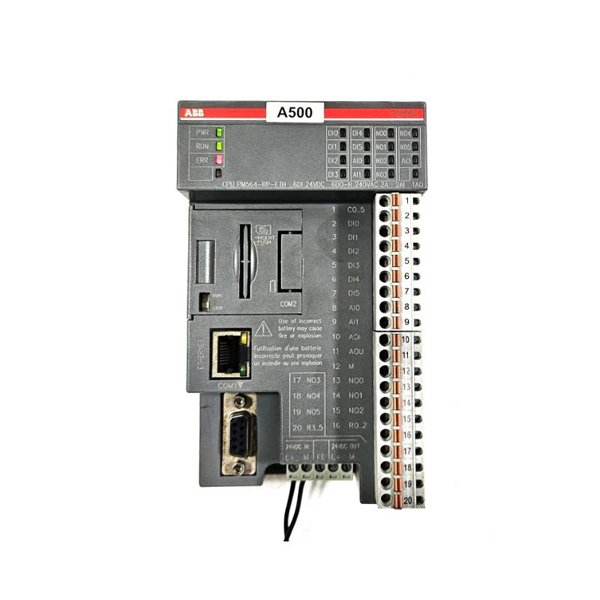

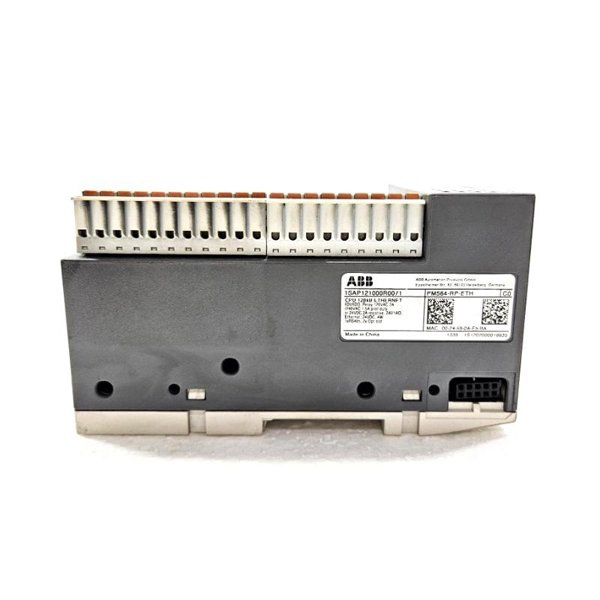

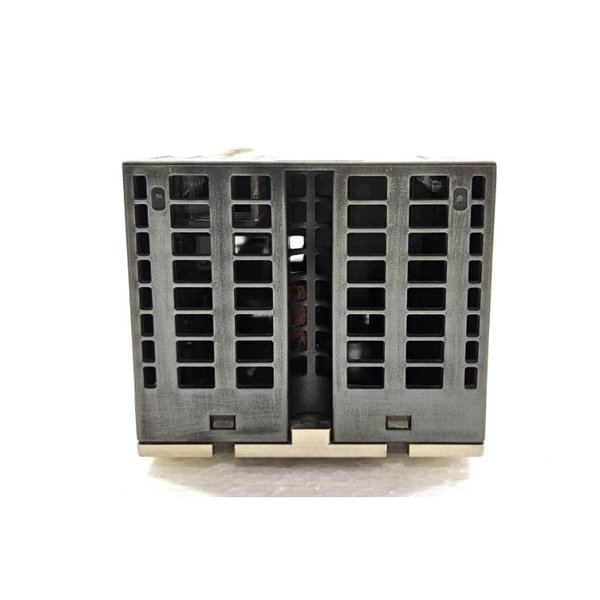

ABB PM564-RP-ETH 1SAP121000R0071 AC500 Programmable Logic Controller (PLC)
Manufacturer:ABB
Product Number:PM564-RP-ETH 1SAP121000R0071
Product Type:AC500 Programmable Logic Controller
Origin:Sweden (SE)
Dimensions:74 × 135 × 82 mm
Weight:0.295 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PM564-RP-ETH is a compact, robust PLC in the AC500-eCo series. It features relay outputs, analog I/Os, Ethernet communication, and a 24V DC power supply. Designed for industrial automation, it combines reliability, flexibility, and ease of integration for control tasks.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | ABB PM564-RP-ETH |
| Part Number | 1SAP121000R0071 |
| CPU | Freescale ARM 32-bit, 50 MHz |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR + 1 kB RETAIN + 1 kB %RB |
| Power Supply | 24 V DC |
| Current Consumption (typ.) | 120 mA |
| Digital Inputs | 6 |
| Digital Outputs | 6 Relay |
| Analog Inputs / Outputs | 2 AI / 1 AO |
| Communication Interfaces | Ethernet, RS-485 COM1 |
| Mounting | Horizontal / Vertical |
| Dimensions | 74 × 135 × 82 mm |
| Weight | 0.295 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Degree of Protection | IP20 |
Applications
-
Industrial automation and control
-
Machine building and packaging lines
-
HVAC and energy management systems
-
Process monitoring and distributed I/O networks
-
Remote monitoring and maintenance
Advantages
-
Compact design suitable for limited space installations
-
Integrated Ethernet interface for modern communication
-
Relay outputs for direct control of loads
-
Supports standard IEC 61131-3 programming languages
-
High electromagnetic compatibility and robust construction
-
Easy installation with DIN rail or screw mounting
FAQ
Q1: What is the power supply voltage of the PM564-RP-ETH?
A1: It operates on 24 V DC.
Q2: How many digital inputs and outputs are available?
A2: It provides 6 digital inputs and 6 relay digital outputs.
Q3: Does the controller support Ethernet communication?
A3: Yes, it has an onboard Ethernet interface.
Q4: What is the memory size of the CPU?
A4: The CPU has 128 kB program memory.
Q5: Can it be mounted vertically?
A5: Yes, both horizontal and vertical mounting are supported.
Q6: Is the unit suitable for high-vibration environments?
A6: Yes, it meets IEC 60068-2-6 and IEC 60068-2-27 standards for vibration and shock.
Q7: What type of processor is used?
A7: It uses a 32-bit Freescale ARM processor running at 50 MHz.
Q8: Does it include analog I/Os?
A8: Yes, it features 2 analog inputs and 1 analog output.
Q9: What programming languages are supported?
A9: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), and Continuous Function Chart (CFC).
Q10: What is the IP rating of the device?
A10: The device has an IP20 protection rating.
