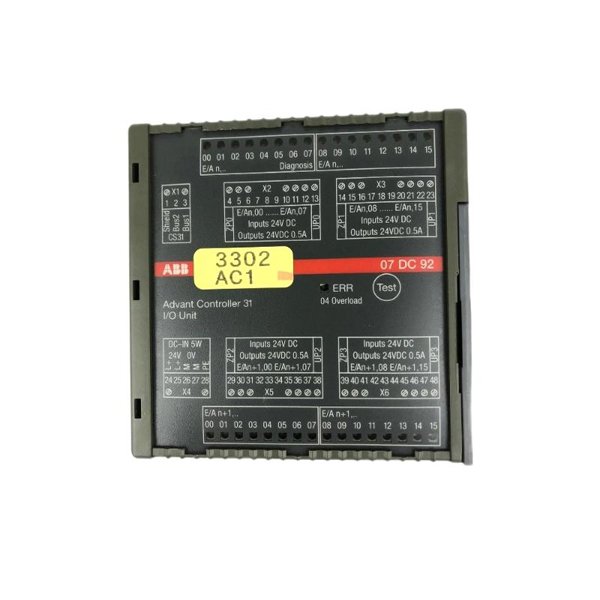

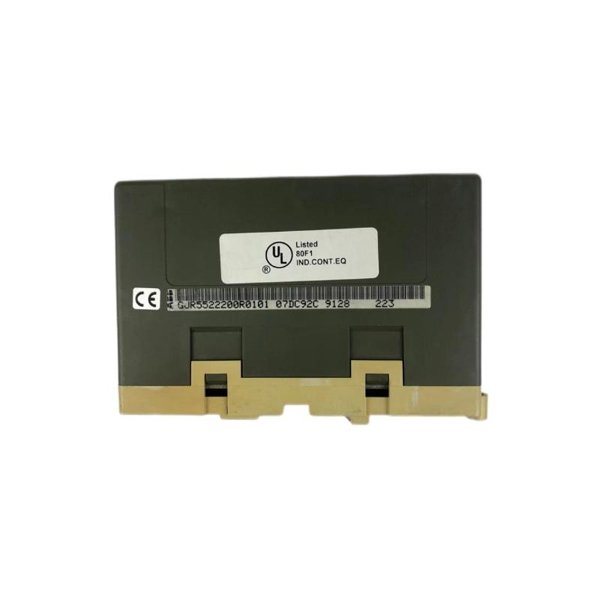

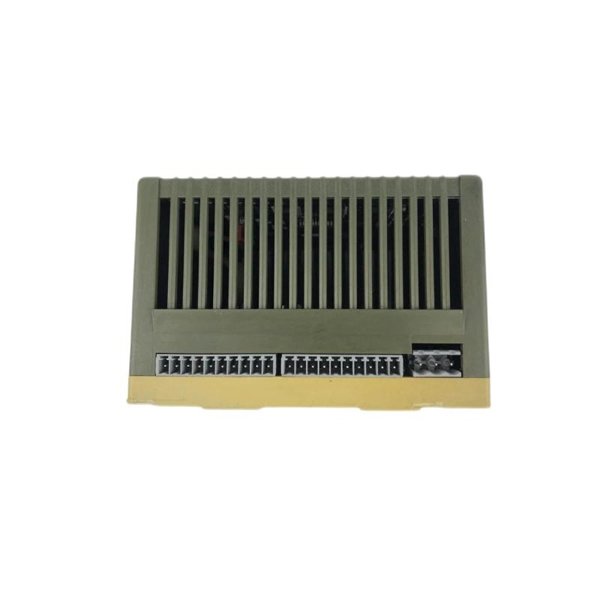

ABB 07DC92 GJR5522200R0101 Digital Input/Output Module

The ABB 07DC92 GJR5522200R0101 Digital Input/Output Module is a key component in ABB’s Advant Controller series. It is engineered for use in demanding industrial environments where accurate signal acquisition and robust digital output control are essential. This dual-function module provides both digital input and output capabilities, reducing the need for separate input/output modules and streamlining system architecture.

The 07DC92 module is specifically designed for interfacing with a variety of field devices such as proximity sensors, limit switches, actuators, and relays. It ensures reliable, real-time data acquisition and signal execution in high-performance automation tasks. Its robust design and high integration capability make it ideal for both central and remote I/O station installations in sectors like utilities, oil & gas, water treatment, and manufacturing.

Product Specifications

Applications

The ABB 07DC92 GJR5522200R0101 module is widely applied across industrial automation environments. Here are key sectors and uses:

• Power Generation Plants

  For digital status monitoring of circuit breakers, protective relays, and turbine interlocks.

• Oil & Gas Facilities

  Used for control of pumps, compressors, and emergency shutdown systems (ESD).

• Water and Wastewater Treatment

  To manage motorized valves, pumps, and digital sensors in treatment automation.

• Manufacturing & Assembly Lines

  For input from sensors and output to actuators, conveyors, and pneumatic devices.

• Chemical Processing

  Provides interfacing between control logic and field instruments like level switches or solenoid valves.

• Substations & Infrastructure

  Deployed in SCADA-connected systems for breaker status and auxiliary relay outputs.

Product Advantages

• Combined I/O Capability

  Integrated digital inputs and outputs in a single module saves panel space and cost.

• High Signal Integrity

  Optical isolation enhances signal reliability and protects control electronics.

• Fast Switching

  Low response time ensures real-time control capability in time-sensitive applications.

• Industrial-Grade Reliability

  Withstands harsh environments, electrical noise, and vibration with ease.

• Status Indicators

  Onboard LEDs provide quick diagnostics for maintenance and monitoring.

• Modular and Scalable

  Compatible with ABB’s modular Advant Controller system – easy to expand or modify.

• Low Power Consumption

  Efficient design supports energy-conscious automation architectures.

• Certified Compliance

  Meets global industrial standards including CE, UL, and RoHS.

FAQ

1. What is the purpose of combining both input and output functions in this module?

   → It reduces system complexity and saves space by eliminating the need for separate modules.

2. What type of output drivers does the 07DC92 use?

   → It uses short-circuit protected transistor outputs suitable for switching 24V DC loads.

3. Is this module suitable for use in safety-critical applications?

   → While robust, safety-critical applications require certified safety modules alongside this device.

4. Can I monitor the status of each channel on the front panel?

   → Yes, each channel has an LED indicator for real-time diagnostics.

5. How is this module typically mounted?

   → It can be mounted on a DIN rail or within a rack as part of the Advant system.

6. What happens if the output channel is overloaded or short-circuited?

   → The output is protected and will shut down the affected channel to prevent damage.

7. Can this module be used in remote I/O configurations?

   → Yes, it can function as a remote I/O module via ABB’s communication interfaces.

8. Is firmware upgrade necessary for this module?

   → No firmware updates are required; it operates on hardware-based logic.

9. How do I replace this module in an operating system?

   → Power down the system, remove the module from the rack or DIN rail, and insert the replacement. Ensure reconfiguration if needed.

10. Can this module interface with third-party PLCs?

    → Direct communication may be limited; however, with proper protocol converters, integration is possible.
