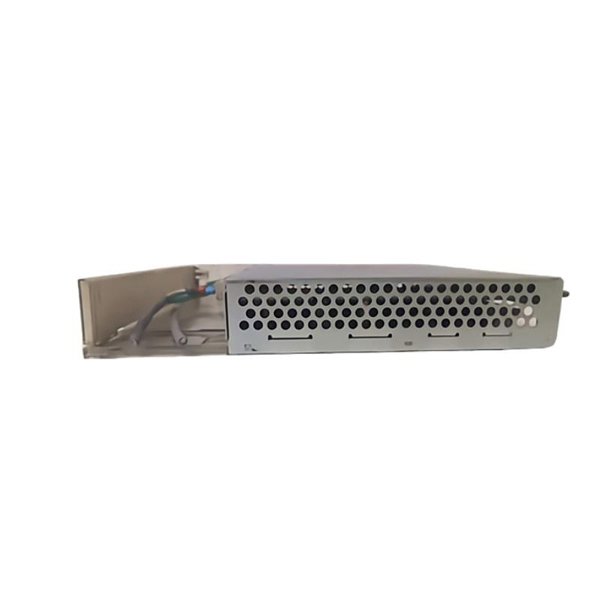

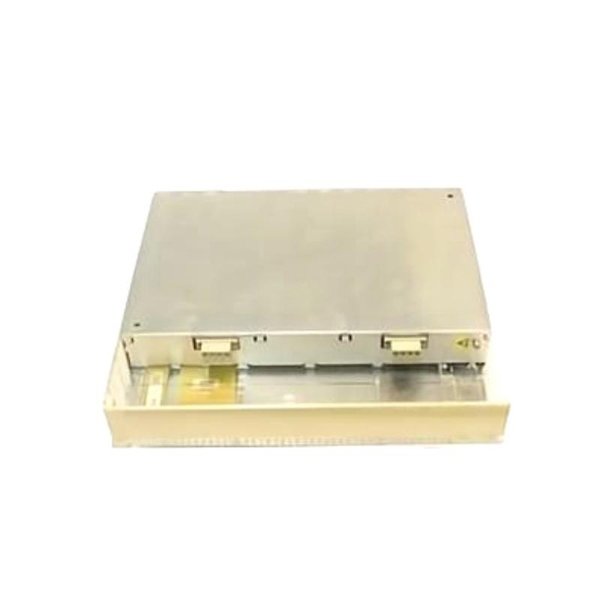

ABB CI627 3BSE009799R1 Communication Interface Module

The ABB CI627 3BSE009799R1 Communication Interface Module is a specialized industrial automation component designed to enable high-speed and reliable data exchange between controllers and external fieldbus devices. As part of ABB’s 800xA and AC 800M automation platforms, this module provides a robust interface to MODBUS RTU, allowing seamless integration of legacy and third-party devices into ABB’s process control environment.

The CI627 module is especially beneficial in scenarios requiring dependable data transfer across distributed control systems (DCS), where real-time communication and interoperability are paramount. With built-in support for serial communication over RS-485 and RS-232, the module helps bridge the gap between modern control systems and existing infrastructure, ensuring both performance and investment protection.

Product Specifications

Product Applications

The ABB CI627 module is designed to operate in demanding industrial automation environments where legacy device integration and reliable communication are required. Typical applications include:

• Oil and Gas: Facilitates MODBUS RTU communication with flow computers, sensors, and remote terminal units (RTUs).

• Power and Utilities: Supports integration of meters, protection relays, and other serial-based equipment.

• Manufacturing: Ideal for integrating older PLCs, sensors, and control panels into modern control systems.

• Chemical and Pharmaceutical Plants: Used for regulated environments requiring precise data acquisition.

• Water and Wastewater Treatment: Connects remote sensors and actuators over MODBUS RTU for SCADA applications.

• HVAC and Building Automation: Communicates with chillers, boilers, and other serial devices in plant systems.

Product Advantages

1. Seamless Legacy Integration: Enables older MODBUS RTU devices to communicate with ABB’s modern DCS architecture.

2. Dual Interface Flexibility: Supports both RS-232 and RS-485 interfaces for maximum compatibility.

3. High Reliability: Designed to ensure stable, error-free communication over long distances in harsh environments.

4. Compact Size: Slim DIN rail form factor fits easily into tight control cabinets.

5. Firmware Upgradability: Allows future enhancements and updates without hardware changes.

6. Integrated Diagnostics: Facilitates easier troubleshooting and proactive maintenance.

7. Low Power Consumption: Efficient design reduces energy costs and heat dissipation.

8. ABB Ecosystem Compatibility: Optimized for use within 800xA and AC 800M environments.

9. Durable Construction: Meets industrial-grade specifications for vibration, temperature, and humidity.

10. Easy Configuration: Setup and commissioning through ABB Control Builder or similar engineering tools.

Frequently Asked Questions (FAQ)

1. Q: What protocol does the CI627 support?

   A: It supports MODBUS RTU communication over RS-232 and RS-485 interfaces.

2. Q: Can the CI627 act as both Master and Slave?

   A: Yes, it is configurable to operate as a MODBUS Master or Slave.

3. Q: Is the CI627 compatible with ABB AC 800M controllers?

   A: Yes, it integrates seamlessly with the AC 800M platform and 800xA system.

4. Q: What type of devices can be connected using this module?

   A: Flow meters, protection relays, temperature sensors, and other MODBUS RTU-compatible devices.

5. Q: Does the CI627 require external configuration software?

   A: It is configured using ABB’s Control Builder engineering software.

6. Q: What is the primary advantage of RS-485 support?

   A: RS-485 allows long-distance communication and connection of multiple devices on a single bus.

7. Q: What is the maximum number of MODBUS devices that can be connected?

   A: Up to 32 devices can typically be connected on a single RS-485 bus segment.

8. Q: Can I monitor the status of the CI627 in real time?

   A: Yes, real-time diagnostics and communication status are available.

9. Q: Is the CI627 module hot-swappable?

   A: Hot-swapping depends on the controller setup and redundancy architecture.

10. Q: What certifications does the CI627 comply with?

    A: The module is CE, RoHS, UL, and CSA certified for global use.
