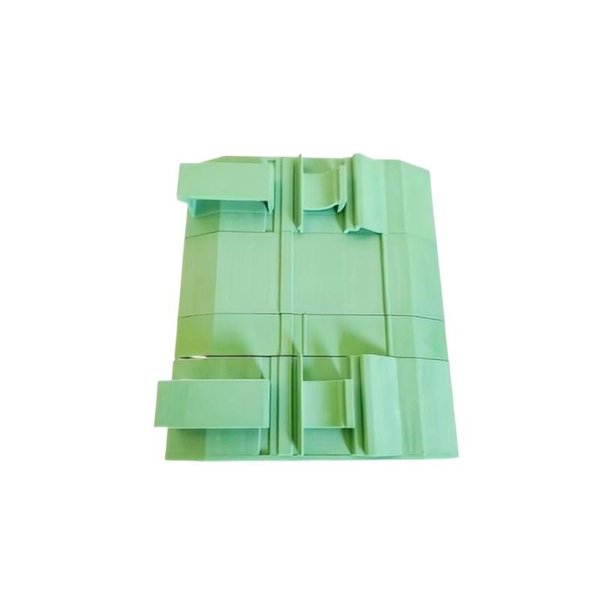

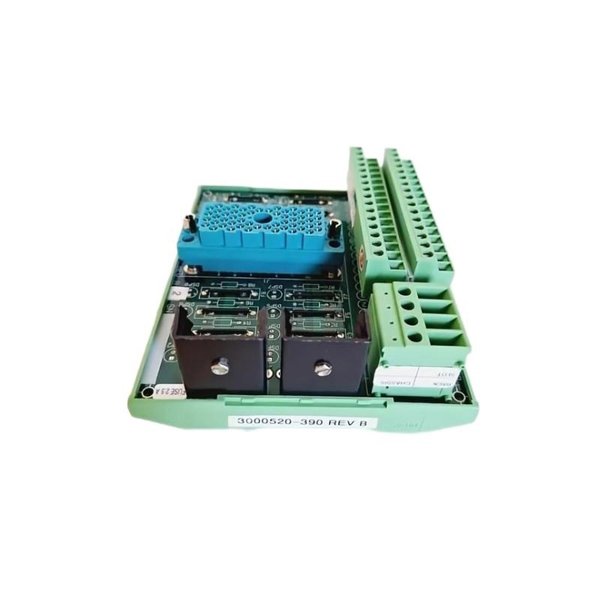

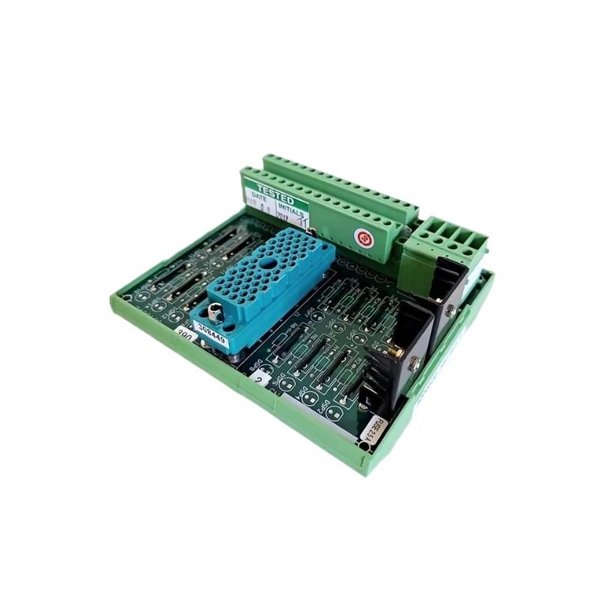

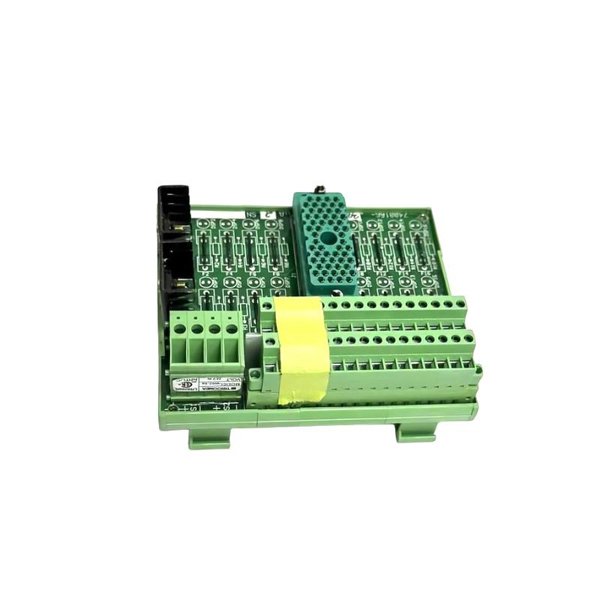

Triconex 9662-610 7760050028 DO Term Panel

The Triconex 9662-610 7760050028 DO Term Panel is a specialized digital output termination panel designed for use within Triconex safety and control systems. This panel plays a critical role in connecting digital output signals from the Triconex processing units to field devices such as actuators, relays, and valves. Engineered with the highest safety and reliability standards, it supports the rigorous demands of safety instrumented systems (SIS) commonly found in process industries.

Manufactured by Schneider Electric under the Triconex brand, the 9662-610 model is built to ensure secure signal termination, fault isolation, and easy field wiring. The panel’s robust construction and precise design help maintain system integrity while simplifying maintenance and troubleshooting.

Product Specifications

Product Applications

The 9662-610 DO Term Panel is widely used in industries that require high-reliability safety control systems:

• Oil & Gas: Controls actuators and valves in safety shutdown systems and process control.

• Chemical Processing: Manages digital outputs for emergency shutdown (ESD) systems.

• Power Generation: Interfaces digital signals for turbine trip and protection systems.

• Pharmaceutical Manufacturing: Provides secure signal termination for batch process automation.

• Nuclear Power: Critical digital output interfacing in safety-related control systems.

• Refineries: Ensures precise and reliable output signal termination for flare control and other safety functions.

Product Advantages

• High Reliability: Designed specifically for safety instrumented systems, meeting stringent SIL 3 requirements.

• Robust Construction: Durable materials and solid build quality ensure long-term operational stability.

• Ease of Installation: Standard 19” rack or panel mounting facilitates integration into existing control environments.

• Simplified Maintenance: Clearly labeled terminals and organized wiring simplify troubleshooting and maintenance.

• Fault Isolation: Terminal design supports easy fault detection and isolation without disturbing the entire system.

• Wide Compatibility: Supports digital output signals from various Triconex modules and interfaces smoothly with field devices.

• Certified Safety Standards: Compliance with IEC 61508 and IEC 61511 ensures adherence to international safety guidelines.

• Optimized Dimensions: Compact design balances space-saving with accessibility.

• Stable Electrical Performance: Maintains signal integrity under industrial environmental stresses.

• Global Support: Backed by Schneider Electric’s worldwide service and support network.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Triconex 9662-610 DO Term Panel?

   It terminates and interfaces digital output signals between Triconex controllers and field devices.

2. How many digital output channels does this panel support?

   Typically, it supports 16 digital output channels.

3. Can the panel be mounted in standard racks?

   Yes, it is designed for 19-inch rack or panel mounting.

4. What safety certification does the 9662-610 panel have?

   It is certified to meet SIL 3 requirements under IEC 61508 and IEC 61511 standards.

5. What is the operating temperature range of this panel?

   It operates reliably between 0°C and 60°C.

6. Is this panel compatible with all Triconex digital output modules?

   Yes, it supports digital outputs from most Triconex processing units.

7. What is the nominal voltage rating for the panel’s output signals?

   Nominally, it is rated for 24 V DC.

8. How does the panel aid in system maintenance?

   By providing clearly labeled terminals and organized wiring, it simplifies troubleshooting and repairs.

9. What is the weight and size of the panel?

   The panel weighs 0.38 kg and measures 114.3 ×127 × 107.95 mm.

10. Does the panel support fault isolation?

    Yes, its terminal design allows faults to be isolated without affecting other circuits.
