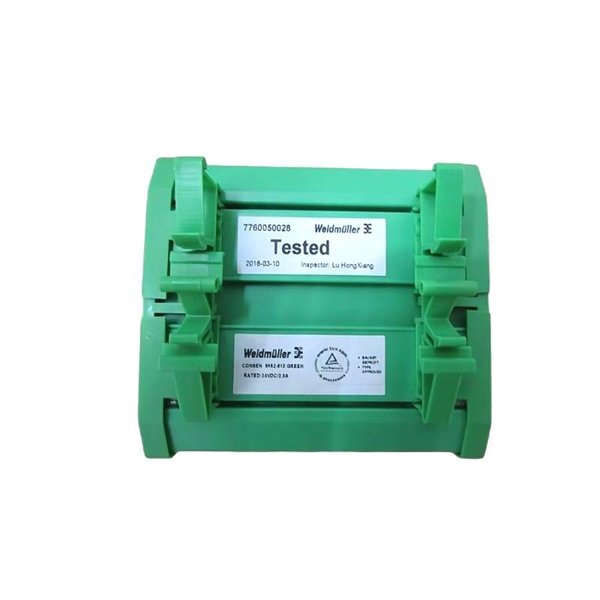

The Triconex 9662-810 3000520-380 is a high-performance digital output termination panel engineered for integration with Triconex safety instrumented systems (SIS). Designed to provide reliable and secure connections between Triconex controller modules and field devices, this panel ensures the safe and efficient operation of critical industrial processes. Its robust construction and compliance with international safety standards make it suitable for use in demanding environments such as oil and gas, power generation, and chemical processing industries.

Product Specifications

Product Applications

The Triconex 9662-810 3000520-380 is utilized across various industries for its reliability and safety features:

• Oil & Gas: Controls actuators and valves in emergency shutdown systems and process control.

• Power Generation: Interfaces digital signals for turbine trip and protection systems.

• Chemical Processing: Manages digital outputs for safety interlocks and automated processes.

• Pharmaceutical Manufacturing: Provides secure signal termination for batch process automation.

• Nuclear Power: Critical digital output interfacing in safety-related control systems.

• Refineries: Ensures precise and reliable output signal termination for flare control and other safety functions.

Product Advantages

• High Reliability: Designed for safety instrumented systems, meeting stringent SIL 3 requirements.

• Robust Construction: Durable materials and solid build quality ensure long-term operational stability.

• Ease of Installation: Standard DIN rail or panel mounting facilitates integration into existing control environments.

• Simplified Maintenance: Clearly labeled terminals and organized wiring simplify troubleshooting and maintenance.

• Fault Isolation: Terminal design supports easy fault detection and isolation without disturbing the entire system.

• Wide Compatibility: Supports digital output signals from various Triconex modules and interfaces smoothly with field devices.

• Certified Safety Standards: Compliance with CE, UL, and ATEX ensures adherence to international safety guidelines.

• Optimized Dimensions: Compact design balances space-saving with accessibility.

• Stable Electrical Performance: Maintains signal integrity under industrial environmental stresses.

• Global Support: Backed by Schneider Electric’s worldwide service and support network.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Triconex 9662-810 3000520-380?

   It serves as a digital output termination panel, facilitating secure connections between Triconex controllers and field devices.

2. How many digital output channels does this panel support?

   It supports 16 digital output channels.

3. Can the panel be mounted on a DIN rail?

   Yes, it is designed for DIN rail or panel mounting.

4. What safety certifications does the panel have?

   It is CE, UL certified, ATEX Zone 0/1 compliant, and meets SIL 3 safety standards.

5. What is the operating temperature range of the panel?

   The panel operates reliably between -40°C and +85°C.

6. Is this panel compatible with all Triconex digital output modules?

   Yes, it is compatible with various Triconex digital output modules.

7. What is the nominal voltage rating for the panel’s output signals?

   The panel is rated for 24 V DC output signals.

8. How does the panel aid in system maintenance?

   It features clearly labeled terminals and organized wiring, simplifying troubleshooting and maintenance.

9. What are the panel’s physical dimensions and weight?

   Dimensions: 114.3 ×127 × 107.95 mm; Weight: 0.38 kg.

10. Does the panel support fault isolation?

    Yes, its terminal design allows for fault isolation without affecting other circuits.
